Front Wiring Harness, OOS, PowrReverser™ Plus (5/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9919	1	Elec. Connector Accessory	-
1	57M8300	10	Elec. Connector Terminal	Cavity A - D, J - M, R, S
1	57M8299	4	Elec. Connector Terminal	Cavity E, G, H, N
1	57M8321	10	Elec. Connector Terminal	Cavity A - D, J - M, R, S
1	57M9223	4	Elec. Connector Seal	Cavity E, G, H, N
1	57M9446	2	Elec. Connector Seal	Cavity F, P
1	57M8484	1	Elec. Connector Housing	Instrumentation J1 A01 - D
2	57M9776	1	Elec. Connector Housing	Cab Can Terminator R2
2	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
3	57M11134	1	Elec. Connector Housing	-
4	57M7953	1	Electrical Connector Assy	Foot Throttle B32
4	57M9180	3	Elec. Connector Terminal	Cavity 1, 2, 4
4	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 4
4	57M7956	3	Elec. Connector Terminal	Cavity 3, 5, 6
5	57M7894	3	Elec. Connector Terminal	Single Point Ground Stud
6	RE538505	1	Elec. Connector Accessory	ECU Controller
6	57M9814	32	Elec. Connector Cavity Plug	Cavity 3 - 6, 8, 15, 18 - 22, 25, 26, 29 - 31, 33, 35, 37 - 42, 45 - 48, 51 - 54
6	57M10321	11	Elec. Connector Terminal	Cavity 12, 13, 14, 16, 17, 23, 24, 27, 43, 44, 50
6	57M10319	1	Elec. Connector Terminal	Cavity 11
6	57M9808	10	Elec. Connector Terminal	Cavity 1, 2, 7, 9, 10, 28, 32, 36, 49
7	R528122	1	Elec. Connector Accessory	-
8	57M7762	1	Electrical Connector Assy	Engine Harness X5074
8	57M10916	1	Elec. Connector Terminal	Cavity 1
9	L78202	1	Elec. Connector Housing	Key Switch S01
10	57M7840	1	Elec. Connector Housing	FNR Switch S14
10	57M7469	1	Electrical Connector Assy	-
10	57M7494	4	Elec. Connector Terminal	Cavity A - D
10	57M9215	4	Elec. Connector Seal	Cavity A - D
11	57M8866	1	Elec. Connector Terminal	Chassis Ground
12	R78069	3	Elec. Connector Cavity Plug	-
12	57M8164	3	Elec. Connector Terminal	Cavity 1, 2, 3
12	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch S35
12	57M7678	1	Elec. Connector Terminal	Cavity 4, 5, 6
13	57M9835	1	Elec. Connector Housing	Instrumentation J2 A01 - E
13	57M10201	1	Elec. Connector Accessory	-
13	57M8300	5	Elec. Connector Terminal	Cavity E, F, G, H, J
13	57M8299	2	Elec. Connector Terminal	Cavity M, N
13	57M8321	5	Elec. Connector Terminal	Cavity E, F, G, H, J
13	57M9223	2	Elec. Connector Seal	Cavity M, N
13	57M9446	7	Elec. Connector Seal	Cavity A - D, K, L, P
14	57M8996	1	Elec. Connector Terminal	Audible Alarm 2 H18-B
15	57M8873	3	Elec. Connector Terminal	Start Relay
16	57M10497	1	Elec. Connector Housing	Start Relay Control K18-D
16	R104919	2	Elec. Connector Terminal	Cavity 1, 2
16	57M7258	2	Elec. Connector Seal	Cavity 1, 2
17	57M7494	6	Elec. Connector Terminal	Cavity A - F
17	57M9215	6	Elec. Connector Seal	Cavity A - F
17	57M7260	1	Elec. Connector Housing	Clutch Assembly B13 / S15
17	57M7291	1	Electrical Connector Assy	-
18	57M7183	1	Elec. Connector Accessory	Turn Signal Switch S43
19	R77480	1	Electrical Connector Assy	Horn Switch S05
19	57M9199	2	Elec. Connector Terminal	Cavity 1, 2
20	57M7290	2	Elec. Connector Accessory	-
20	57M9215	3	Elec. Connector Seal	Cavity A, B, C
20	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
20	57M7259	3	Elec. Connector Seal	-
20	57M7257	1	Elec. Connector Housing	-
20	57M7255	1	Elec. Connector Housing	Power Shuttle Control B21
21	57M7985	1	Electrical Connector Assy	Roll Mode Switch S36
21	57M9712	1	Elec. Connector Accessory	-
21	R104919	2	Elec. Connector Terminal	Cavity A, B
21	57M9215	2	Elec. Connector Seal	Cavity A, B
22	57M8996	1	Elec. Connector Terminal	Audible Alarm 1 H18-A
23	SJ40738	1	Wiring Harness	-

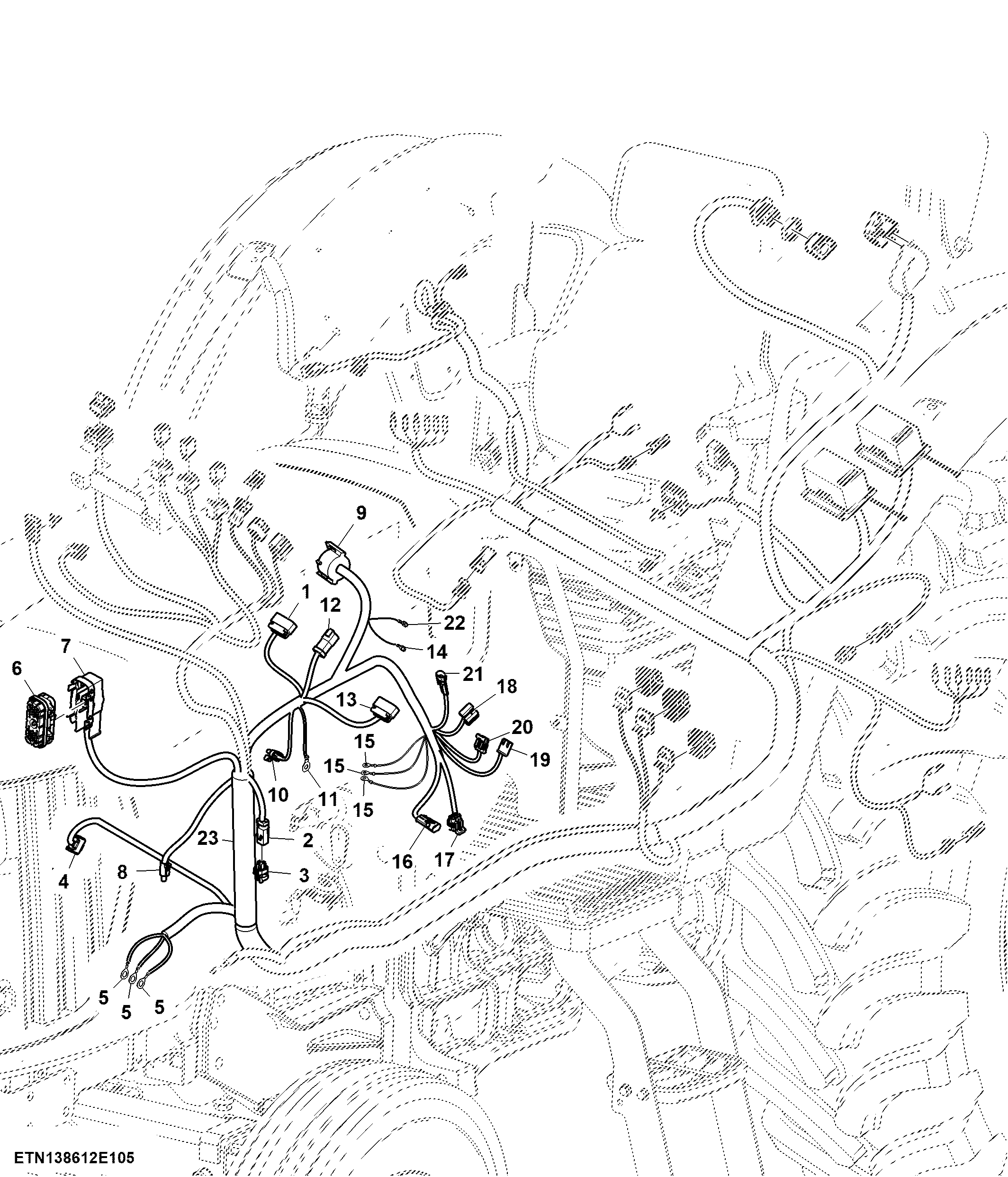

Front Wiring Harness, OOS, PowrReverser™ Plus (5/5)

Нет текстового описания
