Front Console Wiring Harness, PowrReverser™ Plus, Cab (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7825	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
1	57M8761	1	Elec. Connector Housing	Front Wiper Motor M05
2	57M8872	1	Elec. Connector Terminal	Front Wiper Motor Ground
3	57M8070	1	Elec. Connector Housing	Cab Connector 3 X033B
3	57M8943	1	Elec.Connect Locking Device	-
3	57M8076	1	Elec. Connector Terminal	-
3	57M8732	9	Elec. Connector Terminal	Cavity 3, 8, 9, 13, 14, 17, 18, 21, 22
3	57M7399	5	Elec. Connector Seal	Cavity 1, 5, 6, 7, 10
3	57M8515	9	Elec. Connector Seal	Cavity 3, 8, 9, 13, 14, 17, 18, 21, 22
3	57M7259	10	Elec. Connector Seal	Cavity 2, 4, 11, 12, 15, 16, 19, 20, 23, 24
4	57M8300	10	Elec. Connector Terminal	Cavity B, D, E, F, G, K, L, N, P, R
4	57M9446	1	Elec. Connector Seal	Cavity M
4	57M8321	10	Elec. Connector Terminal	Cavity B, D, E, F, G, K, L, N, P, R
4	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
4	57M8304	4	Elec. Connector Terminal	Cavity A, H, J, S
4	57M11996	1	Elec. Connector Accessory	-
4	57M8156	1	Elec. Connector Housing	Cab Connector 1 X031B
5	57M10717	1	Elec. Connector Housing	Cab Connector 2 X032B
5	57M9919	1	Elec. Connector Accessory	-
5	57M8301	8	Elec. Connector Terminal	Cavity A, C, D, E, J, K, L, P
5	57M9539	2	Elec. Connector Terminal	Cavity G, M
5	57M8323	4	Elec. Connector Terminal	Cavity A, C, G, M
5	57M8321	6	Elec. Connector Terminal	Caviity D, E, J, K, L, P
5	57M9446	6	Elec. Connector Seal	Cavity B, F, H, N, R, S
6	57M8868	1	Elec. Connector Terminal	-
7	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M7252	2	Elec. Connector Terminal	Cavity A, B
7	57M7256	1	Elec. Connector Housing	Connect Start Relay K18
7	57M7289	1	Elec.Connect Locking Device	-
8	57M8871	3	Elec. Connector Terminal	-
9	57M10497	1	Elec. Connector Housing	-
10	57M7985	1	Electrical Connector Assy	Roll Mode Switch S36
10	57M7289	1	Elec.Connect Locking Device	-
10	57M7495	2	Elec. Connector Terminal	Cavity A, B
10	57M9215	2	Elec. Connector Seal	Cavity A, B
11	57M7255	1	Elec. Connector Housing	Shuttle Control Switch B21
11	57M7290	1	Elec. Connector Accessory	-
11	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
11	57M9215	3	Elec. Connector Seal	Cavity A, B, C
12	57M9776	1	Elec. Connector Housing	Can Terminator
12	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
13	57M11134	1	Elec. Connector Housing	-
14	57M9835	1	Elec. Connector Housing	Instrument Cluster J2 A01
14	57M10201	1	Elec. Connector Accessory	-
14	57M8300	6	Elec. Connector Terminal	Cavity A, B, F, G, H, J
14	57M8299	3	Elec. Connector Terminal	Cavity E, M, N
14	57M8321	6	Elec. Connector Terminal	Cavity A, B, F, G, H, J
14	57M9223	3	Elec. Connector Seal	Cavity E, M, N
14	57M9446	5	Elec. Connector Seal	Cavity C, D, K, L, P
15	57M8484	1	Elec. Connector Housing	Instrument Cluster J1
15	57M9919	1	Elec. Connector Accessory	-
15	57M8300	9	Elec. Connector Terminal	Cavity A - E, J, M, R, S
15	57M8299	5	Elec. Connector Terminal	Cavity G, H, K, L, N
15	57M8321	9	Elec. Connector Terminal	Cavity A - E, J, M, R, S
15	57M9223	5	Elec. Connector Seal	Cavity G, H, K, L, N
15	57M9446	2	Elec. Connector Seal	Cavity F, P

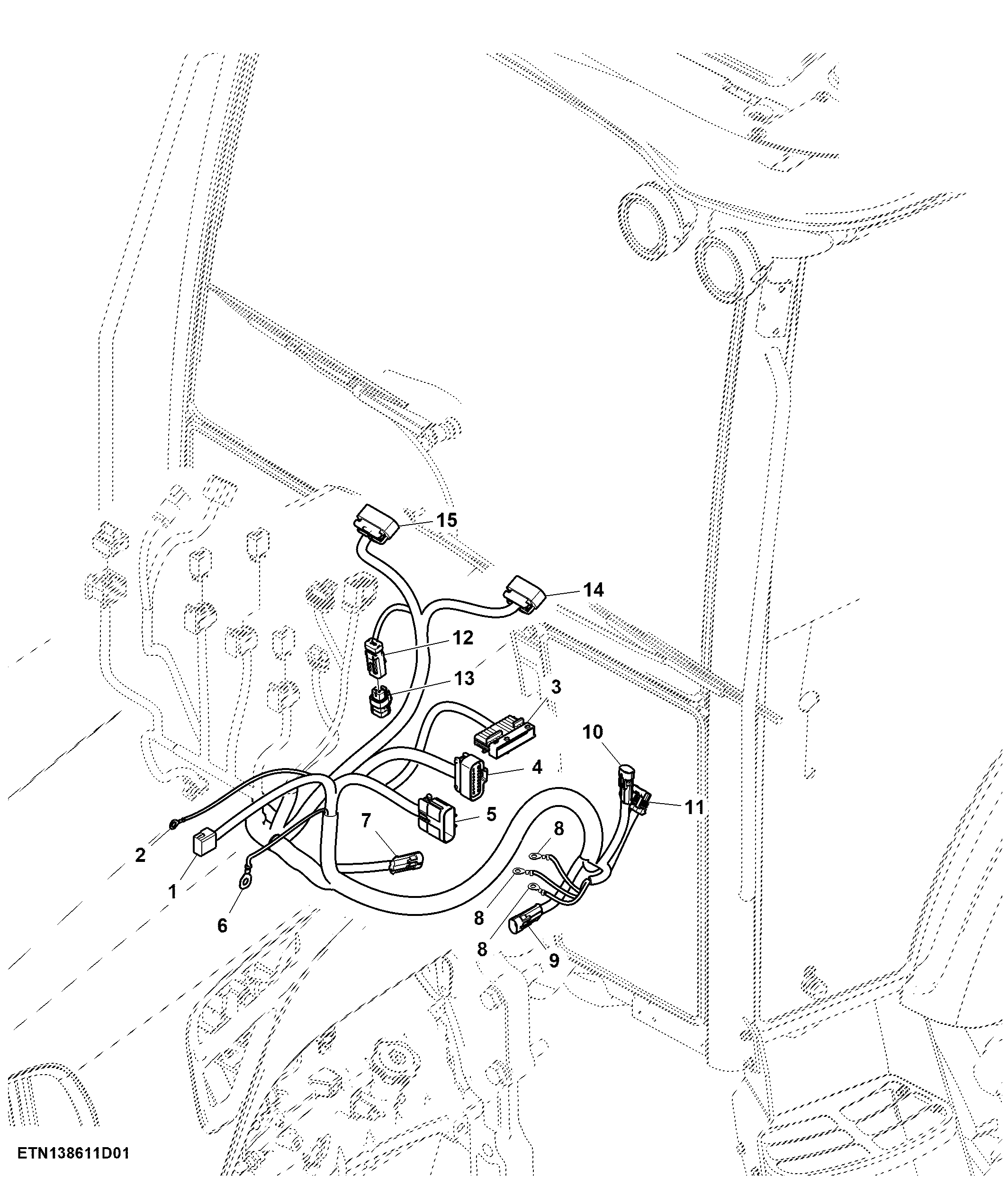

Front Console Wiring Harness, PowrReverser™ Plus, Cab (1/2)
