WIRING HARNESS, HITCH DRAFT SENSOR, ELECTRO-HYDRAULIC (EH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE263830	1	Sensor Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Draft Sensor 05
2	57M7317	1	Elec. Connector Accessory	-
2	57M7494	1	Elec. Connector Terminal	-
2	57M9215	1	Elec. Connector Seal	-
3	R112629	1	Plug	-
4	R56461	1	O-Ring	-
5	57M8903	1	Clip	-
6	57M9215	8	Elec. Connector Seal	Cavity A - H
6	57M7494	8	Elec. Connector Terminal	Cavity A - H
6	57M7296	1	Elec. Connector Accessory	-
6	57M7261	1	Elec. Connector Housing	Cab / Chasis Interconnect 01
7	RE12364	1	Electrical Connector Assy	Hitch Position Sensor 02
7	57M7251	3	Elec. Connector Terminal	Cavity A, B, C
7	57M9219	3	Elec. Connector Seal	Cavity A, B, C
8	57M7254	1	Elec. Connector Housing	Hitch Lower Solenoid 03
8	57M7289	1	Elec.Connect Locking Device	-
8	57M7494	2	Elec. Connector Terminal	Cavity A, B
8	57M9215	2	Elec. Connector Seal	Cavity A, B
9	57M7254	1	Elec. Connector Housing	Hitch Raise Solenoid 04
9	57M7289	1	Elec.Connect Locking Device	-
9	57M7494	2	Elec. Connector Terminal	Cavity A, B
9	57M9215	2	Elec. Connector Seal	Cavity A, B

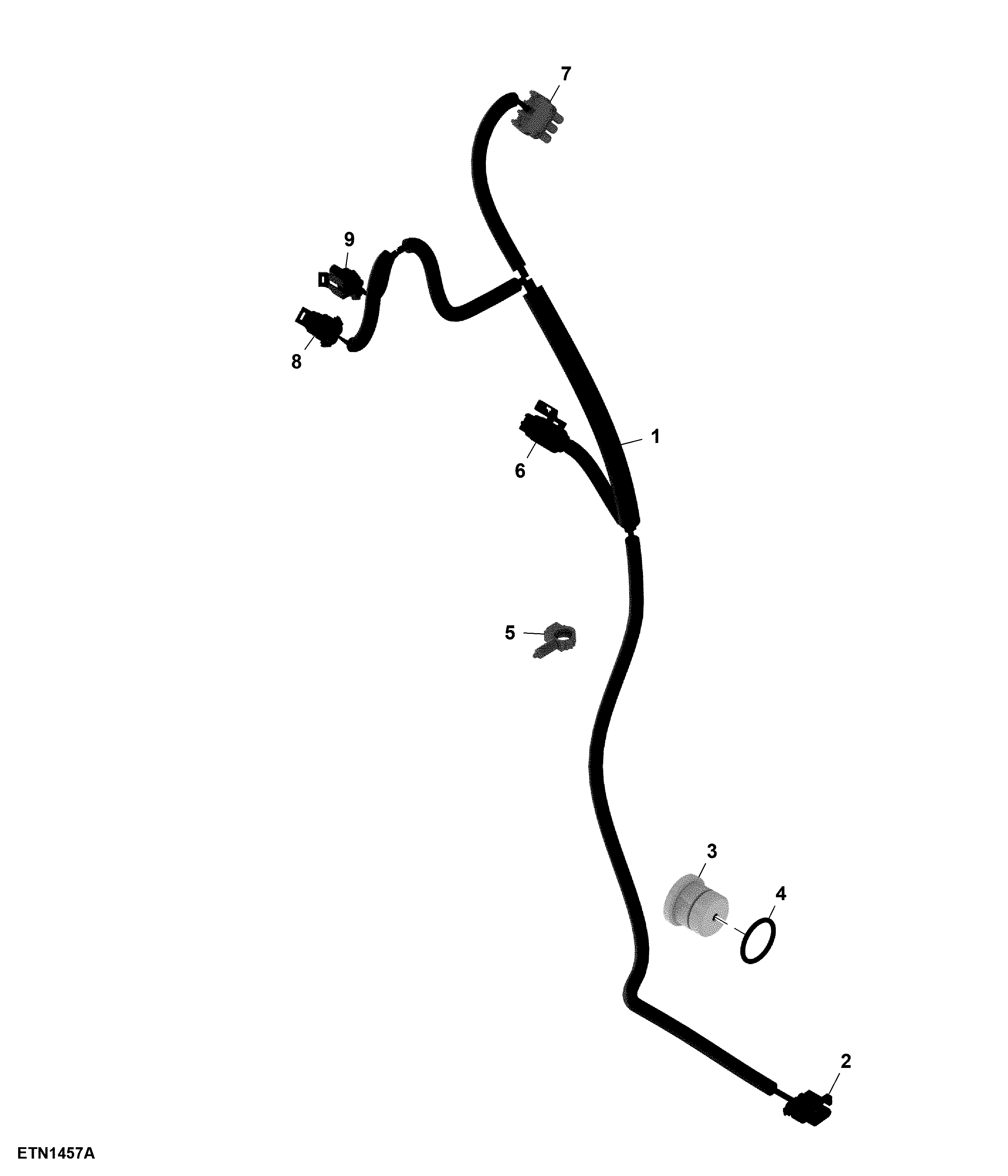

WIRING HARNESS, HITCH DRAFT SENSOR, ELECTRO-HYDRAULIC (EH)
