Power Train Housing, Secondary Brake, European Version (Syncshuttle)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R260631	1	Plug	-
2	30M7007	4	Plug	-
3	19M7826	18	Screw	M16 X 70
4	R287414	1	Orifice	-
5	R262353	1	Gasket	-
6	SJ13084	1	Housing	SUB FORR272330
7	44M7154	10	Dowel Pin	-
8	R111493	1	Fitting Plug	-
9	SU31863	1	Cover	SUB FOR SU26167 AND SU291215
9	SU31857	1	Cover	SUB FOR SU22550
10	19M9106	3	Screw	M10 X 40
11	R274014	1	Support	-
12	R242560	4	Bushing	-
13	15M7078	1	Drain Plug	-
14	51M7047	1	O-Ring	23.600 X 2.900 mm
15	RE276699	1	Housing	(INCLUDES R242560, R258373 AND 19M9892)
15	SJ10878	1	Housing	(INCLUDES R242560, R258373 AND 19M9892)
16	R261287	1	Cover	-
17	RE46716	1	Fitting	-
18	P47889	1	O-Ring	-
19	R262621	1	Spacer	-
20	51M7041	1	O-Ring	11.300 X 2.200 mm
21	19M9019	6	Screw	M10 X 70
22	19M7867	3	Screw	M8 X 25
23	19M7791	4	Bolt	M12 X 40
24	R202761	1	Screw	-
25	RE285154	1	Support	SUB FOR SJ14231(INCLUDES AT107510)
25	SJ11761	1	Support	(INCLUDES AT107510)
26	RE280823	1	Sensor	-
27	R261136	1	Plug	-
28	RE46684	1	Fitting Plug	-
29	R98012	1	Fitting Plug	-
30	R258373	1	Bearing Cap	-
31	19M9892	2	Screw	M10 X 85
32	19M7775	12	Screw	M6 X 16
33	51M7044	1	O-Ring	17.300 X 2.200 mm
34	R26448	1	O-Ring	-
35	RE12411	1	Switch	NEUTRAL START
35	MIA881067	1	Switch	-
36	RE280822	1	Sensor	Top Shaft Speed Sensor
37	R287414	1	Orifice	-
38	AT107510	1	Plug	-
39	T77613	1	O-Ring	-
40	SU290136	1	Adapter Fitting	-

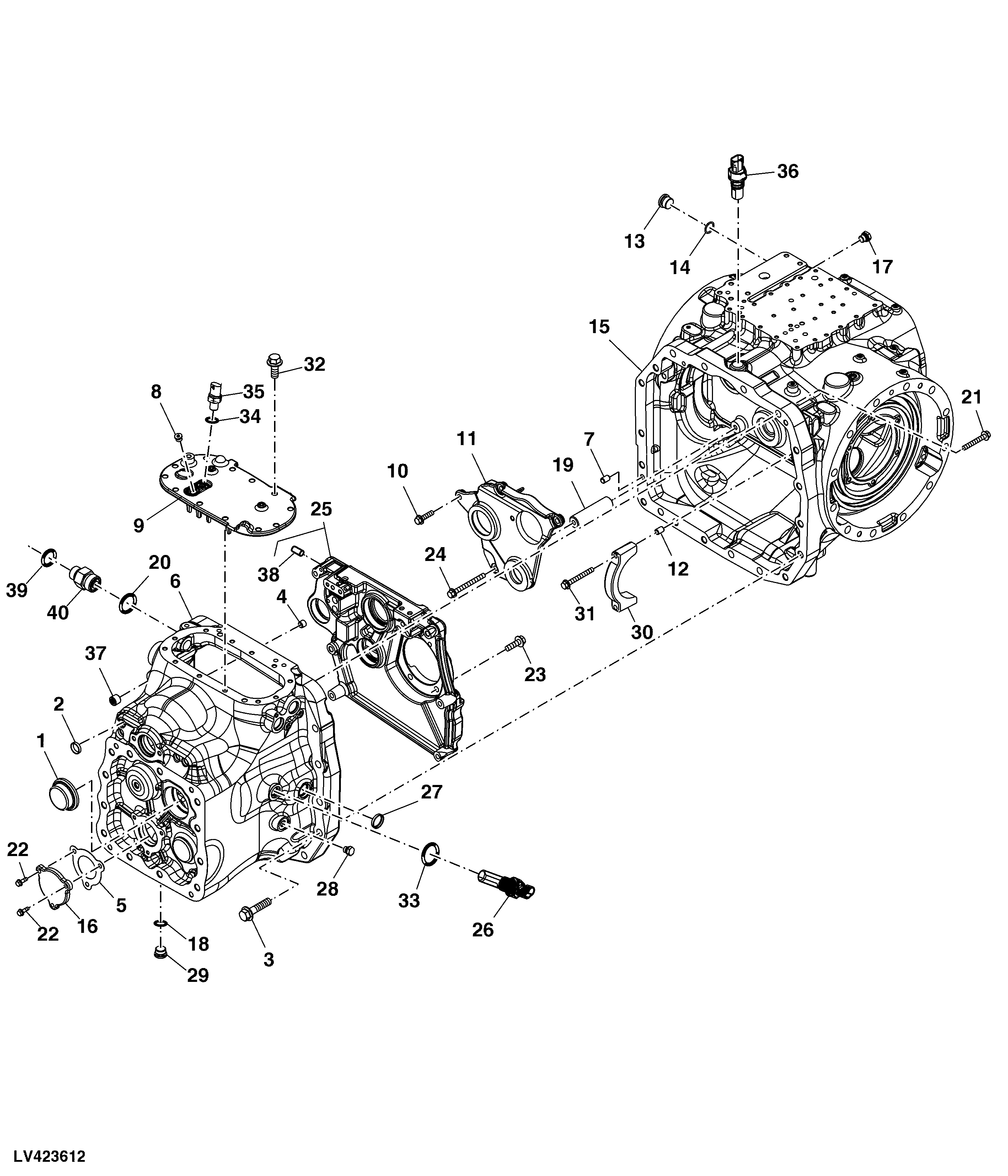

Power Train Housing, Secondary Brake, European Version (Syncshuttle)
