PLATFORM WIRING HARNESS, POWRREVERSER PTM, (PR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ299147	1	Wiring Harness	ORDER SJ19295
2	57M8484	1	Elec. Connector Housing	-
3	57M7260	5	Elec. Connector Housing	-
4	57M7262	1	Elec. Connector Housing	-
5	57M7255	4	Elec. Connector Housing	-
6	57M7840	1	Elec. Connector Housing	-
7	57M7839	1	Electrical Connector Assy	-
8	57M7263	1	Elec. Connector Housing	-
9	57M7261	4	Elec. Connector Housing	-
10	57M8279	2	Elec. Connector Housing	-
11	57M7256	1	Elec. Connector Housing	-
12	57M8996	2	Elec. Connector Terminal	-
13	57M8815	6	Elec. Connector Housing	SUB FOR T28583
14	RE46736	1	Electrical Connector Assy	-
15	19M7865	5	Screw	M8 X 16
16	57M8866	1	Elec. Connector Terminal	-
17	R255312	1	Bracket	-
18	14M7297	2	Nut	M5
19	Z61311	2	Elec. Connector Housing	-
20	57M9880	2	Relay	SUB FOR 57M8853
21	14M7152	2	Nut	M10
22	RE207311	2	Electronic Control Unit	-
23	R77480	1	Electrical Connector Assy	-
24	57M7183	1	Elec. Connector Accessory	-
25	R112653	2	Grommet	-
26	57M8873	3	Elec. Connector Terminal	-
27	57M9412	1	Clamp	SUB FOR 57M8832
28	57M9432	1	Clamp	SUB FOR 57M8856
29	14M7298	4	Flange Nut	M8
30	SU299952	1	Bracket	-
31	57M7328	2	Elec. Connector Housing	-
32	57M8909	2	Clip	-
33	R266722	1	Bracket	-
34	R273101	1	Clamp	-
35	R266718	3	Clamp	-
36	57M7257	2	Elec. Connector Housing	-
37	57M9429	1	Clamp	SUB FOR 57M8836
38	57M9425	1	Clamp	(SUB FOR 57M8833)
39	57M8827	1	Clamp	-
40	19M7775	1	Screw	M6 X 16
41	14M7303	9	Flange Nut	M6
42	03M7221	8	Bolt	M6 X 16
43	14M7194	8	Nut	M6
44	57M7254	1	Elec. Connector Housing	-
45	57M7256	1	Elec. Connector Housing	-
46	57M7264	2	Elec. Connector Housing	-
47	57M8280	1	Elec. Connector Housing	-
48	L116273	1	Elec. Connector Accessory	-
49	57M10605	1	Elec. Connector Housing	SUB FOR 57M8519
50	57M10615	1	Elec. Connector Housing	SUB FOR 57M8527
51	57M10606	1	Elec. Connector Housing	SUB FOR 57M8523
52	57M10604	2	Elec. Connector Housing	SUB FOR 57M8528
53	57M8529	1	Electrical Connector Cap	-
54	SJ290320	1	Electronic Control Unit	-
55	57M9190	2	Clip	-
56	RE217864	1	Cap	-
57	57M9183	1	Elec. Connector Housing	-
58	57M9182	1	Nut	-
59	RE186986	1	Junction Block	-
60	19M7502	2	Cap Screw	M5 X 25
61	14M7375	2	Flange Nut	M5
62	24M7027	2	Washer	5.300 X 10 X 1 mm
63	57M8871	1	Elec. Connector Terminal	-
64	57M8875	2	Elec. Connector Terminal	-
65	RE262484	1	Diode	-

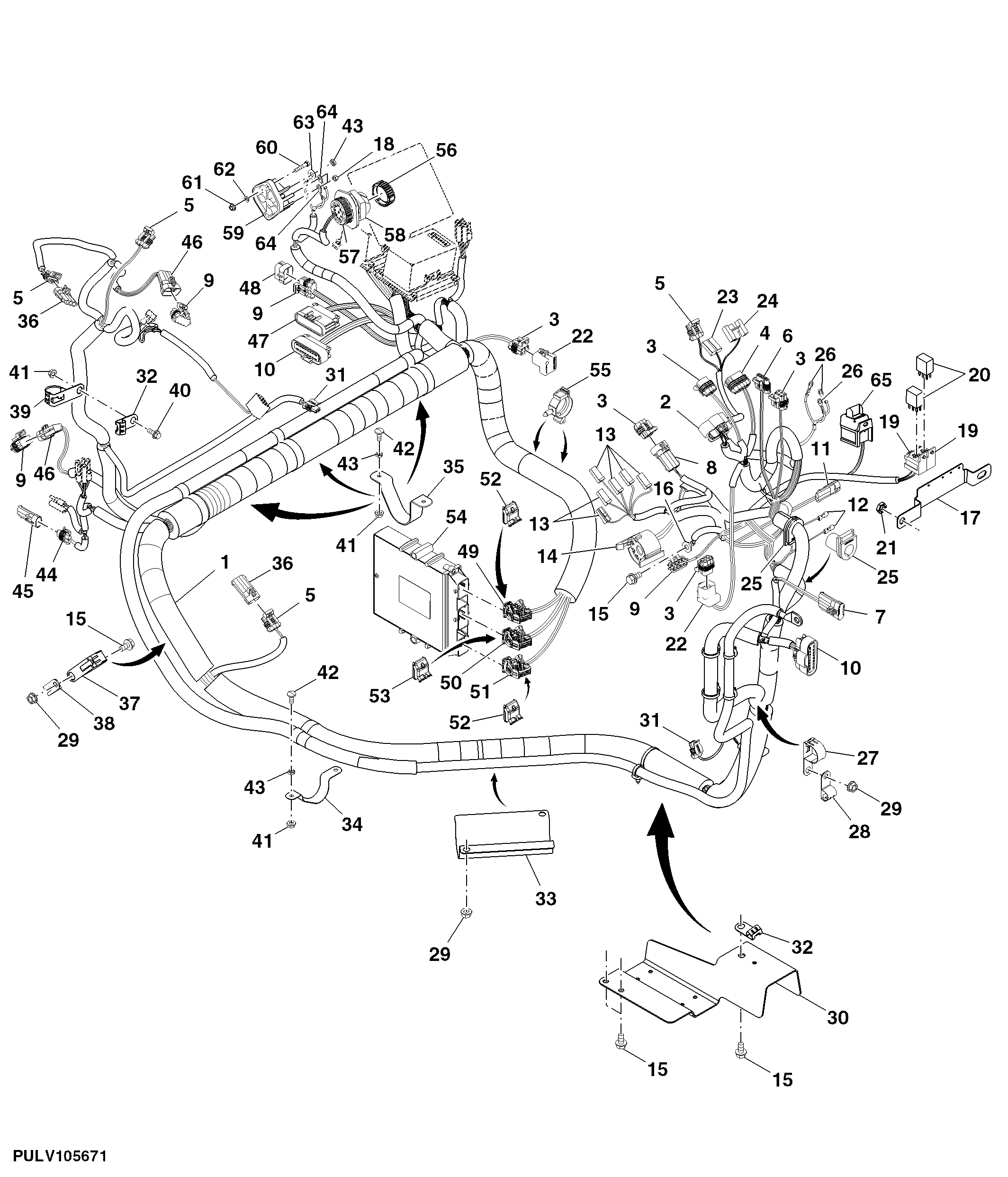

PLATFORM WIRING HARNESS, POWRREVERSER PTM, (PR)
