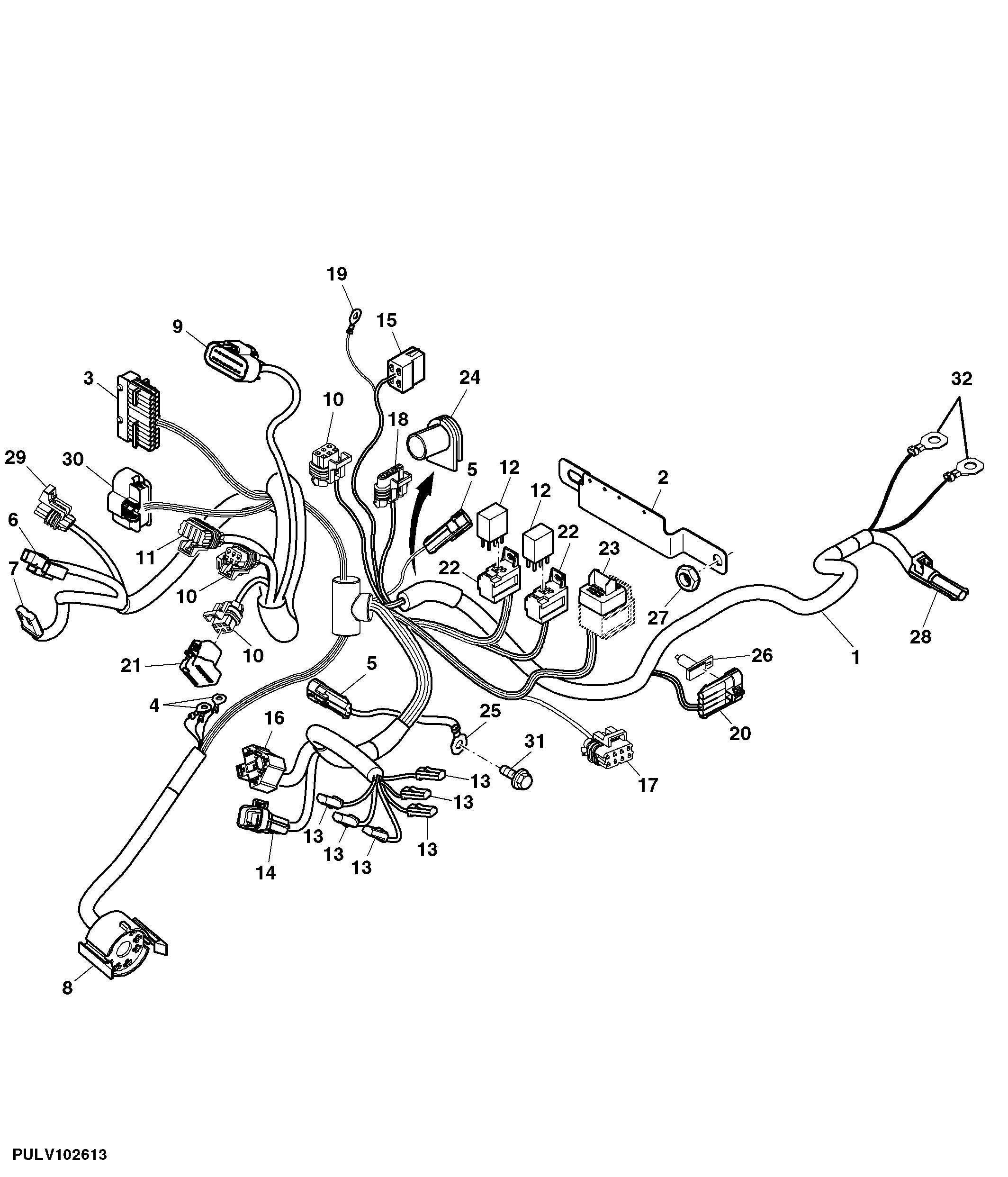

Front Console Wiring Harness, Power reverser Cab (PR) ( - 346999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ299159	1	Wiring Harness	ORDER SJ12680
2	R255312	1	Bracket	-
3	57M8070	1	Elec. Connector Housing	-
4	57M8873	4	Elec. Connector Terminal	-
5	57M7256	2	Elec. Connector Housing	-
6	57M7183	1	Elec. Connector Accessory	-
7	R77480	1	Electrical Connector Assy	-
8	RE46736	1	Electrical Connector Assy	-
9	57M8484	1	Elec. Connector Housing	-
10	57M7260	3	Elec. Connector Housing	-
11	57M7262	1	Elec. Connector Housing	-
12	57M9880	2	Relay	SUB FOR 57M8853
13	57M8815	6	Elec. Connector Housing	SUB FOR T28583
14	57M7263	1	Elec. Connector Housing	-
15	57M8761	1	Elec. Connector Housing	-
16	RE46735	1	Electrical Connector Assy	-
17	57M7261	1	Elec. Connector Housing	-
18	57M7840	1	Elec. Connector Housing	-
19	57M8872	1	Elec. Connector Terminal	-
20	57M7839	1	Electrical Connector Assy	-
21	RE207311	1	Electronic Control Unit	-
22	Z61311	2	Elec. Connector Housing	-
23	RE262484	1	Diode	(SUB FOR RE153894)
24	R112653	1	Grommet	-
25	57M8866	1	Elec. Connector Terminal	-
26	57M8910	1	Clip	-
27	14M7152	2	Nut	M10
28	57M7293	1	Elec. Connector Housing	AC COMPRESSOR
29	57M7255	1	Elec. Connector Housing	-
30	57M8156	1	Elec. Connector Housing	-
31	19M7865	1	Screw	M8 X 16
32	57M8866	2	Elec. Connector Terminal	-

Front Console Wiring Harness, Power reverser Cab (PR) ( - 346999)

Нет текстового описания
