20 Engine 4045HLV54-RE554822-ETN65455

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

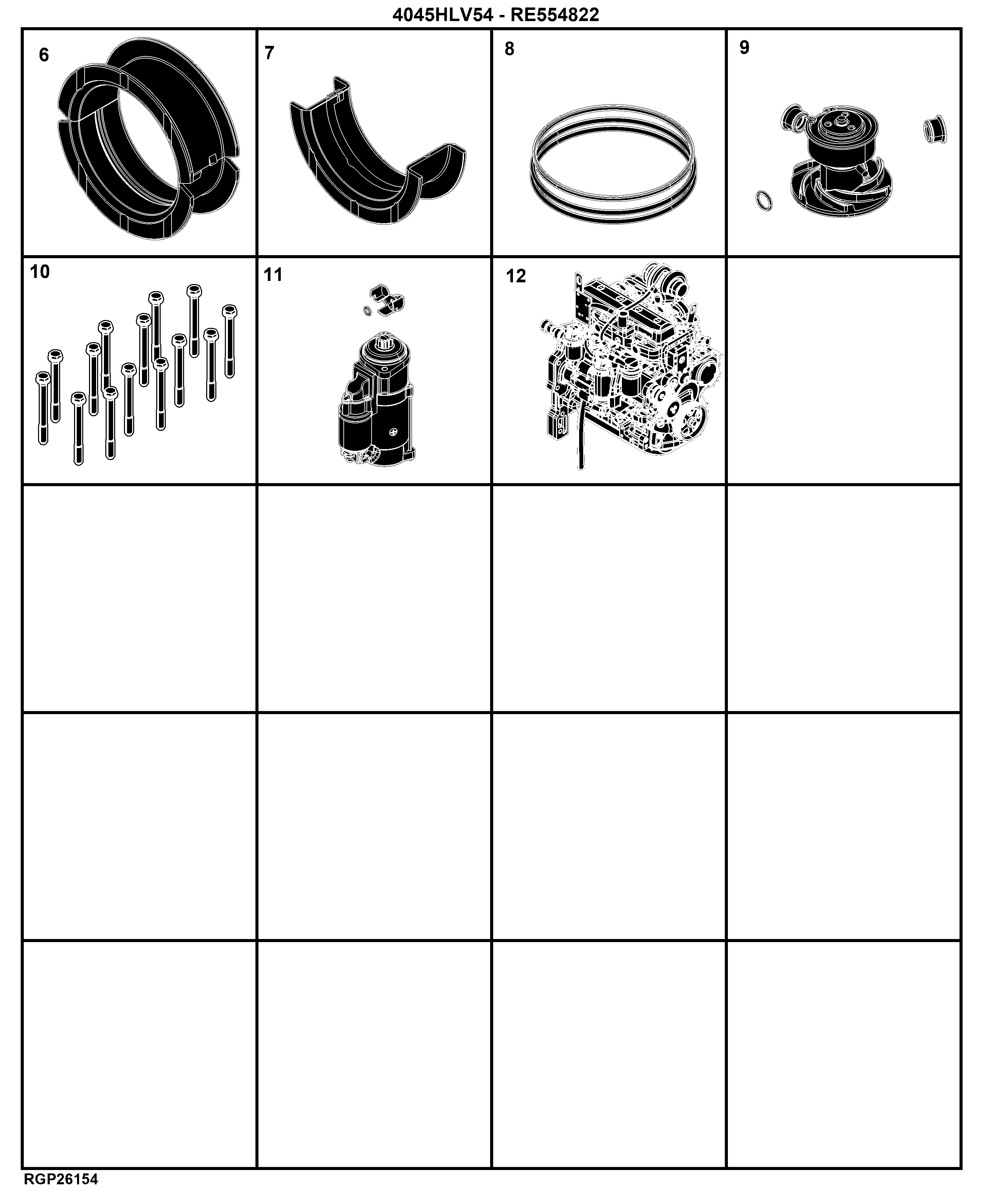

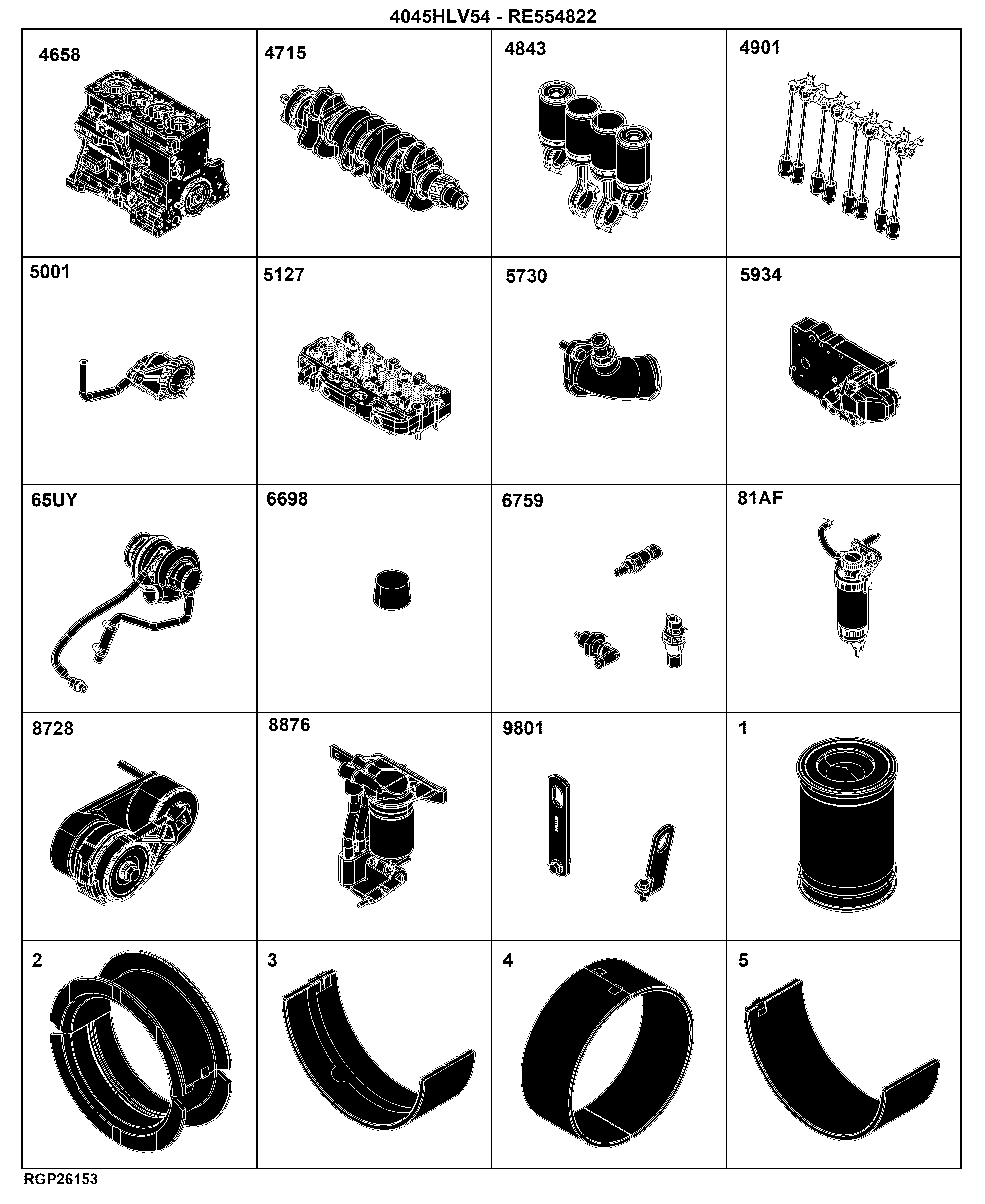

-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5127 Cylinder Head and Valves	-
-	-	1	5730 Water Pump Inlet	-
-	-	1	5934 Engine Oil Cooler	-
-	-	1	65UY Turbocharger	-
-	-	1	6698 Temperature Switch Plug	-
-	-	1	6759 Engine Sensors	-
-	-	1	81AF Primary Fuel Filter	-
-	-	1	8728 Belt Tensioner	-
-	-	1	8876 Oil Filter	-
-	-	1	9801 Lift Straps	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Cylinder Head Bolts Kit	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	2906 Ventilating System	-

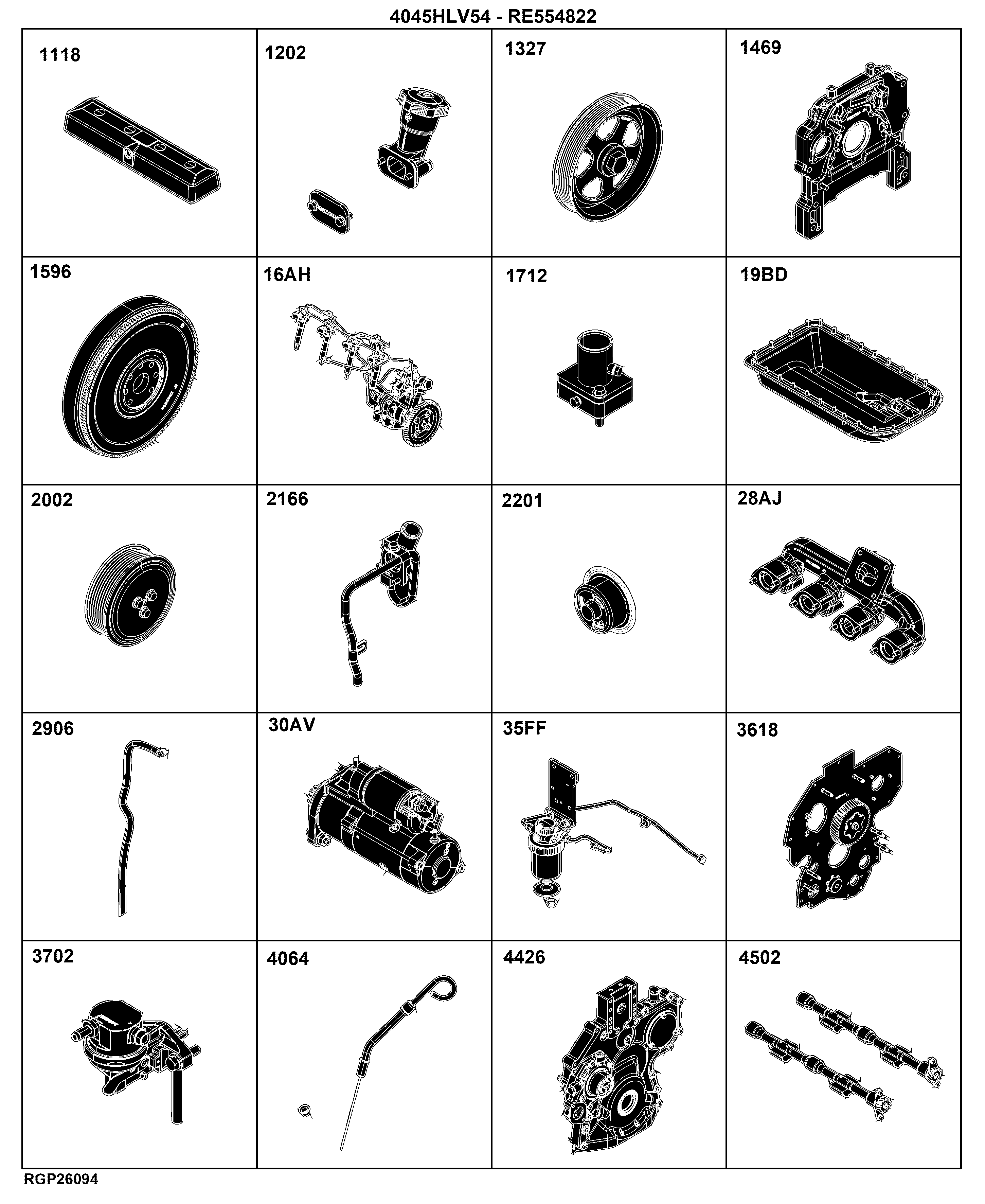

-	-	1	1202 Oil Filler Neck	-
-	-	1	1327 Crankshaft Pulley	-
-	-	1	1469 Flywheel Housing	-
-	-	1	1596 Flywheel	-
-	-	1	16AH Fuel Injection Pump	-
-	-	1	1712 Air Intake	-
-	-	1	19BD Oil Pan	-
-	-	1	2002 Water Pump Pulley	-
-	-	1	2166 Thermostat Cover	-
-	-	1	2201 Engine Thermostat	-
-	-	1	28AJ Exhaust Manifold	-
-	-	1	1118 Valve Cover	-
-	-	1	30AV Starter Motor	-
-	-	1	35FF Final Fuel Filter	-
-	-	1	3618 Front Plate	-
-	-	1	3702 Fuel Transfer Pump	-
-	-	1	4064 Engine Oil Dipstick	-
-	-	1	4426 Timing Gear Cover and Water Pump	-
-	-	1	4502 Balancer Shaft	-
-	-	1	4658 Cylinder Block	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	4843 Connecting Rods and Pistons	-

20 Engine 4045HLV54-RE554822-ETN65455
