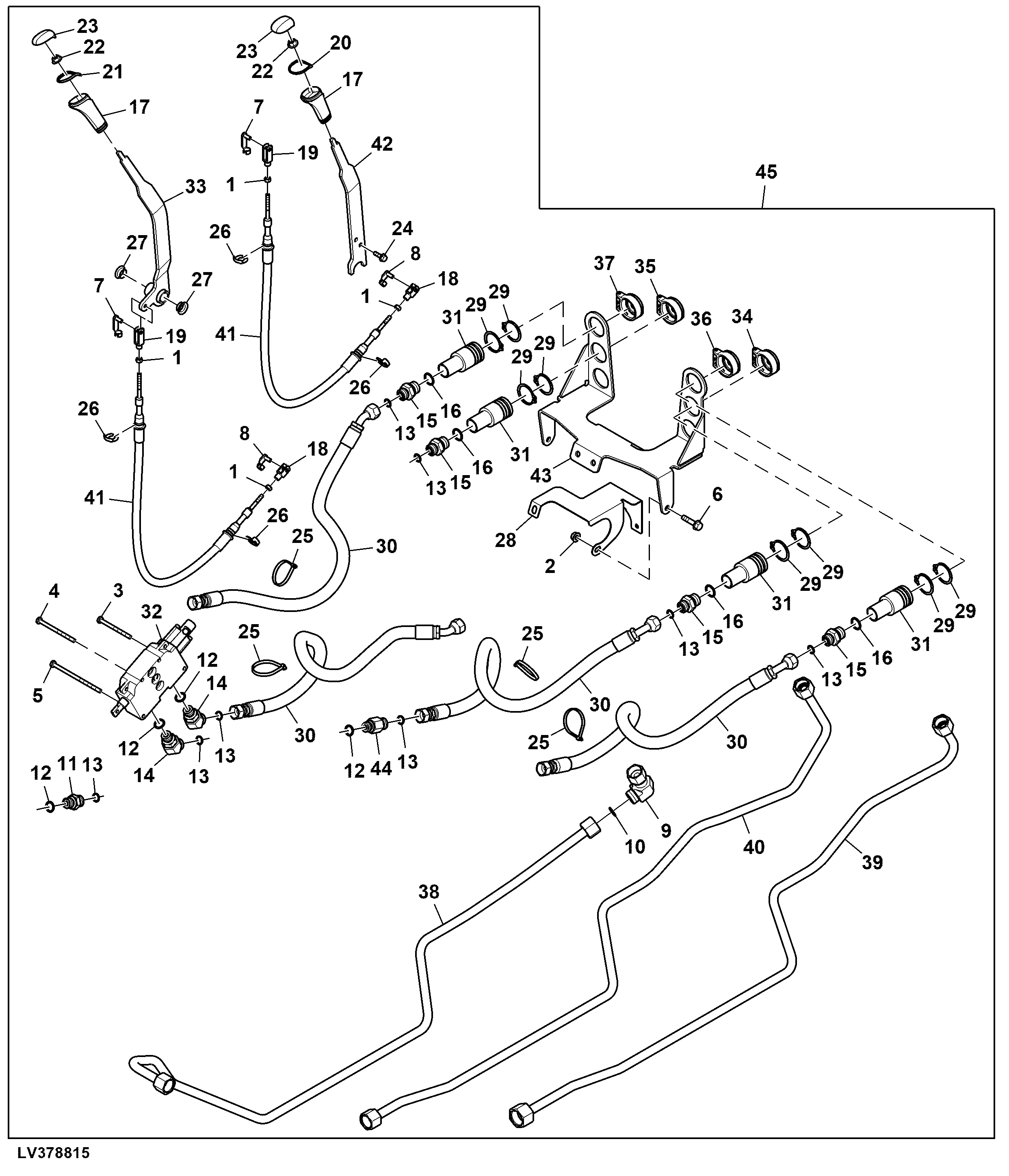

Triple Rear SCV, Conversion SCV I to SCV III, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7272	4	Nut	M6
2	14M7298	2	Flange Nut	M8
3	19H2851	1	Cap Screw	1/4" X 3"
4	19H3686	2	Cap Screw	1/4" X 3-1/2"
5	19H3755	1	Cap Screw	1/4" X 4-3/4"
6	19M7897	2	Screw	M8 X 35
7	45M7080	2	Spring Locking Pin	-
8	45M7101	2	Spring Locking Pin	-
9	38H1096	1	Elbow Fitting	-
10	T77932	1	O-Ring	-
11	38H5003	1	Adapter Fitting	-
12	51M7043	4	O-Ring	15.300 X 2.200 mm
13	T77857	8	O-Ring	-
14	38H5071	2	Elbow Fitting	-
15	38H5076	4	Adapter Fitting	-
16	51M7045	4	O-Ring	19.300 X 2.200 mm
17	L77747	2	Knob	-
18	L80051	2	Yoke	-
19	L80052	2	Yoke	-
20	L171711	1	Ring	-
21	L171712	1	Ring	-
22	M111717	2	Nut	-
23	M113899	2	Insert	-
24	N275828	2	Screw	-
25	R105388	4	Tie Band	-
26	R112612	4	Snap Ring	-
27	R113369	2	Bushing	-
28	R114024	1	Bracket	-
29	R120797	8	Snap Ring	-
30	RE45723	4	Hydraulic Hose	Flexible Oil
31	RE45822	4	Breakaway Coupler	-
32	RE67097	1	Valve	-
33	RE235243	1	Lever	SCV
34	RE268230	1	Cap	SCV II Extend, Blue
35	RE268231	1	Cap	SCV II Retract, Blue
36	RE268232	1	Cap	SCV II Extend, Brown
37	RE268233	1	Cap	SCV III Retract, Brown
38	SJ11144	1	Oil Line	Triple Rear, W/ Midmount, Pressure
39	SJ11145	1	Oil Line	Triple Rear, W/ Midmount, Power Beyond
40	SJ11146	1	Oil Line	Triple Rear, W/ Midmount, Tank
41	SJ293994	2	Push Pull Cable	-
42	SU21427	1	Lever	Second SCV Upper Half
43	SU21524	1	Bracket	-
44	R124222	1	Adapter Fitting	-
45	SJ11115	1	Valve Kit	-

Triple Rear SCV, Conversion SCV I to SCV III, Attachment

Нет текстового описания
