OOS Wiring Harness Connectors, PowrReverser™ (5/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31321	1	Wiring Harness	-
2	RE269840	2	Fuse Box	Load Center 2 X002
2	57M7399	3	Elec. Connector Seal	Cavity A9, A10, A5, B4, C9, C10,
2	57M8515	3	Elec. Connector Seal	Cavity A4, A6, A7, D4, C5, C6, C7, D4, D5, F4, F5
2	57M8584	11	Elec. Connector Terminal	Cavity A4, A6, A7, D4, C5, C6, C7, D4, D5, F4, F5
2	57M8585	6	Elec. Connector Terminal	Cavity A9, A10, A5, B4, C9, C10,
3	RE269840	1	Fuse Box	Load Center 1 X001
3	57M8584	18	Elec. Connector Terminal	Cavity A1, B1, C5, C7, D7, D8, D9, E4 - E8, F4 - F8, F10,
3	57M8585	32	Elec. Connector Terminal	Cavity A2 - A10, B2 - B5, B8, C1 - C4, C8 - C10, D1 - D3, D10, E1 - E3, F1 - F3, F9
3	57M7399	32	Elec. Connector Seal	Cavity A2 - A10, B2 - B5, B8, C1 - C4, C8 - C10, D1 - D3, D10, E1 - E3, F1 - F3, F9
3	57M8515	18	Elec. Connector Seal	Cavity A1, B1, C5, C7, D7, D8, D9, E4 - E8, F4 - F8, F10,
4	57M8910	1	Clip	-
5	57M9776	1	Elec. Connector Housing	Chassis Can Terminator R1
5	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
6	57M11134	1	Elec. Connector Housing	Chassis Can Terminator R2
6	57M9812	2	Elec. Connector Terminal	-
7	57M9182	1	Nut	-
7	57M8164	2	Elec. Connector Terminal	Cavity C, D
7	N282069	2	Elec. Connector Terminal	Cavity A, B
7	57M9183	1	Elec. Connector Housing	Service Advisor X07
8	57M9182	1	Nut	Nut
9	RE217864	1	Cap	-
10	57M8875	2	Elec. Connector Terminal	Junction Block Battery Power / Ground X02 - B
11	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power X02-C
12	57M10963	3	Elec. Connector Terminal	Left Beacon Lamp Ground
13	57M10962	5	Elec. Connector Terminal	Left Beacon Lamp
14	57M7254	1	Elec. Connector Housing	LH Fender Extension Harness E13
14	57M7289	1	Elec.Connect Locking Device	-
14	R104846	2	Elec. Connector Terminal	Cavity A, B
14	57M7258	2	Elec. Connector Seal	Cavity A, B
15	57M7256	1	Elec. Connector Housing	Dust Cap E13_A
15	57M7289	1	Elec.Connect Locking Device	-
16	14M7194	3	Nut	M6
17	57M8908	1	Clip	-
18	RE186986	1	Junction Block	Junction Block
19	SU46065	1	Label	-
20	57M9183	1	Elec. Connector Housing	-
21	57M8903	1	Clip	Service Advisor X07
22	19M7502	2	Cap Screw	M5 X 25
23	14M7375	2	Flange Nut	M5
24	24M7027	2	Washer	5.300 X 10 X 1 mm
25	14M7297	2	Nut	M5
26	SJ15809	5	Relay	-
27	57M7689	6	Fuse	-
28	57M7691	6	Fuse	-
29	57M8623	4	Fuse	-
30	57M7690	3	Fuse	-
31	19M7640	8	Cap Screw	M5 X 12
32	SJ15810	1	Relay	-
33	R273101	1	Clamp	-
34	03M7221	2	Bolt	M6 X 16
35	14M7303	2	Flange Nut	M6
36	R105388	1	Tie Band	-
37	57M8281	1	Elec. Connector Housing	Transmission Harness 1 X004
37	57M11996	1	Elec. Connector Accessory	-
37	57M8308	2	Elec. Connector Terminal	Cavity A, H
37	57M9539	2	Elec. Connector Terminal	Cavity C, R
37	57M8301	6	Elec. Connector Terminal	Cavity B, E, F, K, P , G
37	57M8324	2	Elec. Connector Terminal	-
37	57M9223	2	Elec. Connector Seal	-
37	57M8321	6	Elec. Connector Terminal	-

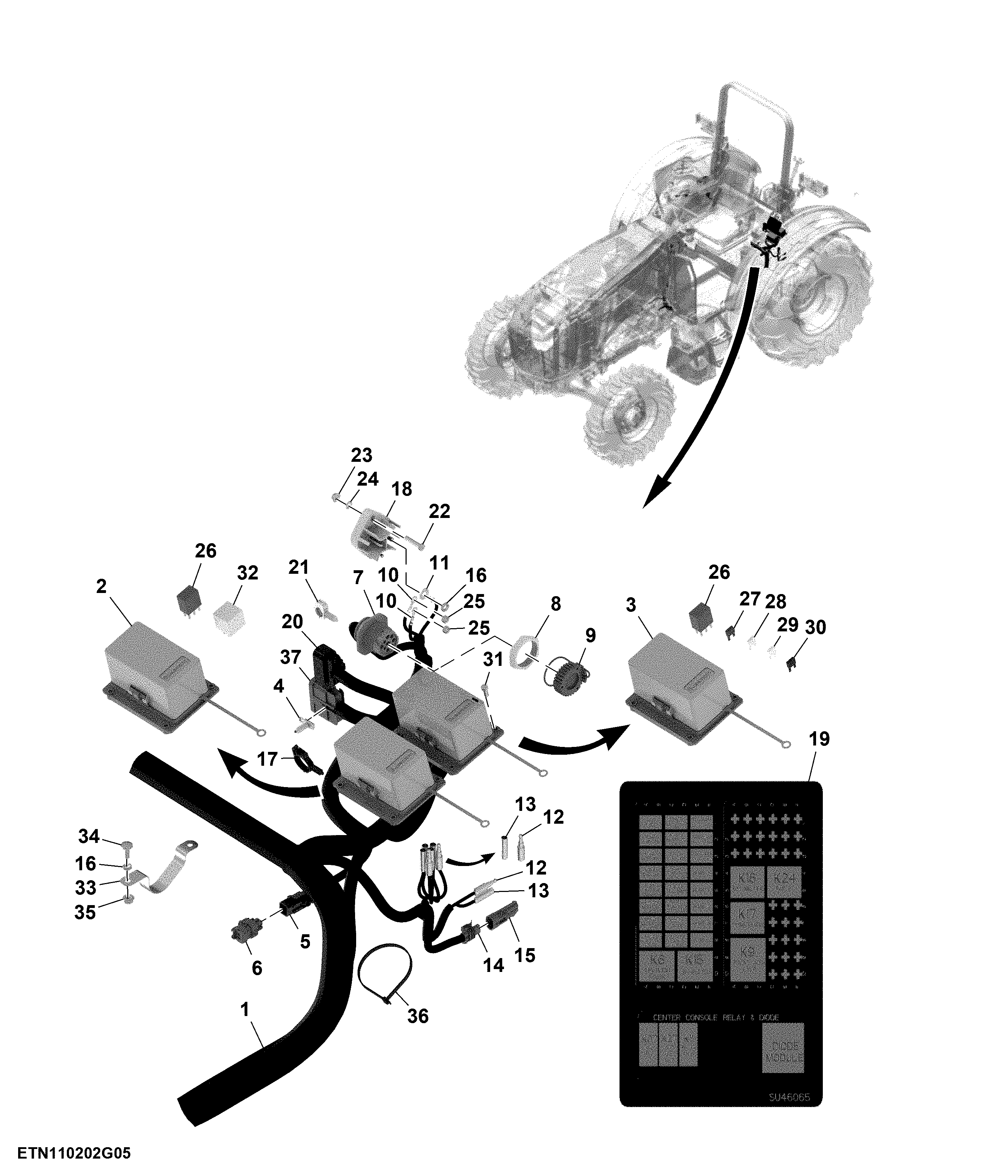

OOS Wiring Harness Connectors, PowrReverser™ (5/6)
