Front Console Wiring Harness, PowrReverser™, Cab(7/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19150	1	Wiring Harness	-
2	57M8484	1	Elec. Connector Housing	Instrument Cluster J1 A01
2	57M9919	1	Elec. Connector Accessory	-
2	57M8300	9	Elec. Connector Terminal	Cavity A - E, J, M, R, S
2	57M8299	5	Elec. Connector Terminal	Cavity G, H, K, L, N
2	57M8321	9	Elec. Connector Terminal	Cavity A - E, J, M, R, S
2	57M9223	5	Elec. Connector Seal	Cavity G, H, K, L, N
2	57M9446	2	Elec. Connector Seal	Cavity E, P
3	57M10299	1	Elec. Connector Housing	Light Switches X050A
3	57M8565	6	Elec. Connector Terminal	Cavity 1 - 3, 5, 6,9
3	57M8545	3	Elec. Connector Terminal	Cavity 4, 7, 8
3	57M8572	1	Elec. Connector Cavity Plug	Cavity 10
4	57M10770	9	Elec. Connector Terminal	Cavity A - J
4	57M7259	1	Elec. Connector Seal	Cavity K
4	57M9215	3	Elec. Connector Seal	Cavity E, H, J
4	57M7258	6	Elec. Connector Seal	Cavity A - D, F, G
4	57M8907	1	Elec.Connect Locking Device	-
4	57M7262	1	Elec. Connector Housing	Multi Function Switch X051A
5	57M7840	1	Elec. Connector Housing	FNR Switch
5	57M7469	1	Electrical Connector Assy	-
5	57M10770	4	Elec. Connector Terminal	Cavity A - D
5	57M9215	4	Elec. Connector Seal	Cavity A - D
6	Z61311	1	Elec. Connector Housing	Neutral Relay K11
6	57M10498	1	Elec. Connector Terminal	Cavity 30
6	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
6	57M9491	1	Elec. Connector Terminal	Cavity 87
7	AL76702	1	Relay	Relay
8	Z61311	1	Elec. Connector Housing	Head Light Relay K27
8	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
8	57M9491	2	Elec. Connector Terminal	Cavity 30, 87
9	AL76702	1	Relay	Relay
10	Z61311	1	Elec. Connector Housing	Acessory Relay K07
10	57M10498	2	Elec. Connector Terminal	Cavity 30, 87
10	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
11	AL76702	1	Relay	Relay
12	SU23150	1	Bracket	Relay Bracket
13	57M10105	1	Elec. Connector Accessory	-
14	RE46735	1	Electrical Connector Assy	Front Wiper Switch S30
14	57M7511	4	Elec. Connector Terminal	Cavity 1, 2, 4, P
14	57M7429	3	Elec. Connector Terminal	Cavity 3, L, B
15	57M10961	1	Elec. Connector Housing	Exhaust Fiter Cleaning Switch S35
15	57M8292	3	Elec. Connector Terminal	-
16	RE262484	1	Diode	-
17	57M10426	1	Elec. Connector Accessory	Audible Alarm
17	57M7825	2	Elec. Connector Terminal	Cavity 4, 6
18	57M8872	1	Elec. Connector Terminal	Front Wiper Motor M05GND
19	57M7261	1	Elec. Connector Housing	Brake Pedal SW S17
19	57M7296	1	Elec. Connector Accessory	-
19	57M10770	4	Elec. Connector Terminal	Cavity A - D
19	57M9215	3	Elec. Connector Seal	Cavity A, C, D
19	57M7258	1	Elec. Connector Seal	Cavity B
19	57M7259	4	Elec. Connector Seal	Cavity E - H
20	37M7089	2	Screw	M6 X 12
21	19M7865	1	Screw	M8 X 16
22	14M7298	1	Flange Nut	M8

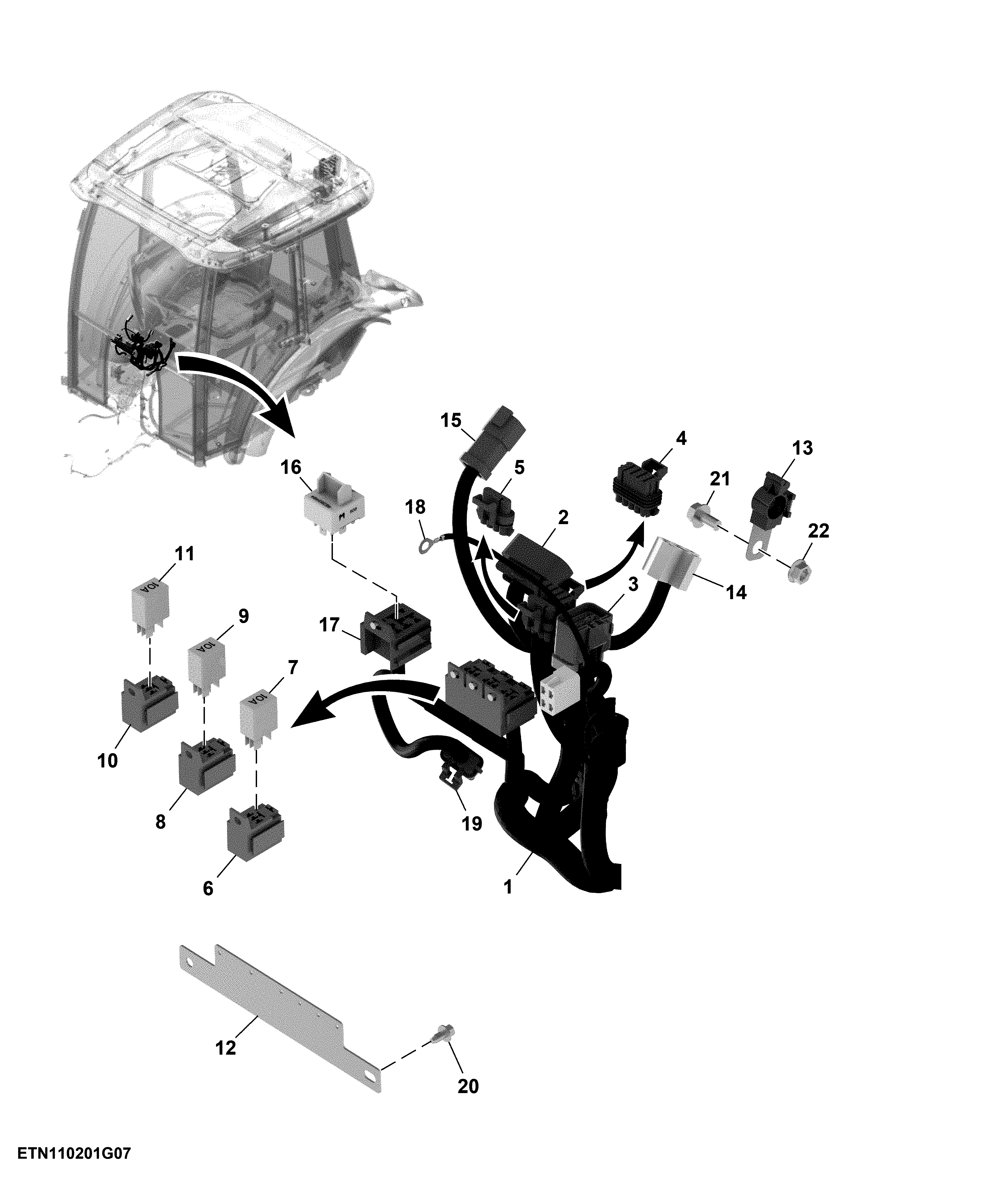

Front Console Wiring Harness, PowrReverser™, Cab(7/7)
