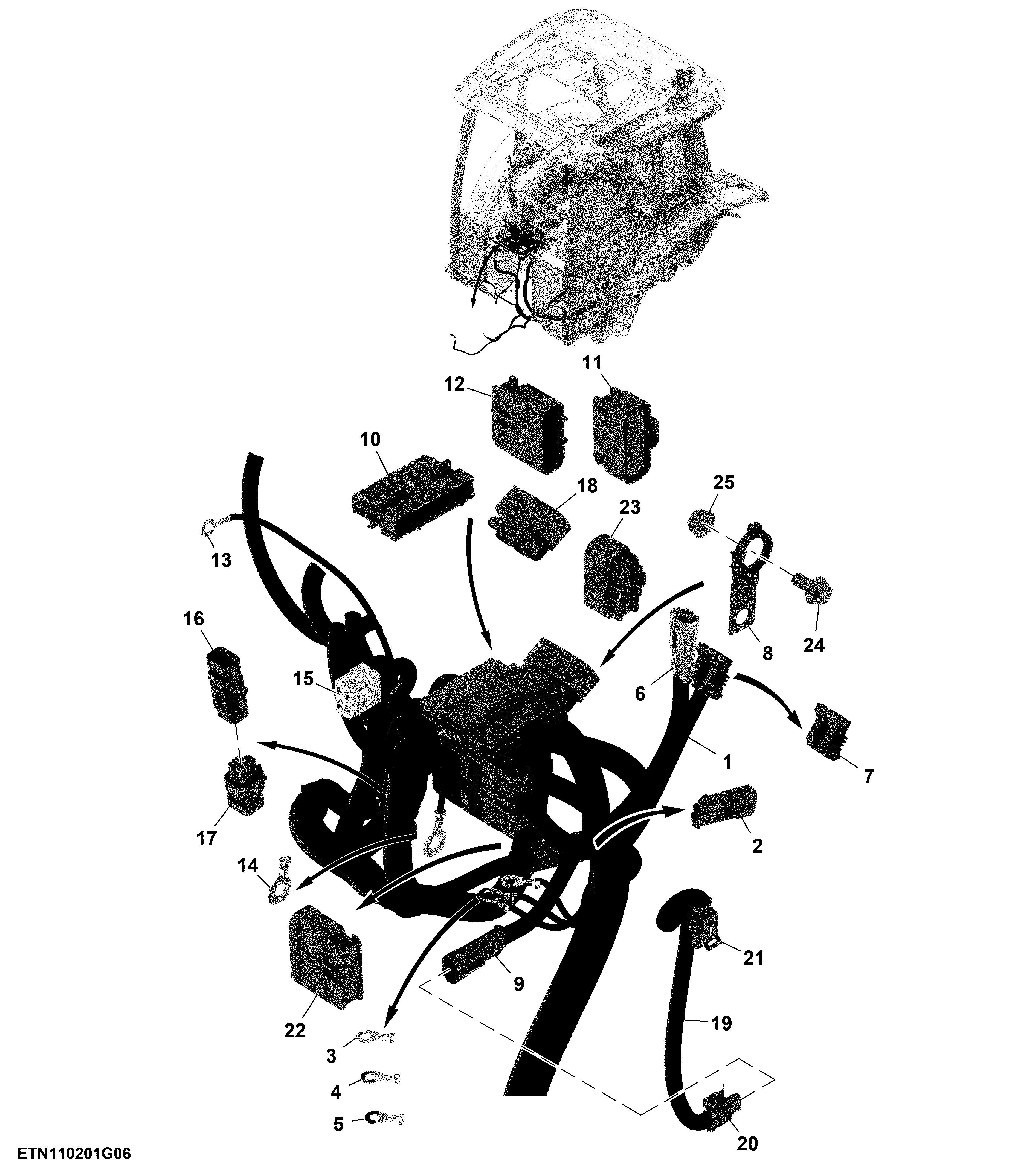

Front Console Wiring Harness, PowrReverser™, Cab(6/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19150	1	Wiring Harness	-
2	57M7256	1	Elec. Connector Housing	Start Relay K18
2	57M9215	2	Elec. Connector Seal	Cavity A, B
2	57M7289	1	Elec.Connect Locking Device	-
2	57M7252	2	Elec. Connector Terminal	Cavity A, B
3	57M7560	1	Elec. Connector Terminal	Battery K18
3	57M8871	1	Elec. Connector Terminal	Cavity 1
4	57M7560	1	Elec. Connector Terminal	Starter K18
4	57M8871	1	Elec. Connector Terminal	Cavity 1
5	57M7560	1	Elec. Connector Terminal	Controller K18
5	57M8871	1	Elec. Connector Terminal	Cavity 1
6	57M7985	1	Electrical Connector Assy	Roll Mode Switch S36
6	57M7289	1	Elec.Connect Locking Device	-
6	57M7495	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M9215	3	Elec. Connector Seal	Cavity A - C
7	57M10770	3	Elec. Connector Terminal	Cavity A - C
7	57M7255	1	Elec. Connector Housing	Power Shuttle Pot B21
7	57M7290	1	Elec. Connector Accessory	-
8	57M11014	1	Elec. Connector Accessory	-
9	57M7256	1	Elec. Connector Housing	H18
10	57M10371	4	Elec. Connector Terminal	Cavity 5 - 7, 10
10	57M7259	10	Elec. Connector Seal	Cavity 2, 4, 11, 12, 15, 16, 19, 20, 23, 24
10	57M8515	9	Elec. Connector Seal	Cavity 3, 8, 9, 13, 14, 17, 18, 21, 22
10	57M7399	5	Elec. Connector Seal	Cavity 1, 5 - 7, 10
10	57M8732	9	Elec. Connector Terminal	Cavity 3, 8, 9, 13, 14, 17, 18, 21, 22
10	57M8076	1	Elec. Connector Terminal	-
10	57M8943	1	Elec.Connect Locking Device	-
10	57M8070	1	Elec. Connector Housing	Cab Connector 3 X033B
11	57M9446	1	Elec. Connector Seal	Cavity M
11	57M9223	1	Elec. Connector Seal	Cavity C
11	57M8321	10	Elec. Connector Terminal	Cavity B, D - G, K, L, N - R
11	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
11	57M8299	1	Elec. Connector Terminal	Cavity C
11	57M8304	4	Elec. Connector Terminal	Cavity A, H, J, S
11	57M8300	10	Elec. Connector Terminal	Cavity B, D - G, K, L, N - R
11	57M8156	1	Elec. Connector Housing	Cab Connector 1 X031B
11	57M11996	1	Elec. Connector Accessory	-
12	57M10717	1	Elec. Connector Housing	Cab Connector 2 X032B
12	57M9919	1	Elec. Connector Accessory	-
12	57M8301	8	Elec. Connector Terminal	Cavity A, C- E, J - L, P
12	57M9539	2	Elec. Connector Terminal	Cavity G, M
12	57M8323	4	Elec. Connector Terminal	Cavity A, C, G, M
12	57M8321	6	Elec. Connector Terminal	Cavity D, E, J - L, P
12	57M9446	6	Elec. Connector Seal	Cavity B, F, H, N, R, S
13	57M8872	1	Elec. Connector Terminal	M05 GND
14	57M8866	1	Elec. Connector Terminal	VC Ring M8 XGND1
14	57M8868	1	Elec. Connector Terminal	Cavity 1
15	57M8761	1	Elec. Connector Housing	Front Wiper Motor M05
15	57M7825	4	Elec. Connector Terminal	Cavity 1 - 4
16	57M9776	1	Elec. Connector Housing	Resistor R2
16	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
17	57M11134	1	Elec. Connector Housing	R2
18	57M9835	1	Elec. Connector Housing	Instrument Cluster J2 A01
18	57M10201	1	Elec. Connector Accessory	-
18	57M8300	6	Elec. Connector Terminal	Cavity A, B, F - J
18	57M8299	3	Elec. Connector Terminal	Cavity E, M, N
18	57M8321	6	Elec. Connector Terminal	Cavity A, B, F - J
18	57M9223	3	Elec. Connector Seal	Cavity E, M, N
18	57M9446	5	Elec. Connector Seal	Cavity C, D, K, L, P
19	SJ29250	1	Wiring Harness	-
20	57M7254	1	Elec. Connector Housing	-
21	57M10497	1	Elec. Connector Housing	X033A
22	57M8281	1	Elec. Connector Housing	X032A
23	57M8484	1	Elec. Connector Housing	X031A
24	19M7865	2	Screw	M8 X 16
25	14M7298	1	Flange Nut	M8

Front Console Wiring Harness, PowrReverser™, Cab(6/7)
