Front Console Wiring Harness, PowrReverser™, Cab(5/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19149	1	Wiring Harness	-
2	57M10825	2	Clamp	Clamp
3	CB01483609	3	Tie Band	Tie Cable
4	R267934	1	Channel	-
5	R267935	1	Channel	-
6	57M7260	1	Elec. Connector Housing	Clutch Assembly S15
6	57M7291	1	Electrical Connector Assy	-
6	57M7494	5	Elec. Connector Terminal	-
6	57M9215	5	Elec. Connector Seal	-
7	57M8484	1	Elec. Connector Housing	Front Console Connector 1 X031A
7	57M8321	11	Elec. Connector Terminal	-
7	57M8324	4	Elec. Connector Terminal	-
7	57M8301	11	Elec. Connector Terminal	-
7	57M8308	4	Elec. Connector Terminal	-
7	57M11996	1	Elec. Connector Accessory	-
8	57M8300	8	Elec. Connector Terminal	-
8	57M9223	2	Elec. Connector Seal	-
8	57M8321	8	Elec. Connector Terminal	-
8	57M8299	2	Elec. Connector Terminal	-
8	57M9919	1	Elec. Connector Accessory	-
8	57M8281	1	Elec. Connector Housing	Front Console Connector 2 X032A
9	57M8944	1	Elec. Connector Housing	Front Console Connector 3 X033A
9	57M8942	5	Elec. Connector Terminal	-
9	57M8621	9	Elec. Connector Terminal	-
9	57M7399	5	Elec. Connector Seal	Cavity 1, 5 -7, 10
9	57M8515	9	Elec. Connector Seal	Cavity 3, 8, 9 13, 14, 17, 18, 21, 22
10	RE258807	1	Tie Band	-
11	57M11984	1	Elec. Connector Accessory	-
12	57M7894	1	Elec. Connector Terminal	Single Point Ground Stud XGND18A
13	57M7894	1	Elec. Connector Terminal	Single Point Ground Stud XGND18B
14	57M7894	1	Elec. Connector Terminal	Single Point Ground Stud XGND18C
15	57M12024	3	Elec. Connector Accessory	-
16	57M7309	1	Elec. Connector Housing	AC Compressor M04
16	57M9219	2	Elec. Connector Seal	Cavity A, B
16	57M7306	1	Elec.Connect Locking Device	-
16	57M7297	2	Elec. Connector Terminal	Cavity A, B
17	57M9435	3	Clamp	-
18	57M7953	1	Electrical Connector Assy	Foot Throttle B32
18	57M9180	3	Elec. Connector Terminal	Cavity 1, 2, 4
18	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 4
19	57M12053	2	Elec. Connector Accessory	-
20	57M9776	1	Elec. Connector Housing	Can Terminator R1
20	57M11134	1	Elec. Connector Housing	-
20	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
21	57M7762	1	Electrical Connector Assy	Engine Harness X5074
21	57M10916	1	Elec. Connector Terminal	Cavity 1
22	57M11134	1	Elec. Connector Housing	R1_D
23	R104919	4	Elec. Connector Terminal	Cavity A - D
23	57M7258	3	Elec. Connector Seal	Cavity A - C
23	57M9215	1	Elec. Connector Seal	Cavity D
23	57M7469	1	Electrical Connector Assy	-
23	57M7839	1	Electrical Connector Assy	Hood Harness X002A
24	RE538505	1	Elec. Connector Accessory	ECU J3 Connector A5505
24	57M10321	12	Elec. Connector Terminal	Cavity 7, 12 - 14, 16, 17, 23, 24, 27, 43, 44, 50
24	57M9808	10	Elec. Connector Terminal	Cavity 1, 2, 9 - 11, 28, 32, 34, 36, 49
25	R528122	1	Elec. Connector Accessory	A5505_D
26	SJ21035	1	Battery Cable	-
27	MIA10189	1	Ground Cable	-
28	19M7865	5	Screw	M8 X 16
29	14M7298	6	Flange Nut	M8
30	R138605	1	Bushing	-
31	19M8317	1	Screw	M8 X 40
32	57M9855	5	Clamp	-
33	57M8902	1	Clip	-
34	FH318001	1	Grommet	-

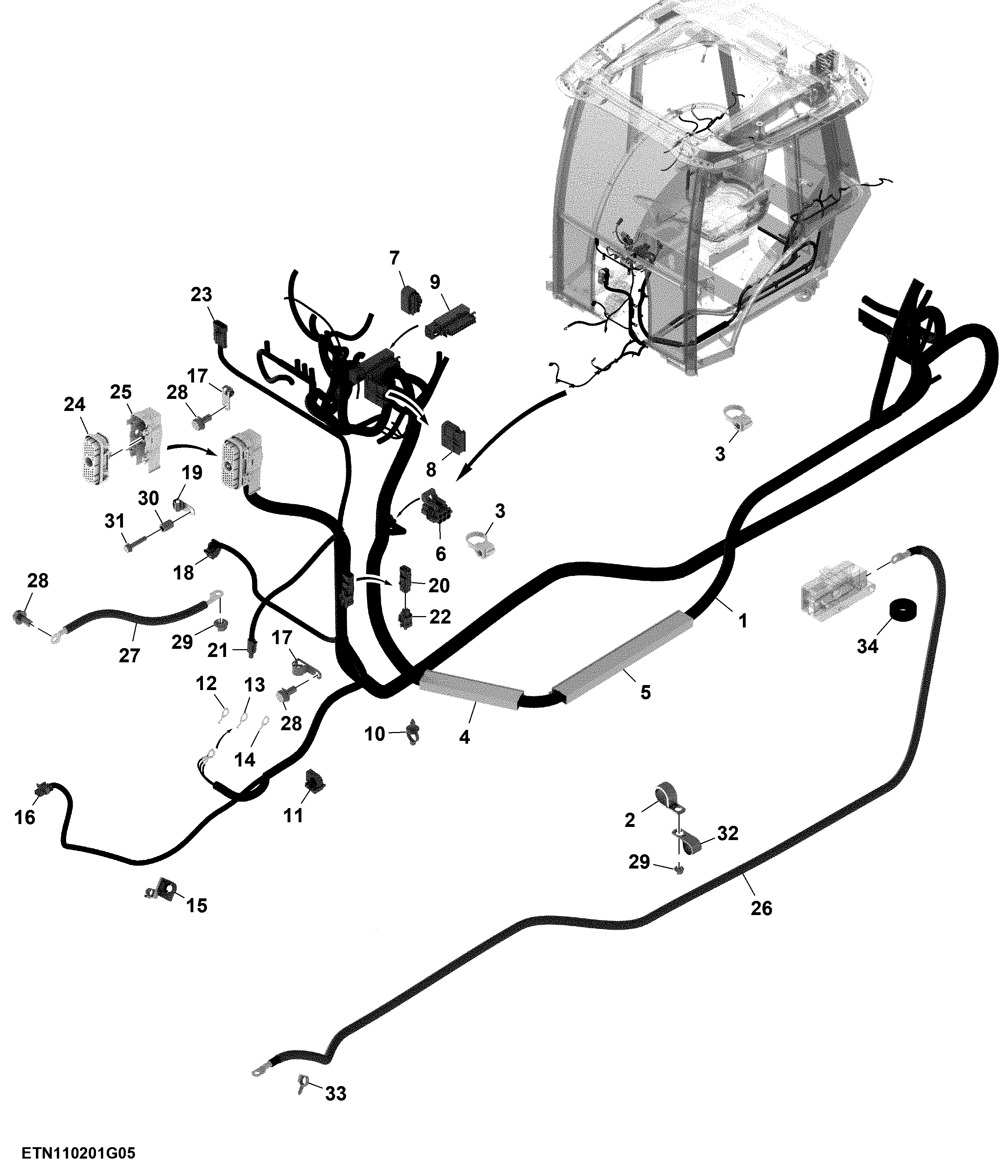

Front Console Wiring Harness, PowrReverser™, Cab(5/7)
