Открытый узел

20 Engine 4045HLV69-RE550040

20 Engine 4045HLV69-RE550040

20 Engine 4045HLV69-RE550040

20 Engine 4045HLV69-RE550040

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Engine 4045HLV69-RE550040

Нет текстового описания

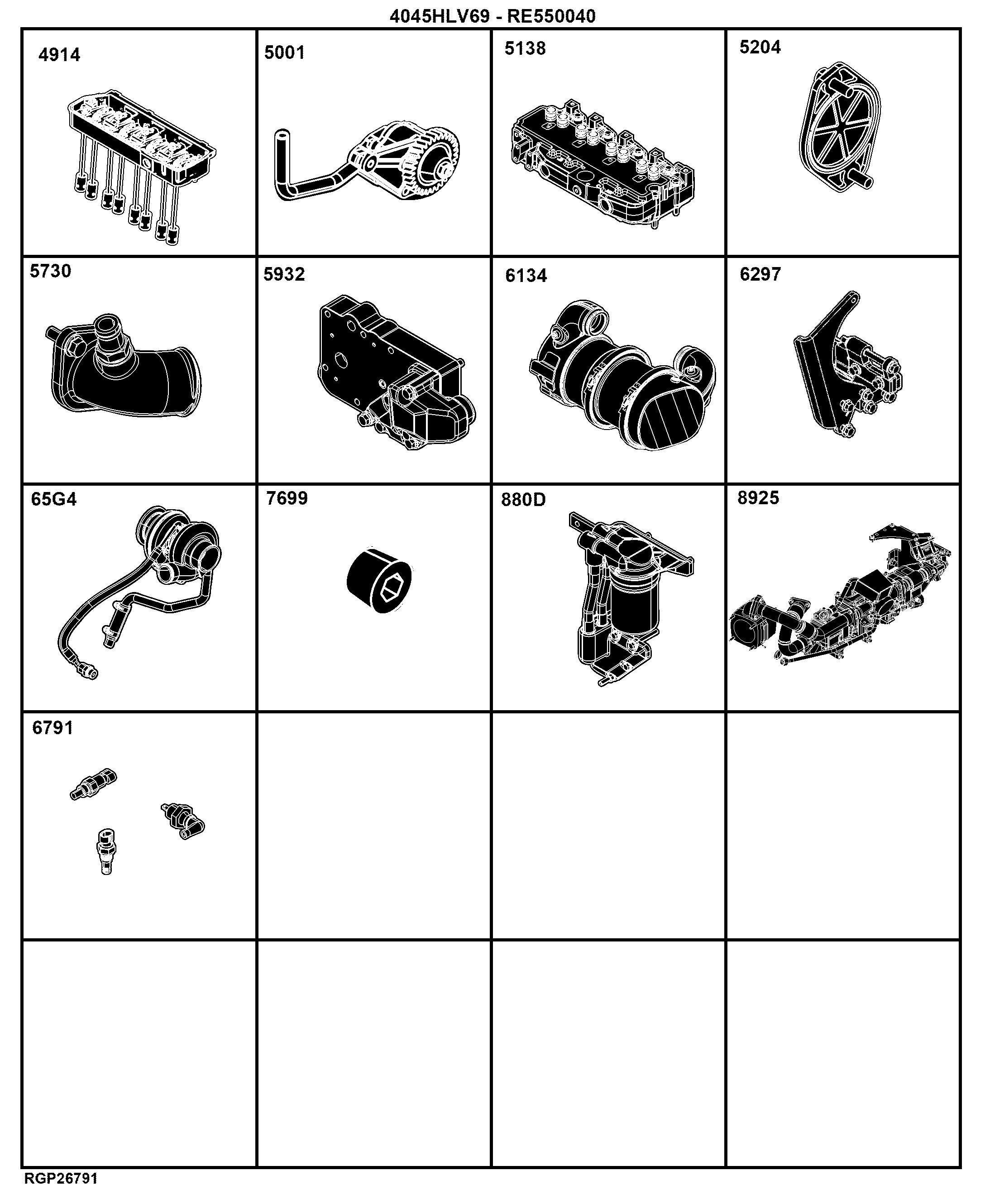

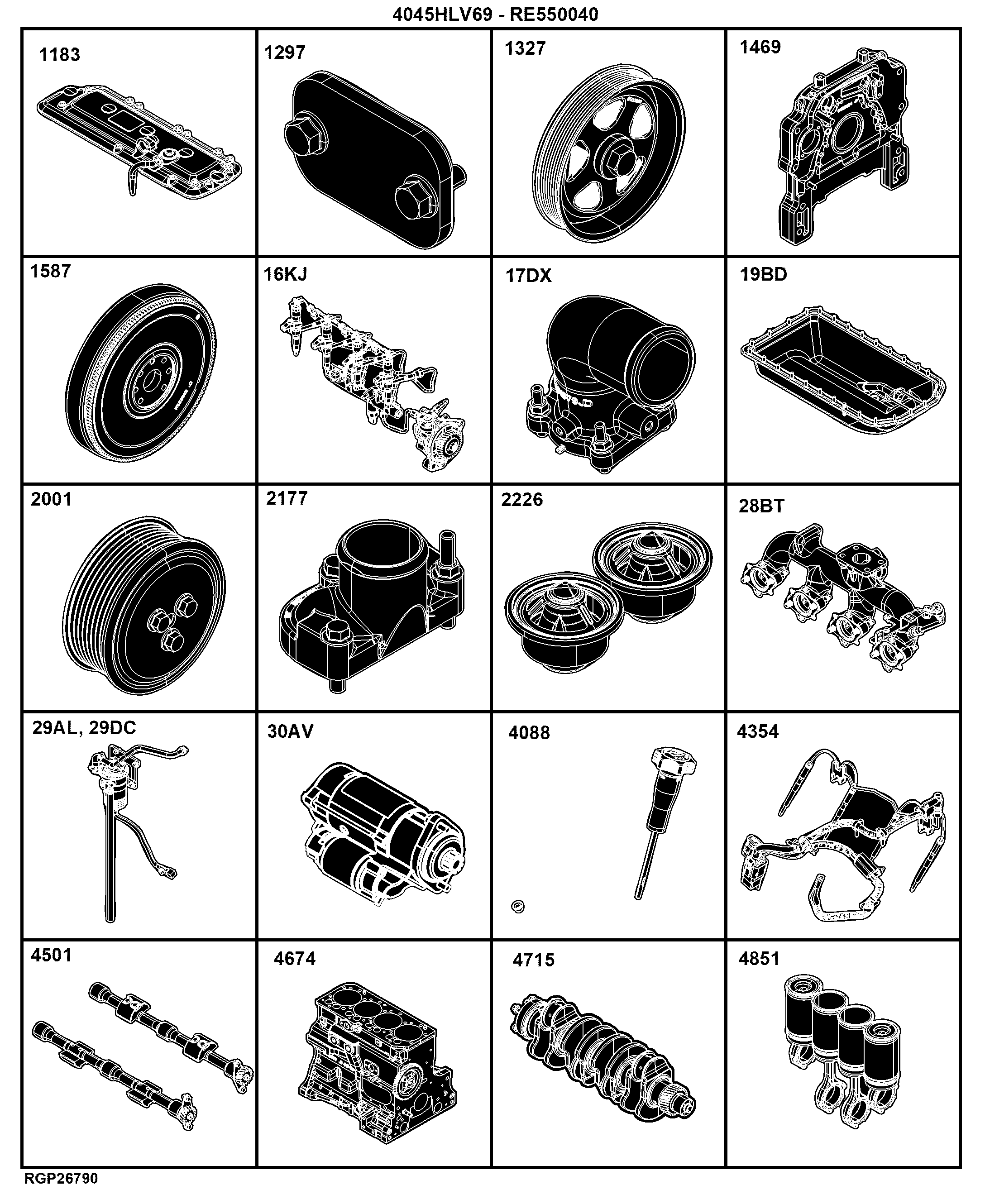

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	8743 Belt Tensioner	-
-	-	1	9901 Cylinder Head Gasket Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	8925 Exhaust Gas Recirculation	-
-	-	1	880D Oil Filter	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	84CY Engine Wiring Harness	-
-	-	1	81BD Primary Fuel Filter	-
-	-	1	7699 Oil Pressure Switch - Plug	-
-	-	1	6770 Engine Sensors	-
-	-	1	65G4 Turbocharger	-
-	-	1	63DN Low Pressure Fuel Lines	-
-	-	1	6297 Alternator Mounting Hardware	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Hardware Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	6162 DOC and DPF, Exhaust System	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Injection Nozzle	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	19DA Oil Pan	-
-	-	1	35HF Fuel Filter	-
-	-	1	30AV Starter Motor	-
-	-	1	29DC Ventilating System	-
-	-	1	29AL Ventilating System	-
-	-	1	28BT Exhaust Manifold	-
-	-	1	2226 Engine Thermostat	-
-	-	1	2177 Thermostat Cover	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	3614 Front Plate	-
-	-	1	17DX Air Intake	-
-	-	1	16KJ Fuel Injection System (020097 - )	-
-	-	1	16FK Fuel Injection Pump ( - 020096)	-
-	-	1	1587 Flywheel	-
-	-	1	14AR Flywheel Housing	-
-	-	1	1328 Crankshaft Pulley	-
-	-	1	1297 Oil Filler Cover	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	6134 Exhaust Filter / Diesel Particulate Filter	-
-	-	1	5932 Engine Oil Cooler	-
-	-	1	5730 Water Pump Inlet	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5138 Cylinder Head With Valves	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	4914 Valve Actuating Mechanism	-
-	-	1	4851 Connecting Rods and Pistons	-
-	-	1	1183 Valve Cover	-
-	-	1	4674 Cylinder Block	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4467 Timing Gear Cover and Water Pump	-
-	-	1	4354 Starting Aid	-
-	-	1	4084 Engine Oil Dipstick Tube	-
-	-	1	3953 Thermostat Housing	-
-	-	1	3713 Fuel Transfer Pump	-
