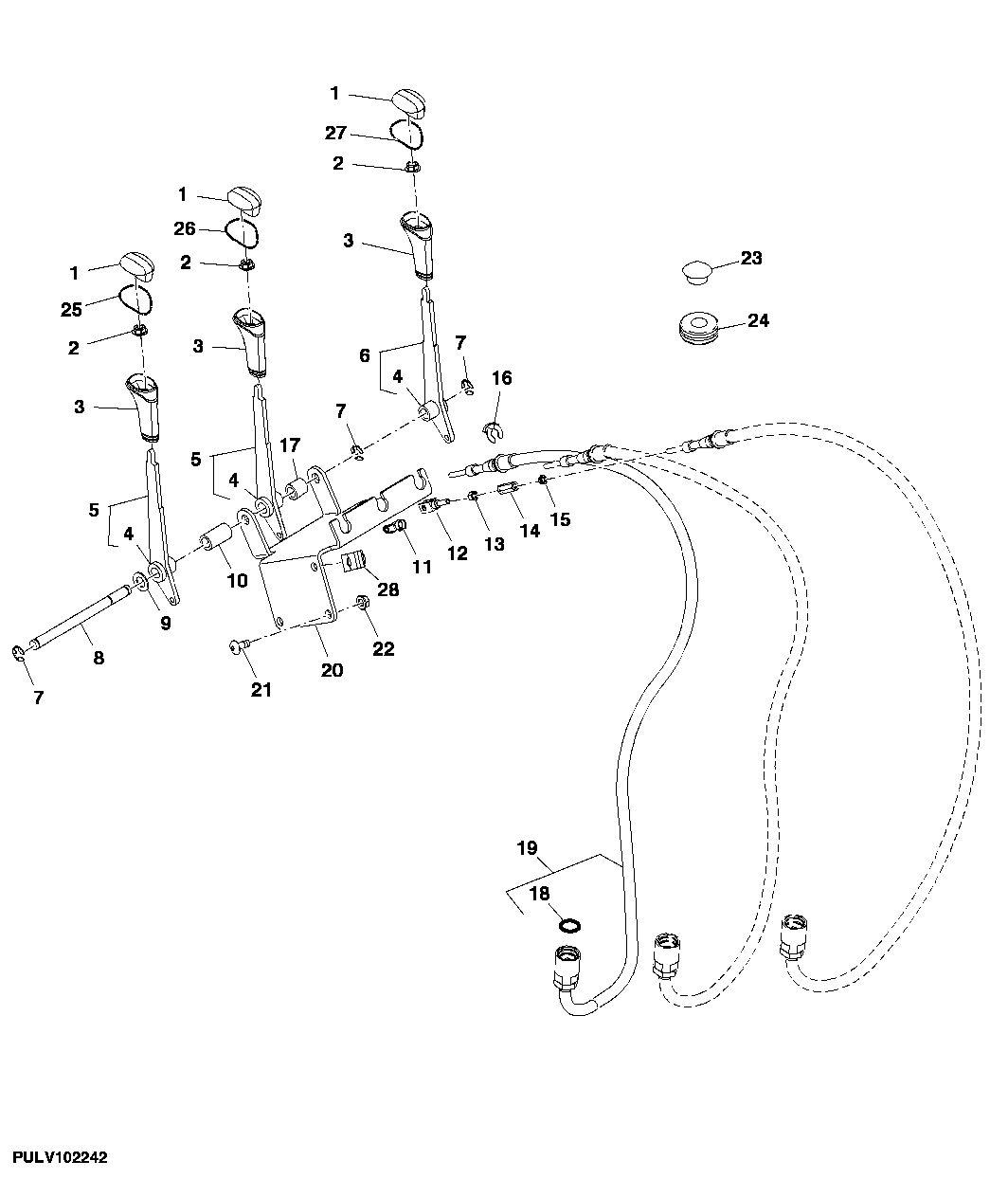

Rear Scv Levers And Bracket, Cab (370001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M113899	3	Insert	(TRIPLE)
1	M113899	2	Insert	(DUAL)
2	M111717	3	Nut	(TRIPLE)
2	M111717	2	Nut	(DUAL)
3	L77747	2	Knob	(DUAL)
3	L77747	3	Knob	(TRIPLE)
4	R182220	2	Bearing	(DUAL)
4	R182220	3	Bearing	(TRIPLE)
5	RE215548	2	Control Lever	SCV 1 & 2
6	RE215551	1	Control Lever	SCV 3
7	R26871	2	Snap Ring	(DUAL)
7	R26871	3	Snap Ring	(TRIPLE)
8	R219915	1	Pin Fastener	-
9	24M7044	1	Washer	13 X 20 X 2 mm
10	R219917	1	Spacer	-
11	45M7101	2	Spring Locking Pin	(DUAL)
11	45M7101	3	Spring Locking Pin	(TRIPLE)
12	R218651	2	Yoke	(DUAL)
12	R218651	3	Yoke	(TRIPLE)
13	14M7336	2	Nut	(DUAL) M6
13	14M7336	3	Nut	(TRIPLE) M6
14	14M7487	2	Turnbuckle	(DUAL)
14	14M7487	3	Turnbuckle	(TRIPLE)
15	14M7194	2	Nut	(DUAL) M6
15	14M7194	3	Nut	(TRIPLE) M6
16	R112612	2	Snap Ring	(DUAL)
16	R112612	3	Snap Ring	(TRIPLE)
17	R219918	1	Spacer	-
18	L41536	2	O-Ring	(DUAL)
18	L41536	3	O-Ring	(TRIPLE)
19	RE201501	2	Push Pull Cable	(DUAL)
19	RE201501	3	Push Pull Cable	(TRIPLE)
20	R211261	1	Bracket	-
21	M78471	3	Screw	-
22	14M7298	3	Flange Nut	M8
23	99M7011	1	Plug	(CAB) (DUAL)
24	R62356	2	Grommet	(CAB) (DUAL)
24	R70350	3	Grommet	(CAB) (TRIPLE)
25	L171710	1	Ring	GREEN
26	L171711	1	Ring	BLUE
27	L171712	1	Ring	BROWN
28	R135870	1	Nut	(DUAL) (TRIPLE) (STRADDLE MOUNT)

Rear Scv Levers And Bracket, Cab (370001 - )
