Открытый узел

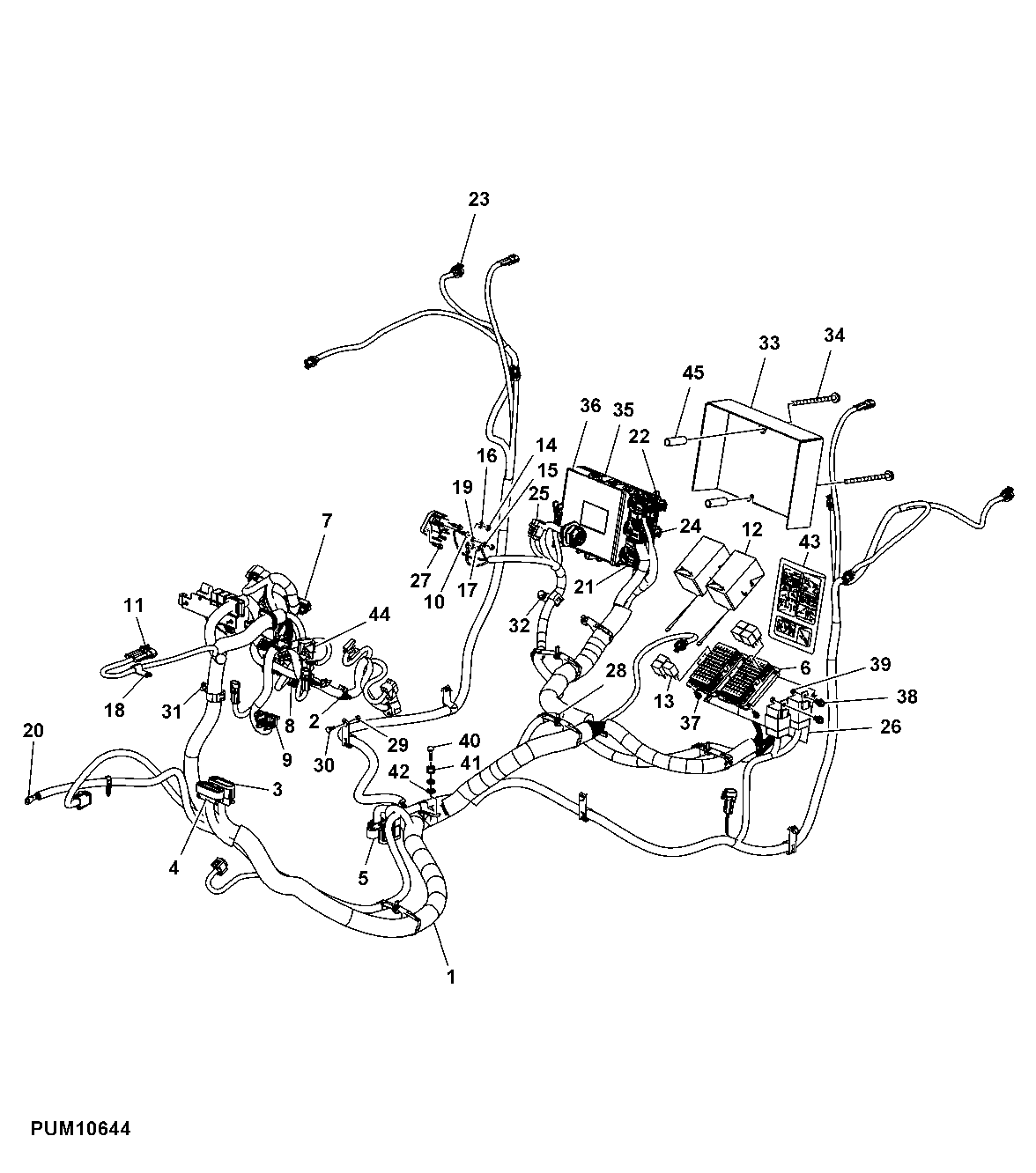

Rear Wiring Harness (IOOS) ( - 009999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ299125	1	Wiring Harness	(TOP SHAFT SYNCHRONISATION)
1	SJ299124	1	Wiring Harness	(POWRREVERSER)
1	SJ299402	1	Wiring Harness	(POWRREVERSER) (FOR SOUTH AFRICAN MARKET ONLY)
2	57M8902	5	Clip	-
3	57M8280	1	Elec. Connector Housing	-
4	57M8279	1	Elec. Connector Housing	-
5	57M8281	1	Elec. Connector Housing	-
6	RE269840	2	Fuse Box	-
7	57M7262	1	Elec. Connector Housing	-
8	RE46736	1	Electrical Connector Assy	-
9	57M7840	1	Elec. Connector Housing	(POWRREVERSER)
10	57M7556	1	Elec. Connector Terminal	-
11	57M7839	1	Electrical Connector Assy	-
12	R269934	2	Cover	-
13	RE194287	1	Fuse Holder	(POWRREVERSER)
14	14M7194	1	Nut	M6
15	24M7087	2	Washer	5.500 X 10 X 1 mm
16	24M7088	1	Washer	6.600 X 12 X 1.600 mm
17	14M7297	2	Nut	M5
18	57M8909	1	Clip	-
19	57M7547	2	Elec. Connector Terminal	-
20	57M8900	1	Elec. Connector Terminal	-
21	57M8523	1	Elec. Connector Housing	(POWRREVERSER)
22	57M8519	2	Elec. Connector Housing	-
23	57M7349	2	Elec. Connector Accessory	-
24	57M8527	1	Elec. Connector Housing	(TOP SHAFT SYNCHRONISATION)
24	57M8527	2	Elec. Connector Housing	(POWRREVERSER)
25	RE207311	2	Electronic Control Unit	(POWRREVERSER)
26	R275915	1	Cover	-
27	37M7061	2	Screw	M5 X 20
28	19M7865	4	Screw	M8 X 16
29	14M7273	5	Nut	M8
30	03M7183	4	Bolt	M8 X 16
31	37M7092	1	Screw	M8 X 16
32	19M7864	2	Screw	M8 X 12
33	R275826	1	Cover	-
34	19M7913	2	Screw	M8 X 90
35	RE526587	1	Engine Controller	-
35	SE502803	1	Engine Controller Reman	REMAN FOR RE526587
36	RE266604	1	Electronic Control Unit	(POWRREVERSER)
37	19M7640	8	Cap Screw	M5 X 12
38	19M7861	2	Screw	M6 X 10
39	14M7303	2	Flange Nut	M6
40	03M7187	1	Bolt	M8 X 35
41	28H3394	1	Bushing	0.493" X 0.675" X 1/2"
42	24M7055	7	Washer	8.400 X 16 X 1.600 mm
43	SU303691	1	Label	(POWRREVERSER)
43	SU303692	1	Label	(TOP SHAFT SYNCHRONISATION)
43	SU301688	1	Label	(POWRREVERSER) (FOR SOUTH AFRICAN MARKET ONLY)
44	RE234727	1	Starter Relay	-
45	M43325	2	Bushing	(TOP SHAFT SYNCHRONISATION)
46	19M7774	4	Screw	M6 X 12

Rear Wiring Harness (IOOS) ( - 009999)

Нет текстового описания
