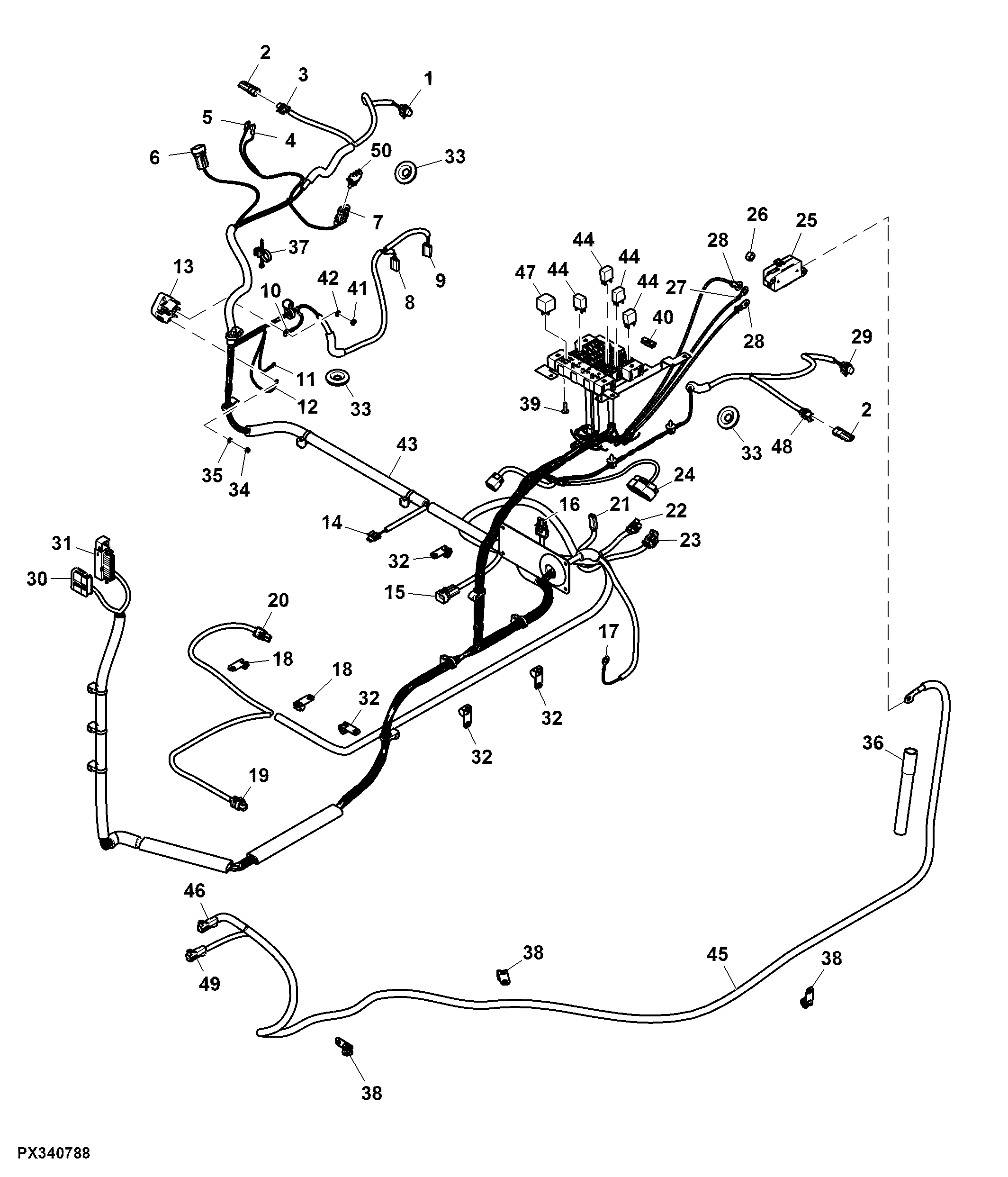

Cab Wiring Harness, W/O PowrReverser™ (2/6), Cab

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7349	1	Elec. Connector Accessory	Right Tail Lamp
2	57M7256	2	Elec. Connector Housing	Dust Cap
3	57M7254	1	Elec. Connector Housing	Right License Plate Lamp
4	57M8949	1	Elec. Connector Terminal	Power Outlet Positive
5	57M8949	1	Elec. Connector Terminal	Power Outlet Negative
6	57M7263	1	Elec. Connector Housing	Rear Wiper Option
7	R78054	1	Electrical Connector Assy	Convenience Outlet
8	R77476	1	Electrical Connector Assy	Front Washer Pump
9	R77476	1	Electrical Connector Assy	Rear Washer Pump
10	57M9196	1	Elec. Connector Terminal	Junction Block Accessory Power
11	57M8875	1	Elec. Connector Terminal	Junction Block Battery Power
12	57M8875	1	Elec. Connector Terminal	Junction Block Ground
13	RE186986	1	Junction Block	-
14	57M7328	1	Elec. Connector Housing	Seat Switch
15	57M7263	1	Elec. Connector Housing	Rear PTO Switch
16	RE12364	1	Electrical Connector Assy	Hand Brake Switch
17	57M7894	1	Elec. Connector Terminal	Chassis Ground
18	57M9435	3	Clamp	-
19	57M9726	1	Elec. Connector Housing	Fuel Level Sender
20	RE12363	1	Electrical Connector Assy	Neutral Start Switch
21	57M8815	1	Elec. Connector Housing	Flood Light
22	57M7309	1	Elec. Connector Housing	Trailer Connection Extension
23	57M7260	1	Elec. Connector Housing	Trailer Connection Extension
24	57M8279	1	Elec. Connector Housing	Roof Harness
25	RE48875	1	Junction Block	-
26	14M7274	1	Nut	M10
27	57M8865	1	Elec. Connector Terminal	-
28	57M8901	2	Elec. Connector Terminal	Junction Block Battery Power
29	57M7349	1	Elec. Connector Accessory	Left Tail Lamp
30	57M8281	1	Elec. Connector Housing	Front Console Connector 1
31	57M8944	1	Elec. Connector Housing	Front Console Connector 2
32	57M9432	4	Clamp	-
33	Z53033	3	Grommet	-
34	14M7297	2	Nut	M5
35	24M7087	2	Washer	5.500 X 10 X 1 mm
36	R281023	1	Hose	Water Valve Out
37	AH225365	1	Clip	-
38	57M8856	1	Elec. Connector Accessory	-
39	19M8649	4	Screw	M6 X 20
40	RE194287	1	Fuse Holder	-
41	14M7194	1	Nut	M6
42	24M7088	1	Washer	6.600 X 12 X 1.600 mm
43	SJ36904	1	Wiring Harness	SUB FOR SJ28986
44	57M8853	7	Relay	-
45	SJ15404	1	Battery Cable	-
46	57M8905	1	Elec. Connector Housing	Power Connector 2
47	RE68327	1	Relay	Module
48	57M7254	1	Elec. Connector Housing	Left License Plate Lamp
49	57M8905	1	Elec. Connector Housing	Power Connector 1
50	RE12364	1	Electrical Connector Assy	Convenience Outlet

Cab Wiring Harness, W/O PowrReverser™ (2/6), Cab
