Dual Mid SCV, W/ Joystick Control and Third Rear SCV, OOS (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7398	2	Cap Screw	M8 X 90
2	AT18904	2	Clamp	-
3	R244801	3	Spacer	-
4	14M7396	5	Lock Nut	M8
5	H112567	8	Plate	-
6	RE242351	1	Oil Line	Rockshaft, Rear Electro-Hydraulic
7	28H1496	3	Spacer	0.493" X 0.675" X 1-1/8"
8	19M7801	4	Screw	M8 X 60
9	L208072	2	Retainer	-
10	19M7811	2	Screw	M10 X 90
11	SU49483	1	Support	-
12	SJ31624	1	Oil Line	Rear SCV and Filter to Pump
13	SJ21992	2	Push Pull Cable	LGTH = 1330 mm
14	SJ31630	1	Oil Line	Mid SCV Pressure - Narrow
15	W42417	1	Plug	-
16	19M7868	1	Screw	M8 X 30
17	AH97280	1	Clip	-
18	W42418	1	Plug	-
19	R70350	2	Grommet	-
20	SJ24783	1	Selective Control Valve	-
21	19M7786	2	Screw	M10 X 30
22	SU49471	1	Bracket	-
23	19M7979	2	Screw	M8 X 55
24	T77858	7	O-Ring	-
25	51M7047	4	O-Ring	23.600 X 2.900 mm
26	SU32032	1	Bracket	-
27	19M8002	2	Cap Screw	M20 X 55
28	SJ31623	1	Oil Line	SCV to Pump
29	SU32033	1	Cover	Joystick
30	24M7055	2	Washer	8.400 X 16 X 1.600 mm
31	RE205003	1	Bracket	-
32	H135155	10	Clamp	-
33	R226713	2	Spacer	-
34	RE255757	4	Hyd. Quick-Connect Coupler	-
35	38H5019	4	Elbow Fitting	-
36	L209039	2	Pin	-
37	24M7207	1	Washer	8.400 X 24 X 2 mm
38	SJ30367	1	Bracket	-
39	SU44337	1	Label	Mid SCV
40	14M7298	1	Flange Nut	M8
41	19M8162	2	Screw	M10 X 40
42	W31909	1	Instruction Plate	Control Lever Instruction
43	03M7217	3	Bolt	M10 X 55
44	SJ22456	1	Multi-Functional Controller	-
45	R226714	1	Strap	-
46	W42419	1	Plug	-
47	W42416	1	Plug	-
48	SU51617	1	Hydraulic Hose	SCV Connector to Filter
49	SU32215	1	Tee Fitting	-
50	14M7400	3	Lock Nut	M10
51	SJ31620	1	Oil Line	Rear SCV to Filter and Pump
52	R105388	1	Tie Band	-
53	19M7866	2	Screw	M8 X 20
54	L208076	1	Housing	-
55	SJ22008	1	Control Lever	-
56	L208624	1	Boot	-
57	19M9730	1	Screw	M6 X 45
58	SU39360	1	Handle	-
59	SU39361	1	Handle	-
60	37M7435	3	Screw	-
61	21M7325	2	Screw	M5 X 30
62	14M7663	2	Lock Nut	M5
63	SJ16054	1	Selective Control Valve	-
64	RE46687	4	Drain Plug	-
65	51M7045	8	O-Ring	19.300 X 2.200 mm

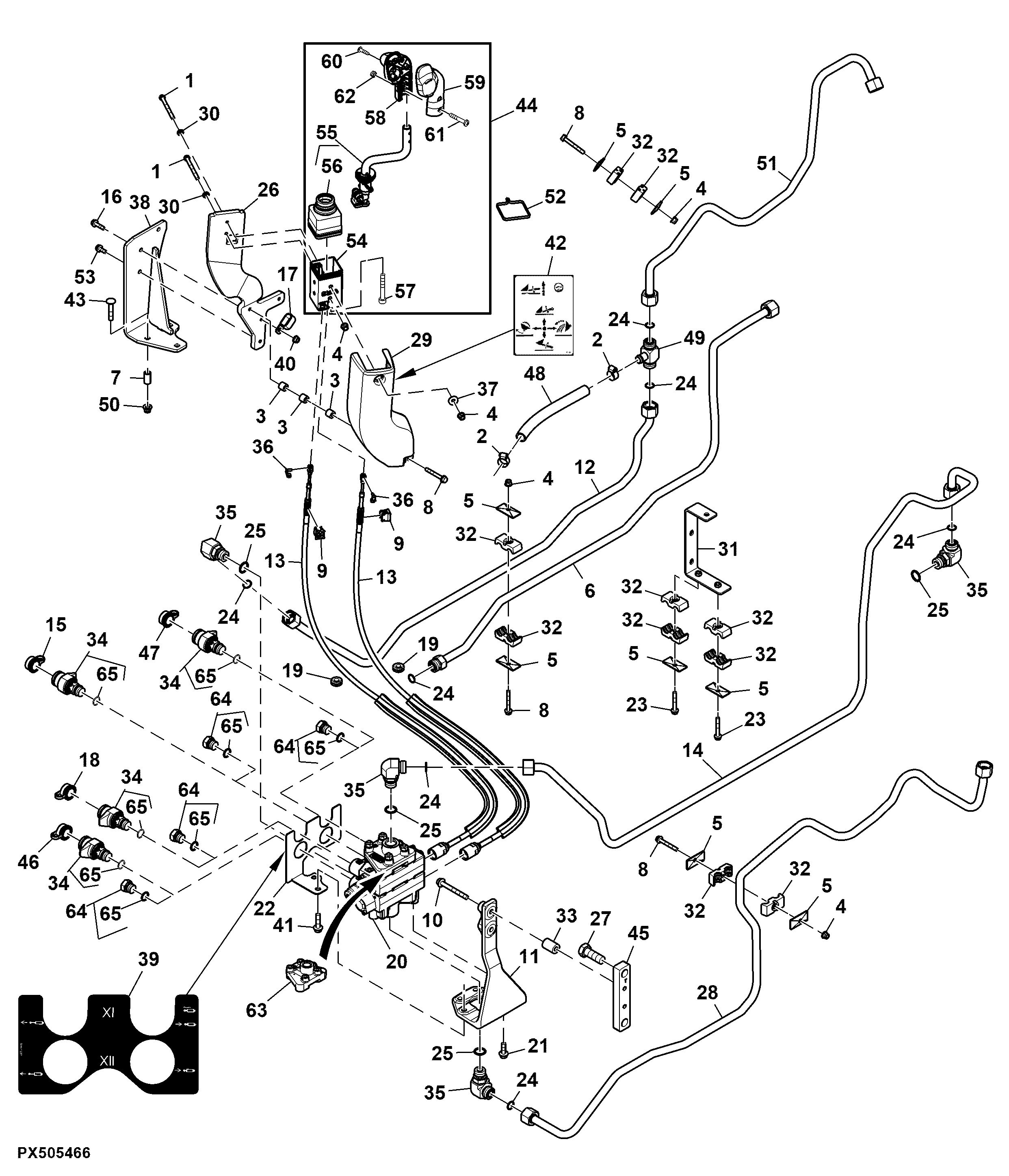

Dual Mid SCV, W/ Joystick Control and Third Rear SCV, OOS (1/3)
