Dual Mid SCV W/ Joystick Control and Third Rear SCV, Cab (1/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ30367	1	Bracket	-
2	L208072	2	Retainer	-
3	AT18904	2	Clamp	-
4	SU32215	1	Tee Fitting	-
5	T77858	9	O-Ring	-
6	RE205003	1	Bracket	-
7	SJ31620	1	Oil Line	Rear SCV to Filter and Pump
8	SU49471	1	Bracket	-
9	19M7801	4	Screw	M8 X 60
10	24M7055	2	Washer	8.400 X 16 X 1.600 mm
11	R226714	1	Strap	-
12	19M7979	2	Screw	M8 X 55
13	H112567	8	Plate	-
14	SJ24783	1	Selective Control Valve	-
15	28H1496	3	Spacer	0.493" X 0.675" X 1-1/8"
16	W31909	1	Instruction Plate	Control Lever Instruction
17	SU32032	1	Bracket	-
18	19M7811	2	Screw	M10 X 90
19	R244801	3	Spacer	-
20	19M8162	2	Screw	M10 X 40
21	W42416	1	Plug	-
22	SJ21992	1	Push Pull Cable	LGTH = 1330 mm
23	SJ31622	1	Oil Line	Hitch to Pump
24	SJ31628	1	Oil Line	Third Rear SCV to Hitch Line Port
25	T77613	1	O-Ring	-
26	19M7398	2	Cap Screw	M8 X 90
27	R226713	2	Spacer	-
28	03M7217	3	Bolt	M10 X 55
29	RE255757	4	Hyd. Quick-Connect Coupler	-
30	W42418	1	Plug	-
31	SJ31624	1	Oil Line	Rear SCV and Filter to Pump
32	SJ22456	1	Multi-Functional Controller	-
33	R70350	2	Grommet	-
34	24M7207	1	Washer	8.400 X 24 X 2 mm
35	AH97280	1	Clip	-
36	SU32033	1	Cover	Joystick
37	SU51617	1	Hydraulic Hose	-
38	SJ31623	1	Oil Line	SCV to Pump
39	19M7786	2	Screw	M10 X 30
40	19M8002	2	Cap Screw	M20 X 55
41	L209039	2	Pin	-
42	R105388	1	Tie Band	-
43	14M7396	5	Lock Nut	M8
44	H135155	10	Clamp	-
45	51M7047	4	O-Ring	23.600 X 2.900 mm
46	14M7298	1	Flange Nut	M8
47	19M7868	1	Screw	M8 X 30
48	SJ31630	1	Oil Line	Mid SCV Pressure - Narrow
49	14M7400	3	Lock Nut	M10
50	W42419	1	Plug	-
51	SU44337	1	Label	Mid SCV
52	W42417	1	Plug	-
53	19M7866	2	Screw	M8 X 20
54	SU49483	1	Support	-
55	38H5019	4	Elbow Fitting	-
56	SJ16054	1	Selective Control Valve	-
57	L208076	1	Housing	-
58	SJ22008	1	Control Lever	-
59	L208624	1	Boot	-
60	19M9730	1	Screw	M6 X 45
61	SU39360	1	Handle	-
62	SU39361	1	Handle	-
63	37M7435	3	Screw	-
64	21M7325	2	Screw	M5 X 30
65	14M7663	2	Lock Nut	M5
66	RE46687	4	Drain Plug	-
67	51M7045	8	O-Ring	19.300 X 2.200 mm
68	L165436	1	Weatherstrip	-

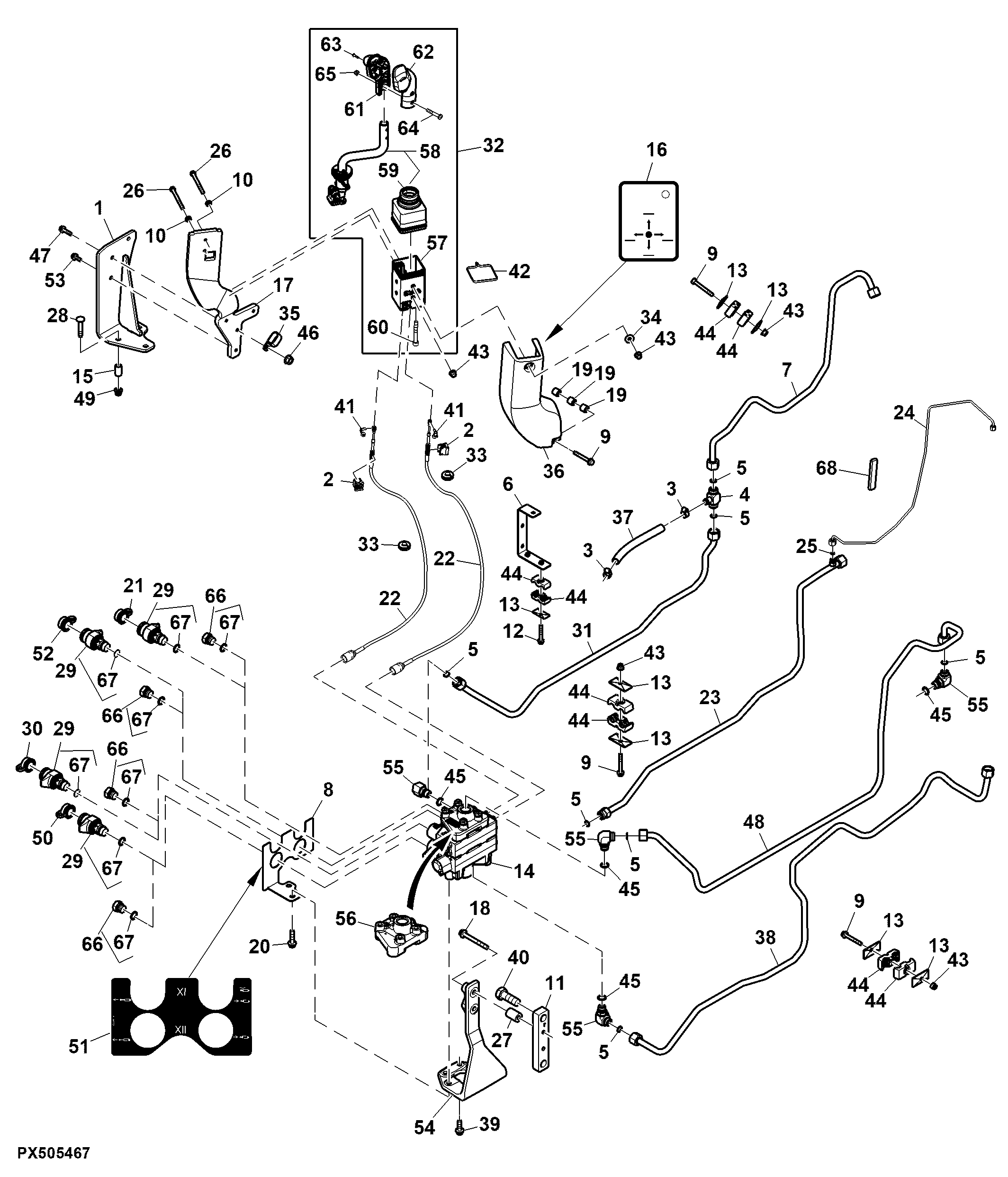

Dual Mid SCV W/ Joystick Control and Third Rear SCV, Cab (1/3)
