Dual Mid SCV W/ Joystick, OOS, Attachment, (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10636	1	SCV Controller	-
2	R218365	1	Label	Joystick Lock
3	SJ37717	1	Bracket	Mid SCV Lines Support
4	R218827	1	Shield	LH
5	99M7014	1	Plug	-
6	37M7355	2	Screw	-
7	H120847	12	Clamp	-
8	19M7167	2	Cap Screw	M10 X 25
9	R232632	1	Label	Loader Control Lever
10	19M7866	2	Screw	M8 X 20
11	R128357	2	Pin Fastener	-
12	14M7298	3	Flange Nut	M8
13	SJ37716	1	Bracket	-
14	R109390	2	Clamp	-
15	SJ37080	1	Oil Line	-
16	W42418	1	Plug	Dust Cover Cap, (Red)
17	W42419	1	Plug	Dust Cover Cap, (Yellow)
18	19M8069	2	Screw	M6 X 55
19	LVU16651	1	Grip	-
20	W42417	1	Plug	Dust Cover Cap, (Black)
21	38H5018	2	Elbow Fitting	-
22	51M7045	5	O-Ring	19.300 X 2.200 mm
23	T77932	6	O-Ring	-
24	H121168	8	Plate	-
25	SJ37081	1	Oil Line	-
26	R208766	1	Shield	RH
27	19M7775	8	Screw	M6 X 16
28	19M8319	6	Screw	M8 X 50
29	03M7216	1	Bolt	M8 X 50
30	14M7303	6	Flange Nut	M6
31	RE255758	4	Hyd. Quick-Connect Coupler	-
32	14M7396	4	Lock Nut	M8
33	RE207317	1	Basic Control Unit	-
34	RE230264	1	Housing	Joystick
35	RE230265	1	Control Lever	-
36	R230268	1	Boot	-
37	R230269	1	Lever	Joystick Lock
38	R230281	2	Bushing	-
39	R230282	2	Piston	-
40	R230562	2	Screw	-
41	R236243	1	Compression Spring	-
42	R236244	1	Ball	-
43	W42416	1	Plug	Dust Cover Cap, (Blue)
44	21H1486	2	Screw	0.190" X 1-1/8"
45	RE264338	1	Bracket	Joystick Mounting
46	37M7068	4	Screw	-
47	03M7187	2	Bolt	M8 X 35
48	11M7009	2	Cotter Pin	2 X 16 mm
49	38H5004	3	Adapter Fitting	-
50	37M7356	1	Screw	-
51	19M8832	1	Screw	M14 X 30
52	SJ37079	1	Oil Line	-
53	24M7054	4	Washer	6.400 X 12 X 1.600 mm
54	LVU16701	1	Grip	-
55	R249808	1	Bracket	SCV Cables
56	15H666	1	Pipe Plug	3/8"
57	L100285	4	Screw	-
58	SJ40009	2	Cable	LGTH = 786 mm, To Joystick
59	14M7158	4	Nut	M16
60	SJ32357	1	Bracket	-
61	L59635	2	Bushing	-
62	RE62316	1	Support	LH
63	03M7188	2	Bolt	M8 X 40
64	SJ32358	1	Bracket	-
65	T70920	2	Compression Spring	-
66	RE62315	1	Support	RH
67	RE179201	1	Selective Control Valve	-
68	LVA12162	2	Lock Nut	-

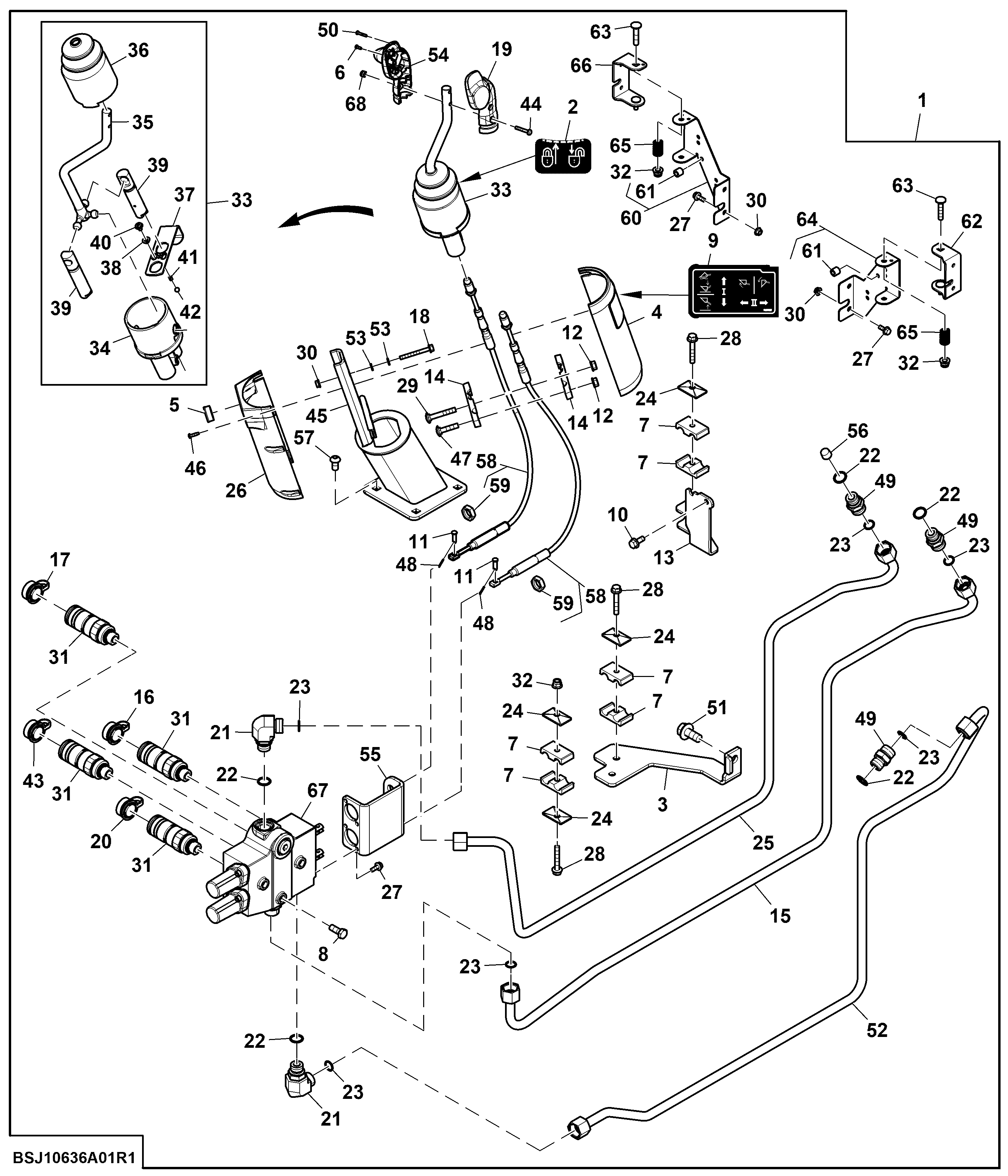

Dual Mid SCV W/ Joystick, OOS, Attachment, (1/2)
