Открытый узел

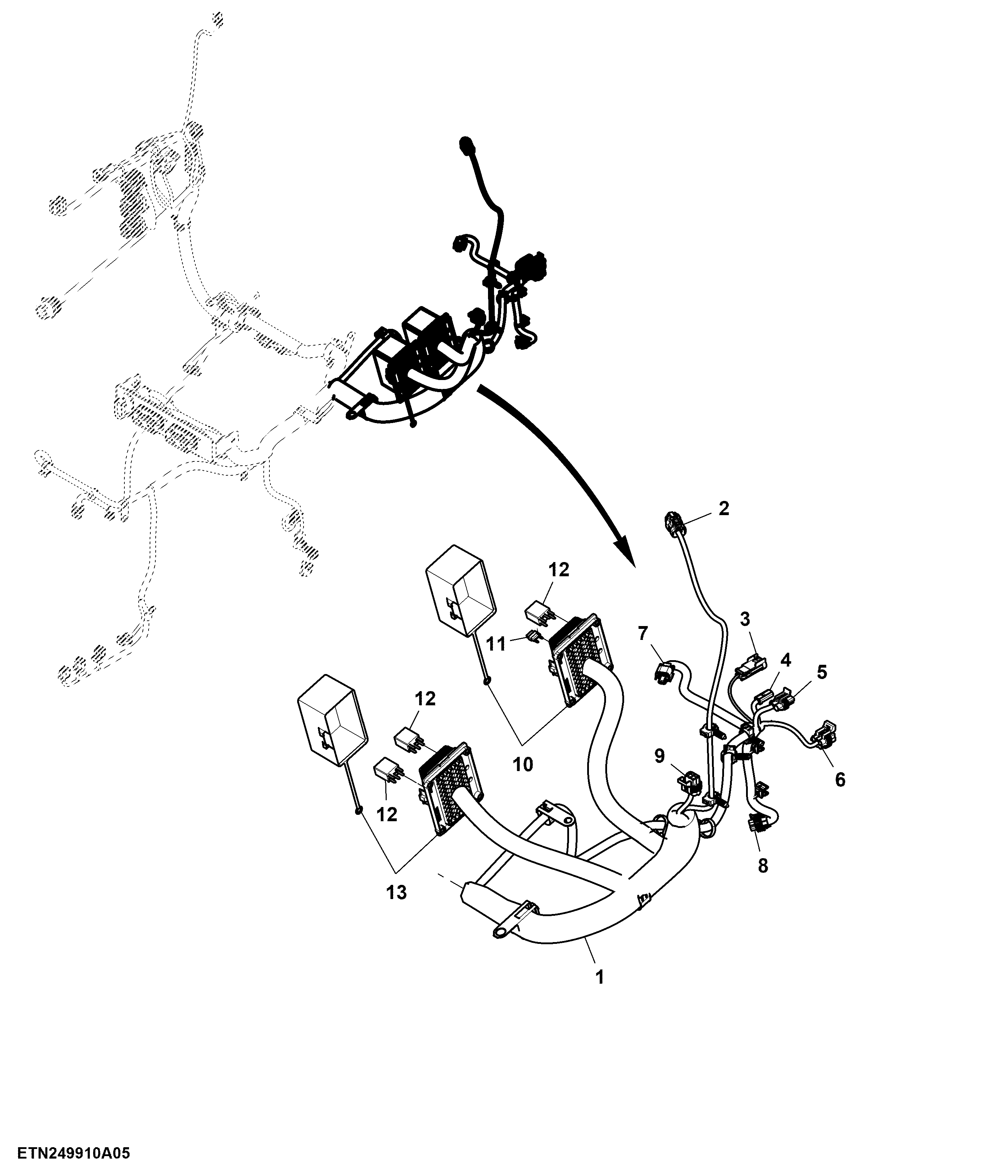

Chassis Wiring Harness, PowrReverser™ (5/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40601	1	Wiring Harness	-
2	57M9772	1	Elec. Connector Housing	Fuel Level Sender B021
2	57M9809	2	Elec. Connector Terminal	Cavity 1, 2
3	57M8215	1	Electrical Connector Assy	Reverse Alarm H023
3	57M9539	2	Elec. Connector Terminal	Cavity A, B
3	57M9223	2	Elec. Connector Seal	Cavity A, B
3	57M11557	1	Elec. Connector Accessory	-
4	57M9199	1	Elec. Connector Terminal	Cavity A
4	57M8815	1	Elec. Connector Housing	Work Lamp Connector X002
5	57M7309	1	Elec. Connector Housing	Trailer Connector X091-2
5	57M7491	2	Elec. Connector Terminal	Cavity A, B
5	57M9218	2	Elec. Connector Seal	Cavity A, B
5	57M7306	1	Elec.Connect Locking Device	-
6	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
6	57M7259	1	Elec. Connector Seal	Cavity F
6	57M7291	1	Electrical Connector Assy	-
6	57M9214	3	Elec. Connector Seal	Cavity B, D, E
6	57M7258	2	Elec. Connector Seal	Cavity A, C
6	57M9541	2	Elec. Connector Terminal	Cavity A, C
6	57M7260	1	Elec. Connector Housing	Trailer Connector X091-1
7	57M8924	1	Elec. Connector Housing	PTO Solenoid Y024
7	57M8560	2	Elec. Connector Terminal	Cavity A, B
7	57M8566	2	Elec. Connector Seal	Cavity A, B
7	57M8633	1	Elec. Connector Accessory	-
8	57M7346	1	Elec. Connector Housing	Rear PTO Sensor B023
8	57M10770	2	Elec. Connector Terminal	Cavity A, B
8	57M9215	2	Elec. Connector Seal	Cavity A, B
9	57M7260	1	Elec. Connector Housing	To Fender Harness X103, LH
9	57M7259	2	Elec. Connector Seal	Cavity A, C
9	57M7291	1	Electrical Connector Assy	-
9	57M7258	1	Elec. Connector Seal	Cavity D
9	57M9541	1	Elec. Connector Terminal	Cavity D
9	57M7494	3	Elec. Connector Terminal	Cavity B, E, F
9	57M9214	3	Elec. Connector Seal	Cavity B, E, F
10	57M7401	20	Elec. Connector Cavity Plug	Cavity A8, B1, B2, B3, B4, B5, B6, B7, B9, B10, E1, E2, E3, E4, E5, E6, E7, E8, E9, E10
10	57M8515	30	Elec. Connector Seal	Cavity F10, C10, C8, C4, F8, F6, C2, C3, A4, D6, A1, A2, A3, F5, A5, F2, D4, D5, A7, C9, A9, A10, D2, C6, F4, F3, D7, D9, B8, C7
10	57M7399	10	Elec. Connector Seal	Cavity C5, F1, C1, D3, D1, F9, D10, D8, A6, F7
10	57M8584	30	Elec. Connector Terminal	Cavity F10, C10, C8, C4, F8, F6, C2, C3, A4, D6, A1, A2, A3, F5, A5, F2, D4, D5, A7, C9, A9, A10, D2, C6, F4, F3, D7, D9, B8, C7
10	57M8585	10	Elec. Connector Terminal	Cavity C5, F1, C1, D3, D1, F9, D10, D8, A6, F7
10	RE269840	1	Fuse Box	Load Center LCS1
11	AN205067	2	Diode	-
12	SJ15809	11	Relay	12 V
13	57M8515	26	Elec. Connector Seal	Cavity A5, C5, A2, A3, A9, F10, B9, E1, D6, E2, D3, C6, D9, D4, B6, A8, B8, B7, A6, D5, B2, D1, C3, B3, A7, B5
13	57M7399	20	Elec. Connector Seal	Cavity A1, A4, C2, A10, E3, C8, B1, F3, F1, D2, B10, D10, D7, C1, B4, F2, F9, C4, C7, D8
13	57M8585	20	Elec. Connector Terminal	Cavity A1, A4, C2, A10, E3, C8, B1, F3, F1, D2, B10, D10, D7, C1, B4, F2, F9, C4, C7, D8
13	57M8584	26	Elec. Connector Terminal	Cavity A5, C5, A2, A3, A9, F10, B9, E1, D6, E2, D3, C6, D9, D4, B6, A8, B8, B7, A6, D5, B2, D1, C3, B3, A7, B5
13	57M7401	14	Elec. Connector Cavity Plug	Cavity C9, C10, E4, E5, E6, E7, E8, E9, E10, F4, F5, F6, F7, F8
13	RE180265	2	Diode	-
13	57M8163	6	Fuse	30 A
13	57M7691	1	Fuse	15 A
13	57M7690	3	Fuse	15 A
13	57M7689	8	Fuse	10 A
13	57M7688	1	Fuse	5 A
13	RE194287	1	Fuse Holder	-
13	RE269840	1	Fuse Box	Load Center LCS2

Chassis Wiring Harness, PowrReverser™ (5/7)

Нет текстового описания
