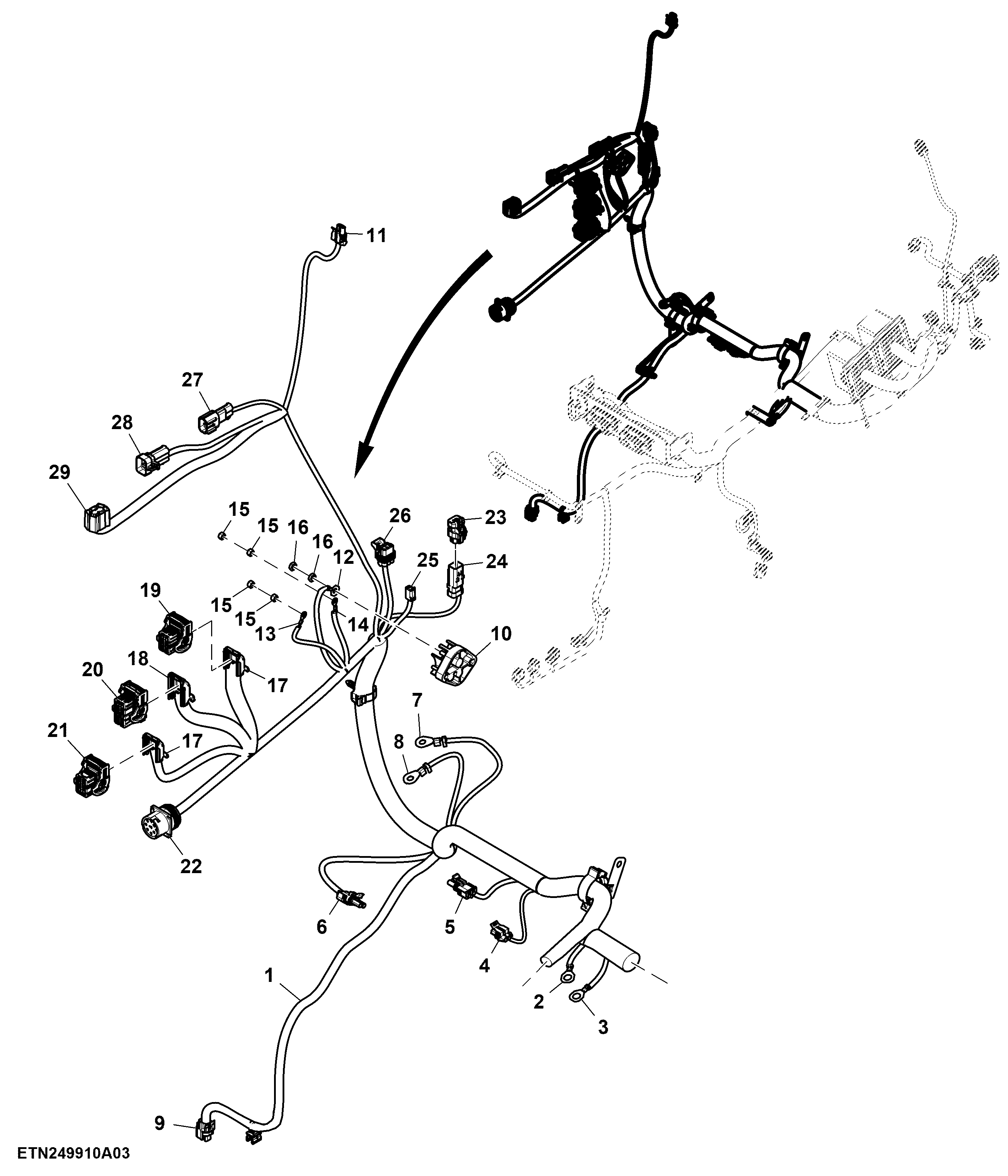

Chassis Wiring Harness, PowrReverser™ (3/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40601	1	Wiring Harness	-
2	57M8865	1	Elec. Connector Terminal	Platform Ground GND005A
3	57M8865	1	Elec. Connector Terminal	Platform Ground GND005A-2
4	57M7328	1	Elec. Connector Housing	Seat Switch S015
4	57M10770	1	Elec. Connector Terminal	Cavity A
4	57M7494	1	Elec. Connector Terminal	Cavity B
4	57M9215	1	Elec. Connector Seal	Cavity A
4	57M9214	1	Elec. Connector Seal	Cavity B
4	57M9712	1	Elec. Connector Accessory	-
5	RE12363	1	Electrical Connector Assy	Park Switch S126
5	57M7251	2	Elec. Connector Terminal	Cavity A, B
5	57M9549	2	Elec. Connector Seal	Cavity A, B
6	RE12363	1	Electrical Connector Assy	Neutral Switch S022
6	57M9549	2	Elec. Connector Seal	Cavity A, B
6	57M7251	2	Elec. Connector Terminal	Cavity A, B
7	57M8901	1	Elec. Connector Terminal	Chassis Ground GND003A
8	57M8901	1	Elec. Connector Terminal	Chassis Ground GND003A-2
9	57M8924	1	Elec. Connector Housing	Hydraulic Oil Temperature Sensor B027
9	57M8560	2	Elec. Connector Terminal	Cavity A, B
9	57M8566	2	Elec. Connector Seal	Cavity A, B
9	57M8633	1	Elec. Connector Accessory	-
10	RE186986	1	Junction Block	Junction Block X001
11	57M9712	1	Elec. Connector Accessory	-
11	57M9541	1	Elec. Connector Terminal	Cavity A
11	57M10770	1	Elec. Connector Terminal	Cavity B
11	57M7258	1	Elec. Connector Seal	Cavity A
11	57M9215	1	Elec. Connector Seal	Cavity B
11	57M9712	1	Elec. Connector Accessory	-
11	57M7254	1	Elec. Connector Housing	Rear Work Lamp E202
12	57M8871	1	Elec. Connector Terminal	Junction Block X001C
12	57M9196	1	Elec. Connector Terminal	-
13	57M8875	1	Elec. Connector Terminal	-
13	57M8875	11	Elec. Connector Terminal	Junction Block X001A
14	57M8875	11	Elec. Connector Terminal	Junction Block X001B
14	57M8875	1	Elec. Connector Terminal	-
15	14M7297	4	Nut	M5
16	14M7194	2	Nut	M6
17	57M10604	2	Elec. Connector Housing	-
18	57M10613	1	Elec. Connector Housing	-
19	57M10334	11	Elec. Connector Cavity Plug	Cavity E3, E4, F1, F2, F3, F4, G2, G3, G4, H3, H4
19	57M10514	11	Elec. Connector Terminal	Cavity A1, A3, A4, B1, B2, B3, B4, C3, C4, E1, E2
19	57M10333	7	Elec. Connector Cavity Plug	Cavity A2, C1, C2, D1, D2, D3, D4
19	57M10609	1	Elec. Connector Housing	Transmission Control A023-J1
19	57M10331	3	Elec. Connector Terminal	Cavity H1, G1, H2
20	57M10615	1	Elec. Connector Housing	Transmission Control A023-J2
20	57M10331	7	Elec. Connector Terminal	Cavity L2, M1, M3, L4, L1, M2, M4
20	57M10514	21	Elec. Connector Terminal	Cavity E3, B2, F2, G4, K4, F1, G1, J2, A3, F3, K2, K1, A1, B1, H4, H2, D4, E4, F4, D2, J4
20	57M10333	19	Elec. Connector Cavity Plug	Cavity A2, A4, B3, B4, C1, C2, C3, C4, D1, D3, E1, E2, G2, G3, H1, H3, J1, J3, K3
20	57M10334	1	Elec. Connector Cavity Plug	Cavity L3
21	57M10606	1	Elec. Connector Housing	Transmission Control A023-J3
21	57M10514	6	Elec. Connector Terminal	Cavity A4, B3, C2, D4, E1, E4 ,
21	57M10333	27	Elec. Connector Cavity Plug	Cavity A1, A2, A3, B1, B2, B4, C1, C3, C4, D1, D2, D3, D4, E2, E3, F1, F2, F3, F4, G1, G2, G3, G4, H1, H2, H3, H4
22	57M8164	4	Elec. Connector Terminal	Cavity A, B, C, D ,
22	R78069	5	Elec. Connector Cavity Plug	Cavity E, F, G, H, J
22	57M7919	1	Elec. Connector Housing	Service Advisor Connector X021
23	57M11134	1	Elec. Connector Housing	-
24	57M9776	1	Elec. Connector Housing	CAN Terminal (Cab/Operation Station) R021
24	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
25	57M7789	1	Elec. Connector Housing	Electro-Hydraulic Rear PTO Switch S123
25	57M8293	3	Elec. Connector Terminal	Cavity A, B, C
25	57M7724	1	Electrical Connector Assy	-
26	57M7260	1	Elec. Connector Housing	To Fender Harness X102, RH
26	57M7259	2	Elec. Connector Seal	Cavity A, C
26	57M7291	1	Electrical Connector Assy	-
26	57M7258	1	Elec. Connector Seal	Cavity D
26	57M9214	3	Elec. Connector Seal	Cavity B, E, F
26	57M9541	1	Elec. Connector Terminal	Cavity D
26	57M7494	3	Elec. Connector Terminal	Cavity B, E, F
27	57M7304	1	Elec. Connector Housing	Rear Worklamp Switch S901
27	57M7527	1	Elec. Connector Terminal	Cavity A
27	57M7285	1	Elec. Connector Terminal	Cavity B
27	57M9218	1	Elec. Connector Seal	Cavity A
27	57M9549	1	Elec. Connector Seal	Cavity B
28	57M7263	1	Elec. Connector Housing	MFWD Switch S029
28	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
28	57M9214	3	Elec. Connector Seal	Cavity A, B, C
28	57M7291	1	Electrical Connector Assy	-
28	57M7259	3	Elec. Connector Seal	Cavity D, E, F
29	57M10913	1	Elec. Connector Housing	Hazard Switch S092
29	57M9461	2	Elec. Connector Terminal	Cavity 2, 3

Chassis Wiring Harness, PowrReverser™ (3/7)
