Main Wiring Harness, SyncShuttle™, OOS (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ28985	1	Wiring Harness	ORDER SJ32904
2	57M8484	1	Elec. Connector Housing	-
3	57M7328	1	Elec. Connector Housing	-
4	57M8281	1	Elec. Connector Housing	-
5	57M7260	1	Elec. Connector Housing	Trailer Jumper 1
6	57M7260	1	Elec. Connector Housing	Fender Extension Harness, RH
7	57M7260	1	Elec. Connector Housing	Fender Extension Harness, LH
8	57M7260	1	Elec. Connector Housing	Instrumentation J2
9	Z61311	1	Elec. Connector Housing	Accessory Relay
10	Z61311	1	Elec. Connector Housing	Tail/ Clearance/ License Relay
11	Z61311	1	Elec. Connector Housing	Neutral PTO Off Relay
12	Z61311	1	Elec. Connector Housing	Fuel Flow Relay
13	Z61311	1	Elec. Connector Housing	Neutral Latch Relay
14	57M11580	1	Elec. Connector Accessory	-
15	T28583	7	Elec. Connector Housing	-
16	57M8905	1	Elec. Connector Housing	Power Cable 1
17	57M8905	1	Elec. Connector Housing	Power Cable 2
18	57M9772	1	Elec. Connector Housing	Fuel Level Sender
19	57M7262	1	Elec. Connector Housing	Instrumentation J1
20	RE46736	1	Electrical Connector Assy	Key Switch
21	57M8908	1	Clip	-
22	57M7309	1	Elec. Connector Housing	Trailer Jumper 2
23	57M7183	1	Elec. Connector Accessory	Turn Signal Light Switch
24	RE186986	1	Junction Block	-
25	57M8280	1	Elec. Connector Housing	Engine Harness
26	57M8875	2	Elec. Connector Terminal	-
27	R107991	2	Clamp	-
28	57M10425	3	Elec. Connector Accessory	-
29	57M10962	3	Elec. Connector Terminal	-
30	57M8869	2	Elec. Connector Terminal	-
31	57M7256	1	Elec. Connector Housing	Start Relay Control
32	57M10963	3	Elec. Connector Terminal	-
33	57M7263	1	Elec. Connector Housing	Rear PTO Switch
34	57M7839	1	Electrical Connector Assy	Hood Harness
35	T28585	2	Electrical Connector Assy	-
36	57M8056	1	Relay Module	-
37	ET15766	1	Elec. Connector Housing	-
38	57M10426	2	Elec. Connector Accessory	-
39	RE12364	1	Electrical Connector Assy	-
40	57M8996	1	Elec. Connector Terminal	Audible Alarm 2
41	57M8996	1	Elec. Connector Terminal	Audible Alarm 1
42	57M7261	1	Elec. Connector Housing	Instrumentation J3
43	57M7261	1	Elec. Connector Housing	Brake Switch
44	57M7560	2	Elec. Connector Terminal	-
45	57M8871	4	Elec. Connector Terminal	-
46	57M7255	1	Elec. Connector Housing	Beacon Light Switch
47	R77480	1	Electrical Connector Assy	-
48	RE12363	1	Electrical Connector Assy	Neutral Start Switch

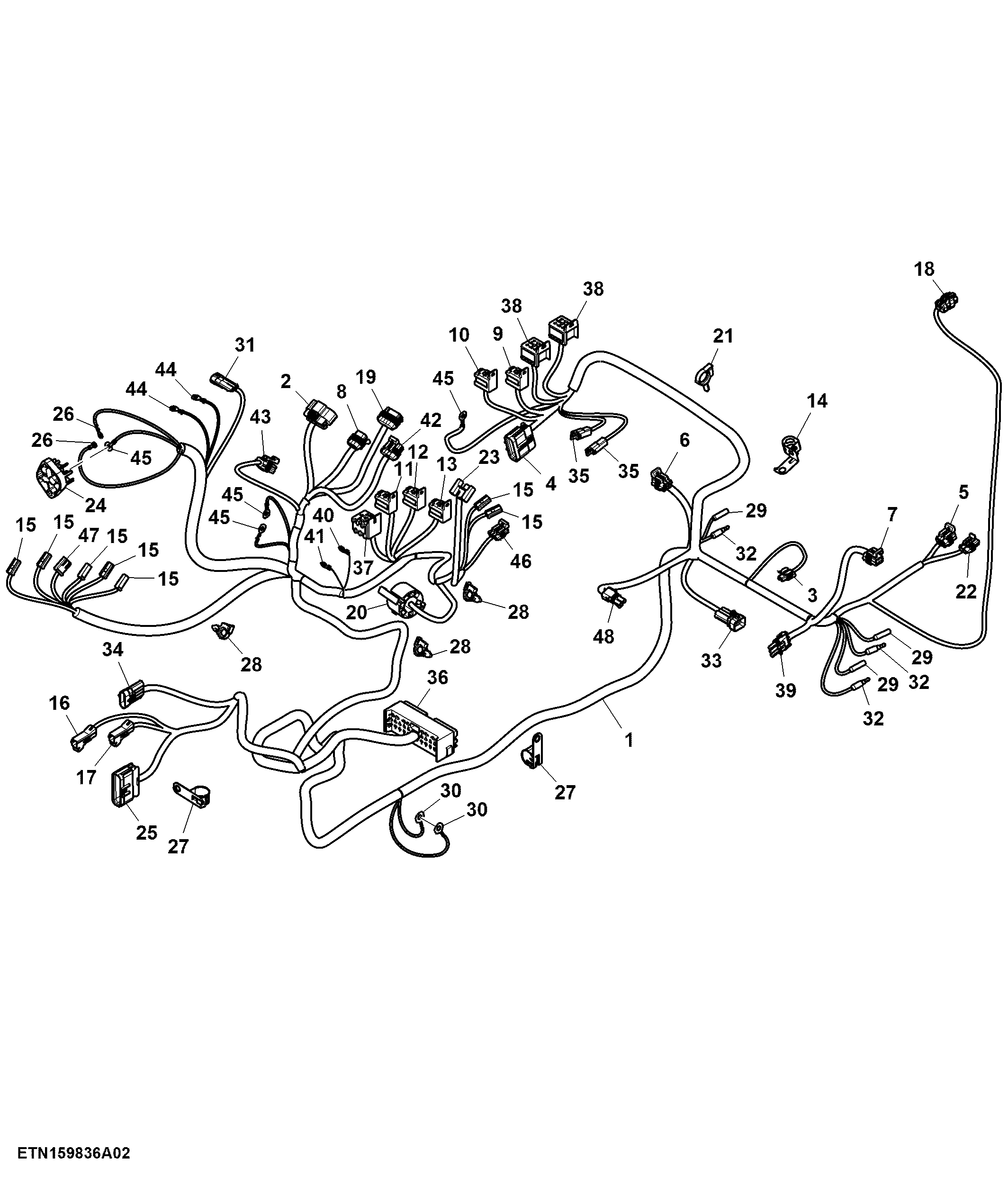

Main Wiring Harness, SyncShuttle™, OOS (1/2)
