Main Wiring Harness, PowrReveser™, OOS (4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

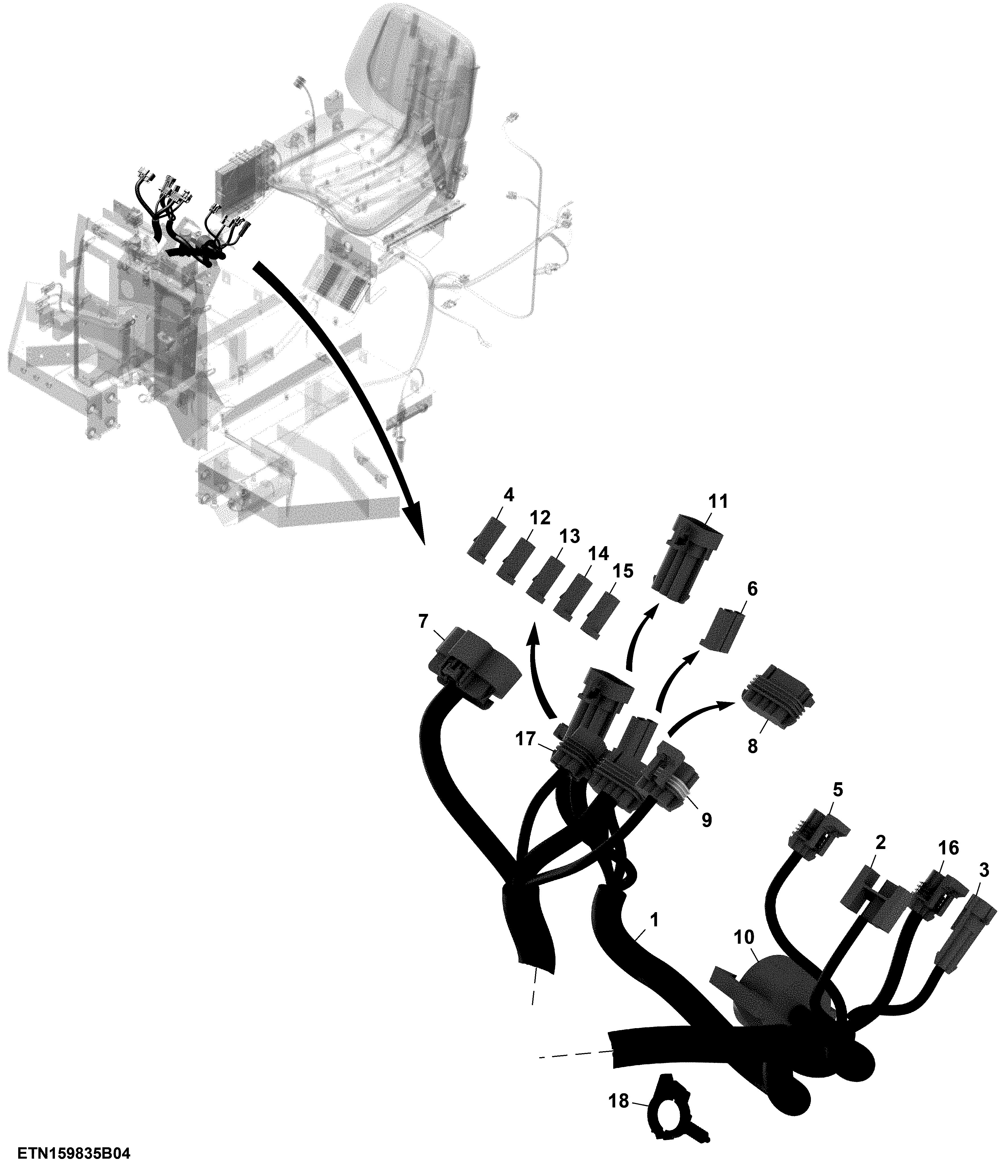

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32903	1	Wiring Harness	-
1	SJ28984	1	Wiring Harness	ORDER SJ32903
2	57M7183	1	Elec. Connector Accessory	Turn Signal Light Switch 46
3	57M7985	1	Electrical Connector Assy	Roll Mode Switch 44
3	57M7289	1	Elec.Connect Locking Device	-
3	R104919	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
4	R77502	1	Tube	Light Switch 48A
4	57M7172	1	Elec. Connector Terminal	-
5	57M7255	1	Elec. Connector Housing	Becon Light Switch 43
5	57M7290	1	Elec. Connector Accessory	-
5	R104846	3	Elec. Connector Terminal	Cavity A, B, C
5	57M7258	3	Elec. Connector Seal	Cavity A, B, C
6	R77480	1	Electrical Connector Assy	Horn Switch 49
6	57M9199	2	Elec. Connector Terminal	Cavity 1, 2
7	57M8484	1	Elec. Connector Housing	Instrumentation J4 54
7	57M8321	1	Elec. Connector Terminal	Cavity J
7	57M9223	6	Elec. Connector Seal	Cavity A, M, N, P, R, S
7	57M8300	1	Elec. Connector Terminal	Cavity J
7	57M8299	6	Elec. Connector Terminal	Cavity A, M, N, P, R, S
7	57M9919	1	Elec. Connector Accessory	-
8	57M7262	1	Elec. Connector Housing	Instrumentation J1 52
8	57M8907	1	Elec.Connect Locking Device	-
8	57M7494	3	Elec. Connector Terminal	Cavity B, C, G
8	R104846	3	Elec. Connector Terminal	Cavity A, D, H
8	57M7258	2	Elec. Connector Seal	Cavity D, H
8	57M9215	4	Elec. Connector Seal	Cavity A, B, C, G
9	57M9215	3	Elec. Connector Seal	Cavity E, F, G
9	57M7296	1	Elec. Connector Accessory	-
9	57M7261	1	Elec. Connector Housing	Instrumentation J3 51
9	57M7494	3	Elec. Connector Terminal	Cavity E, F, G
10	L78202	1	Elec. Connector Housing	Key Switch 47, SUB FOR R250370
10	57M7429	2	Elec. Connector Terminal	Cavity 1, 3
10	57M7511	3	Elec. Connector Terminal	Cavity 4, 5, 6
10	57M8292	1	Elec. Connector Terminal	Cavity 7
11	57M7263	1	Elec. Connector Housing	MFWD Switch 50
11	57M7291	1	Electrical Connector Assy	-
11	57M7495	3	Elec. Connector Terminal	Cavity A, B, C
11	57M9215	3	Elec. Connector Seal	Cavity A, B, C
12	R77502	1	Tube	Light Switch W 48B
12	57M7172	1	Elec. Connector Terminal	-
13	R77502	1	Tube	Light Switch FL 48C
13	57M7172	1	Elec. Connector Terminal	-
14	R77502	1	Tube	Light Switch HD1 48D
14	57M7172	1	Elec. Connector Terminal	-
15	R77502	1	Tube	Light Switch HD2 48E
15	57M7172	1	Elec. Connector Terminal	-
16	57M7255	1	Elec. Connector Housing	Power Shuttle Control 45
16	57M7290	1	Elec. Connector Accessory	-
16	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
16	57M9215	3	Elec. Connector Seal	Cavity A, B, C
17	57M7260	1	Elec. Connector Housing	Instrumentation J2 53
17	57M7291	1	Electrical Connector Assy	-
17	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
17	R104846	1	Elec. Connector Terminal	Cavity A
17	57M9215	4	Elec. Connector Seal	Cavity A, B, D, E
18	57M8908	1	Clip	-
