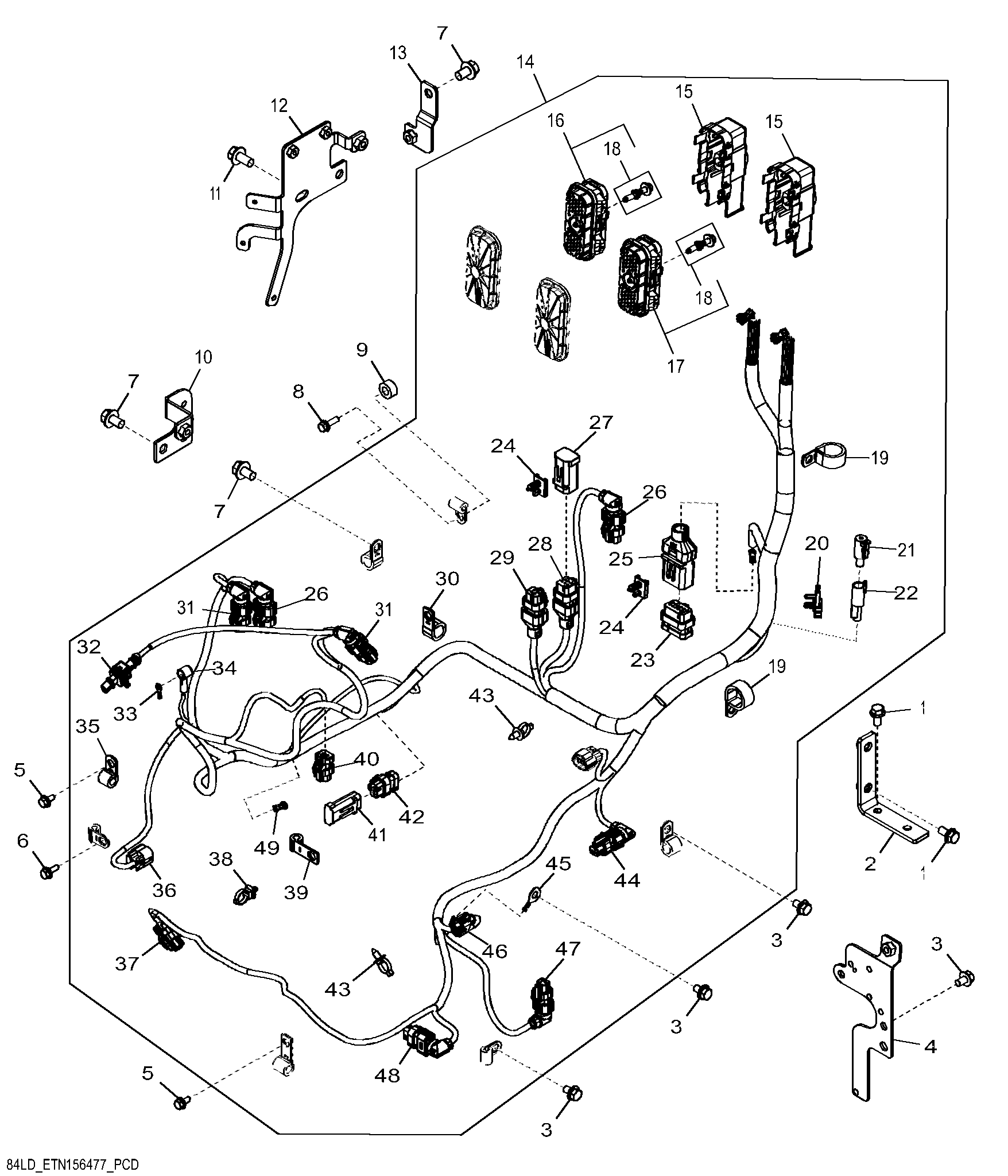

84LD Engine Wiring Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	2	Screw	M8 X 16
2	RE558190	1	Bracket	-
3	19M7864	6	Screw	M8 X 12
4	RE570324	1	Bracket	-
5	19M7774	4	Screw	M6 X 12
6	19M7775	1	Screw	M6 X 16
7	19M7783	5	Screw	M10 X 16
8	19M7862	1	Screw	M6 X 20
9	R518779	1	Spacer	-
10	RE555179	1	Bracket	-
11	19M7784	1	Screw	M10 X 20
12	DZ100521	1	Bracket	-
13	RE559522	1	Bracket	-
14	DZ106972	1	Wiring Harness	-
15	R528122	2	Elec. Connector Accessory	-
16	RE538504	1	Elec. Connector Accessory	-
17	RE538503	1	Elec. Connector Accessory	-
18	RE545538	2	Bolt Kit	-
19	57M12125	2	Clamp	-
20	57M9717	1	Elec.Connect Locking Device	-
21	57M7762	1	Electrical Connector Assy	-
22	57M7763	1	Elec. Connector Housing	-
23	57M9800	1	Elec. Connector Housing	-
24	57M9940	2	Elec. Connector Accessory	-
25	57M9804	1	Elec. Connector Housing	-
25	57M9844	1	Elec. Connector Accessory	-
26	57M9781	2	Elec. Connector Housing	-
26	57M10156	2	Elec. Connector Accessory	-
27	57M11336	1	Elec. Connector Accessory	-
28	57M9787	1	Elec. Connector Housing	-
28	57M9841	1	Elec. Connector Accessory	-
29	57M9818	1	Elec. Connector Housing	-
29	57M9840	1	Elec. Connector Accessory	-
30	57M13298	1	Clamp	-
31	57M9773	2	Elec. Connector Housing	-
31	57M10155	2	Elec. Connector Accessory	-
32	57M9577	1	Elec. Connector Housing	-
32	57M10118	1	Elec. Connector Housing	-
33	57M7559	1	Elec. Connector Terminal	-
34	T103917	1	Boot	-
35	57M12128	1	Clamp	-
36	57M8601	1	Elec. Connector Housing	-
37	57M9775	1	Elec. Connector Housing	-
38	57M11231	2	Clip Kit	-
39	57M13289	1	Clamp	-
40	57M9773	3	Elec. Connector Housing	-
41	57M11334	1	Elec. Connector Accessory	-
42	57M9780	1	Elec. Connector Housing	-
43	RE258807	13	Tie Band	-
44	57M9774	1	Elec. Connector Housing	-
44	57M10155	1	Elec. Connector Accessory	-
45	57M8868	1	Elec. Connector Terminal	-
46	57M9828	1	Elec. Connector Housing	-
47	57M9772	1	Elec. Connector Housing	-
47	57M10155	1	Elec. Connector Accessory	-
48	57M9782	1	Elec. Connector Housing	-
48	57M10156	1	Elec. Connector Accessory	-
49	57M7547	1	Elec. Connector Terminal	-
