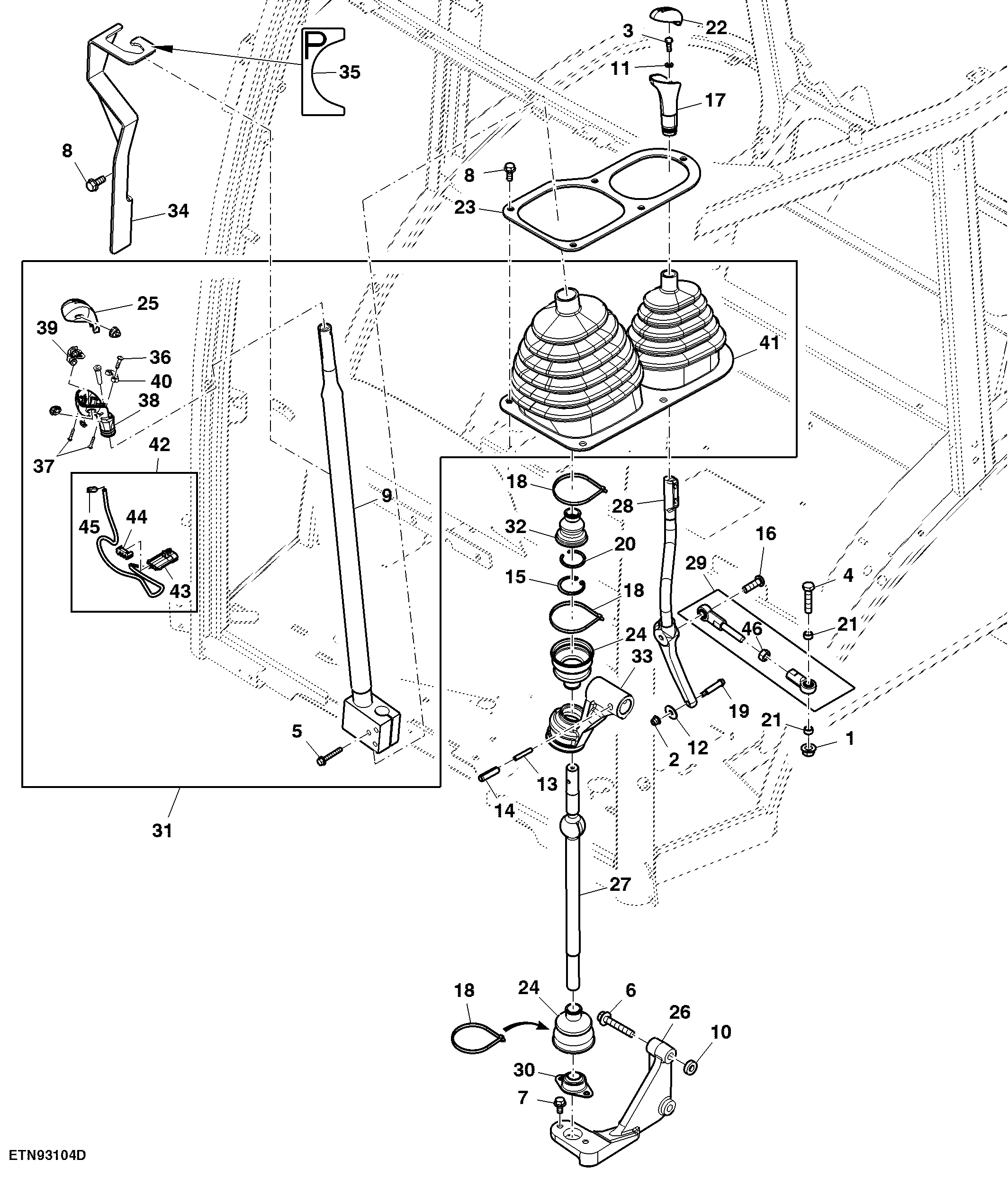

Range and Gear Shift Lever, High / Low, Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	1	Flange Nut	M10
2	14M7397	1	Lock Nut	M6
3	19M7560	1	Cap Screw	M6 X 16
4	19M7572	1	Cap Screw	M10 X 45
5	19M7797	3	Screw	M6 X 40
6	19M7807	2	Screw	M10 X 60
7	19M7865	2	Screw	M8 X 16
8	19M7866	7	Screw	M8 X 20
9	SJ16256	1	Gearshift Lever	Upper
10	24H1781	2	Washer	13/32" X 7/8" X 1/4"
11	24M7088	1	Washer	6.600 X 12 X 1.600 mm
12	24M7207	1	Washer	8.400 X 24 X 2 mm
13	34M7042	1	Spring Pin	6 X 40 mm
14	34M7053	1	Spring Pin	10 X 40 mm
15	40M1860	1	Snap Ring	-
16	H148835	1	Bolt	-
17	L77805	1	Knob	Range Shift
18	R105388	3	Tie Band	USE WITH RE65233
18	R105388	2	Tie Band	USE WITH SJ39436
19	R125967	1	Screw	-
20	R137143	1	Ring	-
21	R171428	2	Washer	-
22	R243650	1	Insert	Range Shift
23	R244234	1	Retainer	-
24	R268680	1	Boot	USE WITH SJ39436
24	R268680	2	Boot	USE WITH RE65233
25	SU24543	1	Insert	Gearshift
26	R283367	1	Support	-
27	R283395	1	Gearshift Lever	Lower
28	SJ21058	1	Lever	Range Shift SUB FOR SJ15677
29	RE258370	1	Link	-
30	SJ39436	1	Bearing	SUB FOR RE65233
31	SJ16257	1	Gearshift Lever	-
32	SU20184	1	Boot	-
33	SU27755	1	Lever	Speed Cross Shaft
34	SJ15428	1	Indicator	NLA
35	SU27417	1	Label	NLA
36	37M7179	2	Screw	-
37	37M7389	3	Screw	-
38	L157158	1	Grip	Gearshift
39	L157161	1	Switch	High / Low Push Button
40	L157162	1	Clip	-
41	R244233	1	Boot	-
42	RE245389	1	Wiring Harness	Gearshift Lever
43	57M7257	1	Elec. Connector Housing	To Chassis Harness
43	57M7495	3	Elec. Connector Terminal	Cavity A, B, C
43	57M9215	3	Elec. Connector Seal	Cavity A, B, C
44	57M7290	1	Elec. Connector Accessory	-
45	57M8516	1	Elec. Connector Housing	Shifter Switch
46	14M7274	1	Nut	M10
