Front Console Wiring Harness, PowrReverser™, FOOS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	57M9432	2	Clamp	-
3	19M7865	7	Screw	M8 X 16
4	RE262484	1	Diode	Diode Module
5	57M8756	1	Elec. Connector Accessory	-
6	SJ15809	1	Relay	Neutral Start Relay
7	Z61311	1	Elec. Connector Housing	-
8	57M8484	1	Elec. Connector Housing	Instrumentation J4
9	57M9956	1	Elec. Connector Housing	Exhaust Filter Regen Switch
10	57M7263	1	Elec. Connector Housing	MFWD Switch
11	57M7260	1	Elec. Connector Housing	Instrumentation J2
12	57M7262	1	Elec. Connector Housing	Instrumentation J1
13	57M7262	1	Elec. Connector Housing	Multifunction Hi-Lo Switch
14	57M7255	1	Elec. Connector Housing	Power Shuttle Control
15	57M7985	1	Electrical Connector Assy	Roll Mode Switch
16	57M7256	1	Elec. Connector Housing	Start Relay Control
17	57M11580	1	Elec. Connector Accessory	-
18	57M8873	3	Elec. Connector Terminal	Audible Alarm
19	57M8866	1	Elec. Connector Terminal	Chassis Ground
20	57M7260	1	Elec. Connector Housing	FNR Switch
21	57M7840	1	Elec. Connector Housing	Clutch Assembly
22	57M10299	1	Elec. Connector Housing	Key/Light Switches

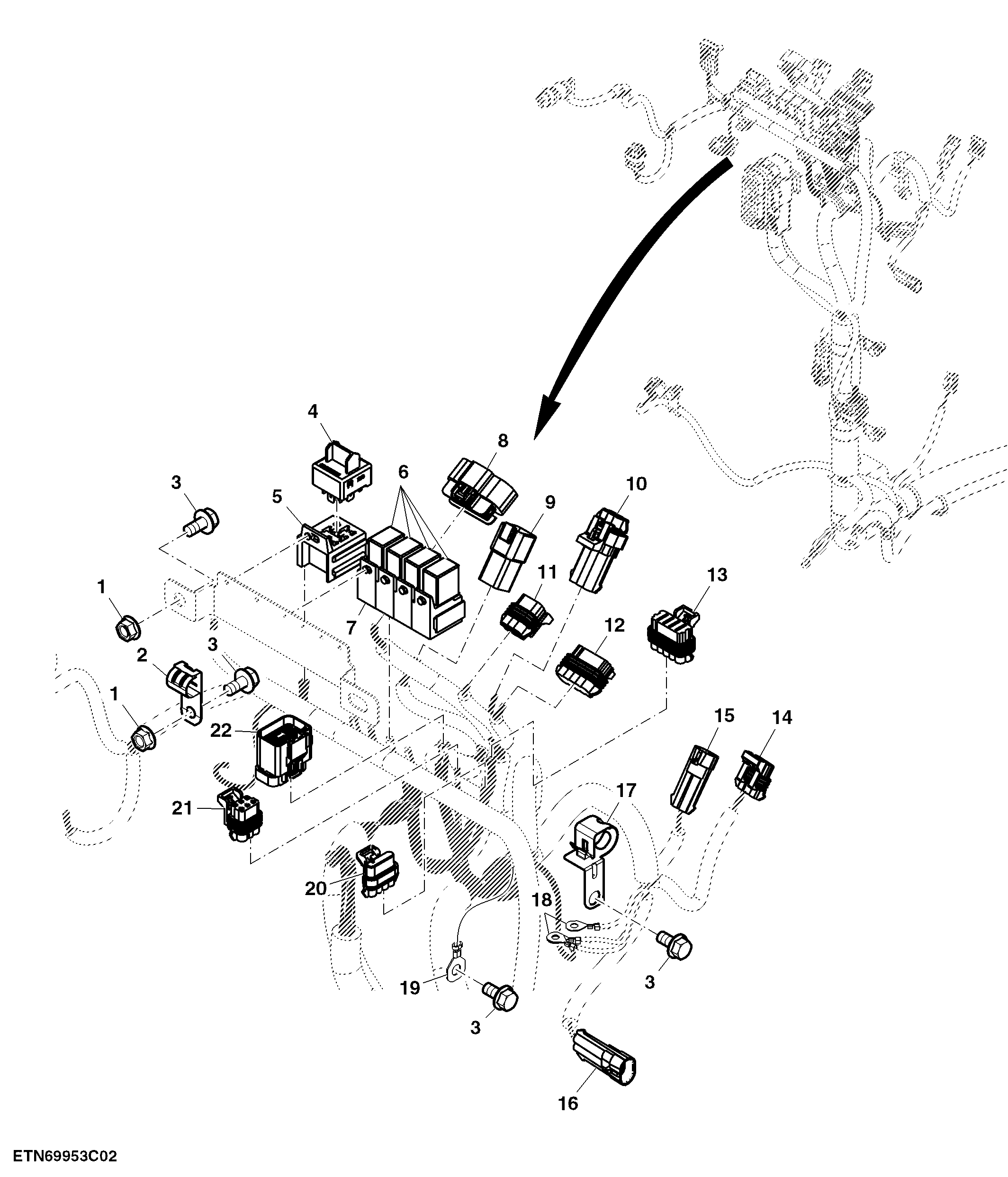

Front Console Wiring Harness, PowrReverser™, FOOS
