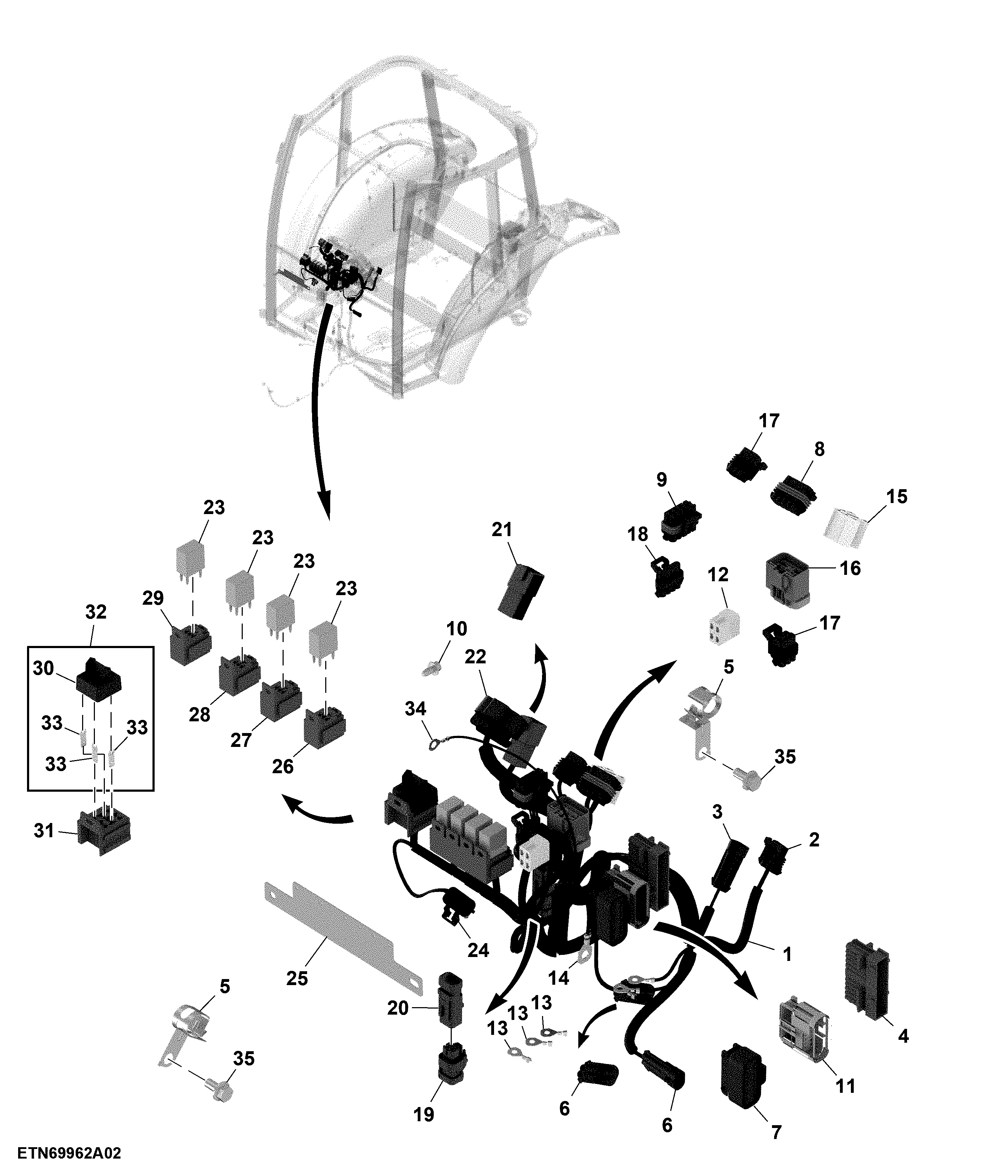

Front Console Wiring Harness, PowrReverser™ (2/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ18796	1	Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Shuttle Control Switch 22
2	57M7290	1	Elec. Connector Accessory	-
2	R104846	3	Elec. Connector Terminal	Cavity A, B, C
2	57M9215	3	Elec. Connector Seal	Cavity A, B, C
3	57M7985	1	Electrical Connector Assy	-
4	57M8732	16	Elec. Connector Terminal	Cavity 3, 5, 6, 8, 9-11, 13, 14, 17, 18, 20-24
4	57M8515	16	Elec. Connector Seal	Cavity 3, 5, 6, 8, 9-11, 13, 14, 17, 18, 20-24
4	57M7399	2	Elec. Connector Seal	Cavity 1, 2
4	57M9158	2	Elec. Connector Terminal	Cavity 1, 2
4	57M8943	1	Elec.Connect Locking Device	-
4	57M8070	1	Elec. Connector Housing	Cab Connector 3 03
5	57M11580	2	Elec. Connector Accessory	-
6	57M7256	1	Elec. Connector Housing	Audible Alarm 16
6	57M7289	2	Elec.Connect Locking Device	-
6	R104919	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M7289	1	Elec.Connect Locking Device	-
7	57M9215	2	Elec. Connector Seal	Cavity A, B
7	R104919	2	Elec. Connector Terminal	Cavity A, B
7	57M7256	1	Elec. Connector Housing	Start Relay Control 20
8	57M7262	1	Elec. Connector Housing	Instrument Cluster J1 24
8	57M8907	1	Elec.Connect Locking Device	-
8	R104846	4	Elec. Connector Terminal	Cavity A, B, D, H
8	57M7258	4	Elec. Connector Seal	Cavity A, B, D, H
9	57M7262	1	Elec. Connector Housing	Multifunction Hi-Lo Switch 11
9	57M8907	1	Elec.Connect Locking Device	-
9	57M7494	5	Elec. Connector Terminal	Cavity A, C, D, E, F, J
9	R104846	2	Elec. Connector Terminal	Cavity G, H
10	37M7089	2	Screw	M6 X 12
11	57M8213	1	Elec. Connector Housing	-
12	57M8761	1	Elec. Connector Housing	Front Wiper Motor 05
12	57M7825	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
13	57M8873	3	Elec. Connector Terminal	-
14	57M8866	1	Elec. Connector Terminal	-
15	57M7511	4	Elec. Connector Terminal	Cavity 2, 4, L, P
15	57M7429	1	Elec. Connector Terminal	Cavity B
15	RE46735	1	Electrical Connector Assy	Front Wiper 28
15	57M7825	1	Elec. Connector Terminal	Cavity 1
16	57M8565	7	Elec. Connector Terminal	Cavity 1-3, 5, 6, 9, 10,
16	57M10299	1	Elec. Connector Housing	Key / Light Switches 10
17	57M7260	1	Elec. Connector Housing	Instrument Cluster J2 25
17	57M7291	1	Electrical Connector Assy	-
17	R104846	3	Elec. Connector Terminal	Cavity B, E, D
17	57M9215	3	Elec. Connector Seal	Cavity B, E, D
18	R104846	2	Elec. Connector Terminal	Cavity B, C
18	57M7494	2	Elec. Connector Terminal	Cavity A, D
18	57M7469	1	Electrical Connector Assy	-
18	57M7840	1	Elec. Connector Housing	FNR Switch 09
19	57M9772	1	Elec. Connector Housing	-
20	57M9776	1	Elec. Connector Housing	Can Terminator 27
20	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
21	57M9956	1	Elec. Connector Housing	Exhaust Filter Regen Switch 30
21	57M8164	6	Elec. Connector Terminal	Cavity 1-6
22	57M8484	1	Elec. Connector Housing	Instrument J4 26
22	57M8299	4	Elec. Connector Terminal	Cavity A, M, R, S
22	57M8300	2	Elec. Connector Terminal	Cavity J, N
23	57M8853	4	Relay	-
24	57M7296	1	Elec. Connector Accessory	-
24	57M7494	1	Elec. Connector Terminal	Cavity A
24	R104846	2	Elec. Connector Terminal	Cavity C, D
24	57M9215	3	Elec. Connector Seal	Cavity A, C, D
24	57M7261	1	Elec. Connector Housing	Brake Switch 15
25	SU24630	1	Bracket	-
26	Z61311	1	Elec. Connector Housing	Accessory Relay 12A
26	57M9539	1	Elec. Connector Terminal	Cavity 1
26	T107133	2	Elec. Connector Terminal	Cavity 3, 5
27	Z61311	1	Elec. Connector Housing	Head Light Relay 12 B
27	57M9491	2	Elec. Connector Terminal	Cavity 3, 5
28	Z61311	1	Elec. Connector Housing	Hi- Lo Relay 12C
29	Z61311	1	Elec. Connector Housing	Neutral Relay 12D
30	R159925	1	Housing	-
31	87123	1	PART MISSING IN WISE	-
32	RE153894	1	Diode	-
33	R159926	5	Elec. Connector Terminal	-
34	57M8872	1	Elec. Connector Terminal	-
35	19M7865	2	Screw	M8 X 16
