Front Console Wiring Harness, Cab, SyncShuttle™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ11239	1	Wiring Harness	-
2	57M7256	1	Elec. Connector Housing	-
3	57M7985	1	Electrical Connector Assy	-
4	57M8873	1	Elec. Connector Terminal	-
5	57M8070	1	Elec. Connector Housing	-
6	57M7256	1	Elec. Connector Housing	-
7	57M8156	1	Elec. Connector Housing	-
8	57M8866	1	Elec. Connector Terminal	-
9	57M7261	1	Elec. Connector Housing	-
10	SU24630	1	Bracket	-
11	Z61311	1	Elec. Connector Housing	-
12	57M8853	3	Relay	-
13	-	1	Part 13	-
14	RE262484	1	Diode	-
15	57M8872	1	Elec. Connector Terminal	-
16	57M8484	1	Elec. Connector Housing	-
17	57M9956	1	Elec. Connector Housing	-
18	57M7262	1	Elec. Connector Housing	-
19	-	1	Part 19	-
20	-	1	Part 20	-
21	57M7262	1	Elec. Connector Housing	-
22	57M10299	1	Elec. Connector Housing	-
23	57M9412	1	Clamp	-
24	57M9776	1	Elec. Connector Housing	-
25	-	1	Part 25	-
26	57M8761	1	Elec. Connector Housing	-
27	SJ11240	1	Wiring Harness	-
28	57M8856	4	Elec. Connector Accessory	-
29	-	1	Part 29	-

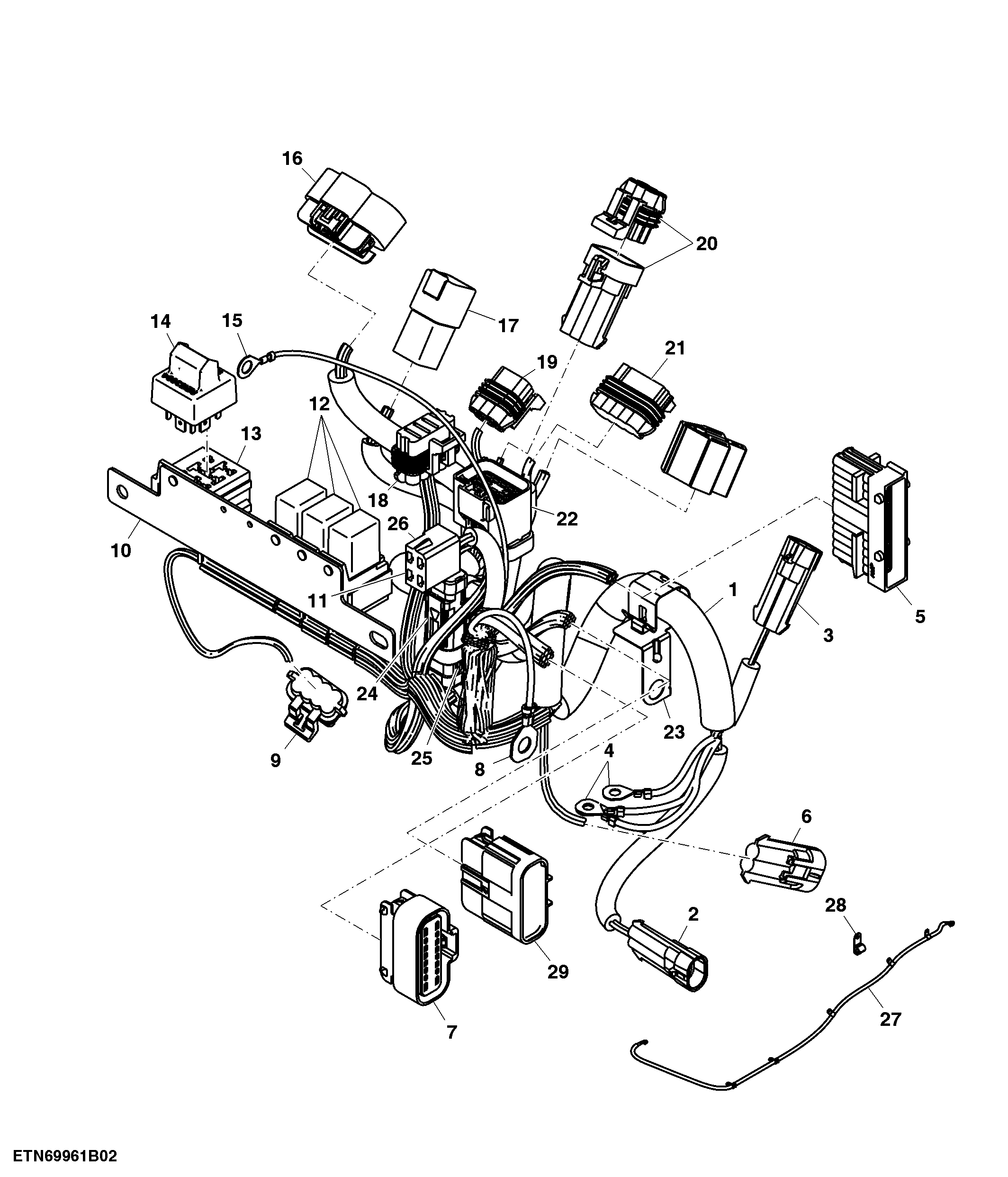

Front Console Wiring Harness, Cab, SyncShuttle™

Нет текстового описания
