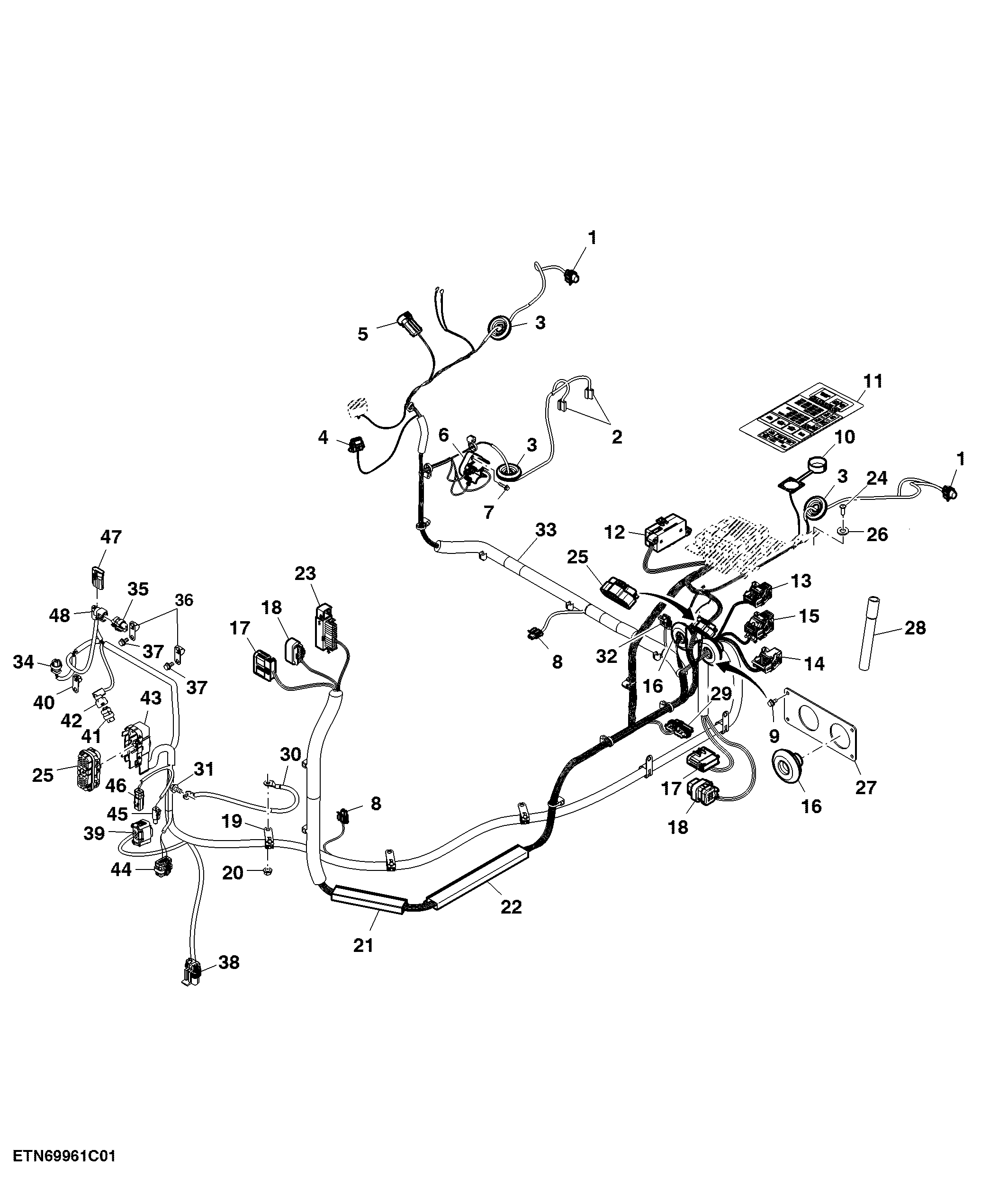

Cab Wiring Harness, SyncShuttle™ Transmission

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7349	2	Elec. Connector Accessory	-
2	R77476	1	Electrical Connector Assy	-
3	Z53033	2	Grommet	-
4	57M7255	1	Elec. Connector Housing	-
5	57M7263	1	Elec. Connector Housing	-
6	RE186986	1	Junction Block	-
7	19M7833	1	Screw	M6 X 35
8	57M7328	2	Elec. Connector Housing	-
9	14M7298	8	Flange Nut	M8
10	-	1	Part 10	-
11	SU23500	1	Label	-
12	RE48875	1	Junction Block	-
13	57M8519	1	Elec. Connector Housing	-
14	57M8523	1	Elec. Connector Housing	-
15	57M8527	1	Elec. Connector Housing	-
16	R213135	1	Grommet	-
17	57M8281	2	Elec. Connector Housing	-
18	57M9786	2	Elec. Connector Housing	-
19	R107991	2	Clamp	-
20	14M7298	6	Flange Nut	M8
21	R267934	1	Channel	-
22	R267935	1	Channel	-
23	57M8944	1	Elec. Connector Housing	-
24	R224342	4	Screw	-
25	RE538503	1	Elec. Connector Accessory	-
26	24M7251	4	Washer	6.400 X 18 X 1.600 mm
27	SU23151	1	Bracket	-
28	R281023	1	Hose	Water Valve Out
29	57M9406	1	Elec. Connector Accessory	-
30	MIA10189	1	Ground Cable	-
31	19M7865	1	Screw	M8 X 16
32	57M7255	1	Elec. Connector Housing	-
33	SJ11238	1	Wiring Harness	-
34	57M9492	1	Elec. Connector Terminal	-
35	57M11134	1	Elec. Connector Housing	CAN TERMINATOR
36	57M9432	1	Clamp	-
37	19M7862	11	Screw	M6 X 20
38	57M7309	1	Elec. Connector Housing	-
39	57M7953	1	Electrical Connector Assy	-
40	57M9435	1	Clamp	-
41	57M9780	1	Elec. Connector Housing	-
42	57M10158	1	Elec. Connector Accessory	-
43	R528122	1	Elec. Connector Accessory	-
44	57M9800	1	Elec. Connector Housing	-
45	57M7762	1	Electrical Connector Assy	-
46	57M9776	1	Elec. Connector Housing	-
47	57M7839	1	Electrical Connector Assy	-
48	57M10158	1	Elec. Connector Accessory	-

Cab Wiring Harness, SyncShuttle™ Transmission
