50 Power Train, SyncShuttle™(12X4) Transmission

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	PTO Shifter Plug	-
-	-	1	Oil Line, Transmission	-
-	-	1	Oil Pump Suction / Differential Drive Shaft Oil Lines	-
-	-	1	Power Train Housing, MFWD, Adjustable Ratio	-
-	-	1	PTO Bearing Support, W/O Trough	-
-	-	1	PTO Clutch	-
-	-	1	PTO Shaft Assembly, 540	-
-	-	1	PTO Shaft Assembly, W/ Paddy Seal, 540 and 540E	-
-	-	1	PTO Shaft Cover	-
-	-	1	Oil Line and Fittings, MFWD	-
-	-	1	PTO Shifter, 540 and 540E	-
-	-	1	Support, Transmission	-
-	-	1	Top Shaft, 12X4, SyncShuttle™	-
-	-	1	Top Shaft, 12X4, SyncShuttle™	-
-	-	1	Transmission Oil Lines	-
-	-	1	Transmission Shifter, Range, SyncShuttle™	-
-	-	1	Transmission Shifter, Speed, SyncShuttle™	-
-	-	1	Differential Lock	-
-	-	1	Control Valve, 2WD, SyncShuttle™	-
-	-	1	Control Valve, 2WD, SyncShuttle™	-
-	-	1	Control Valve, MFWD, SyncShuttle™	-
-	-	1	Countershaft, 12X4, SyncShuttle™	-
-	-	1	Countershaft, 12X4, SyncShuttle™	-
-	-	1	Differential Drive Shaft, 12X4, SyncShuttle™	-
-	-	1	Differential Gear Assembly	-
-	-	1	Differential Housing, Low, SyncShuttle™	-
-	-	1	Clutch, Low, 12X4, SyncShuttle™	-
-	-	1	Dipstick, Transmission Fluid Level	-
-	-	1	Drive Shaft, Engine To Transmission	-
-	-	1	Drive Shaft, MFWD	-
-	-	1	Housing, PTO and Hitch, Standard	-
-	-	1	Housing, Transmission, 2WD	-
-	-	1	Housing, Transmission, MFWD	-
-	-	1	Intermediate Drive Shaft	-

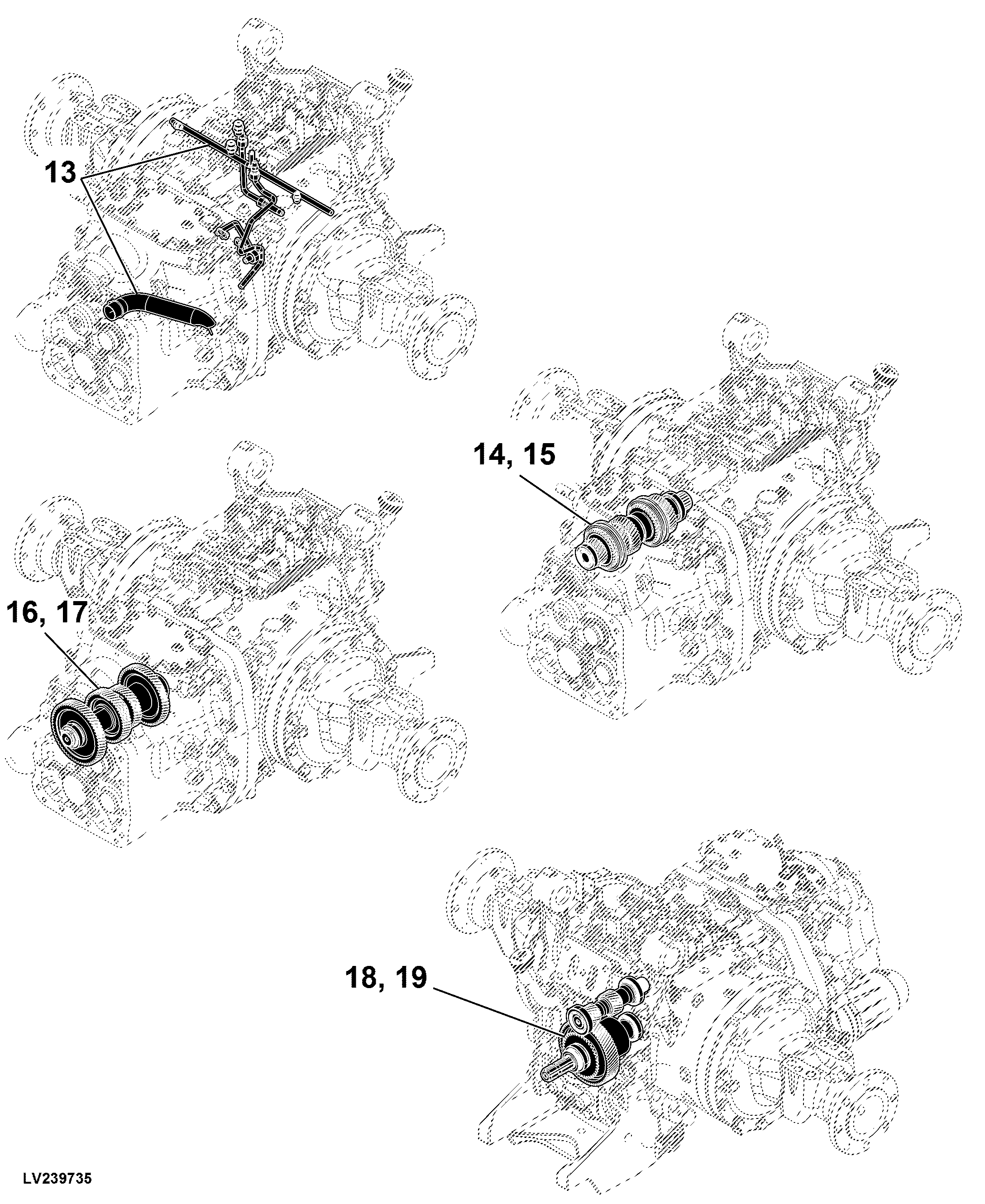

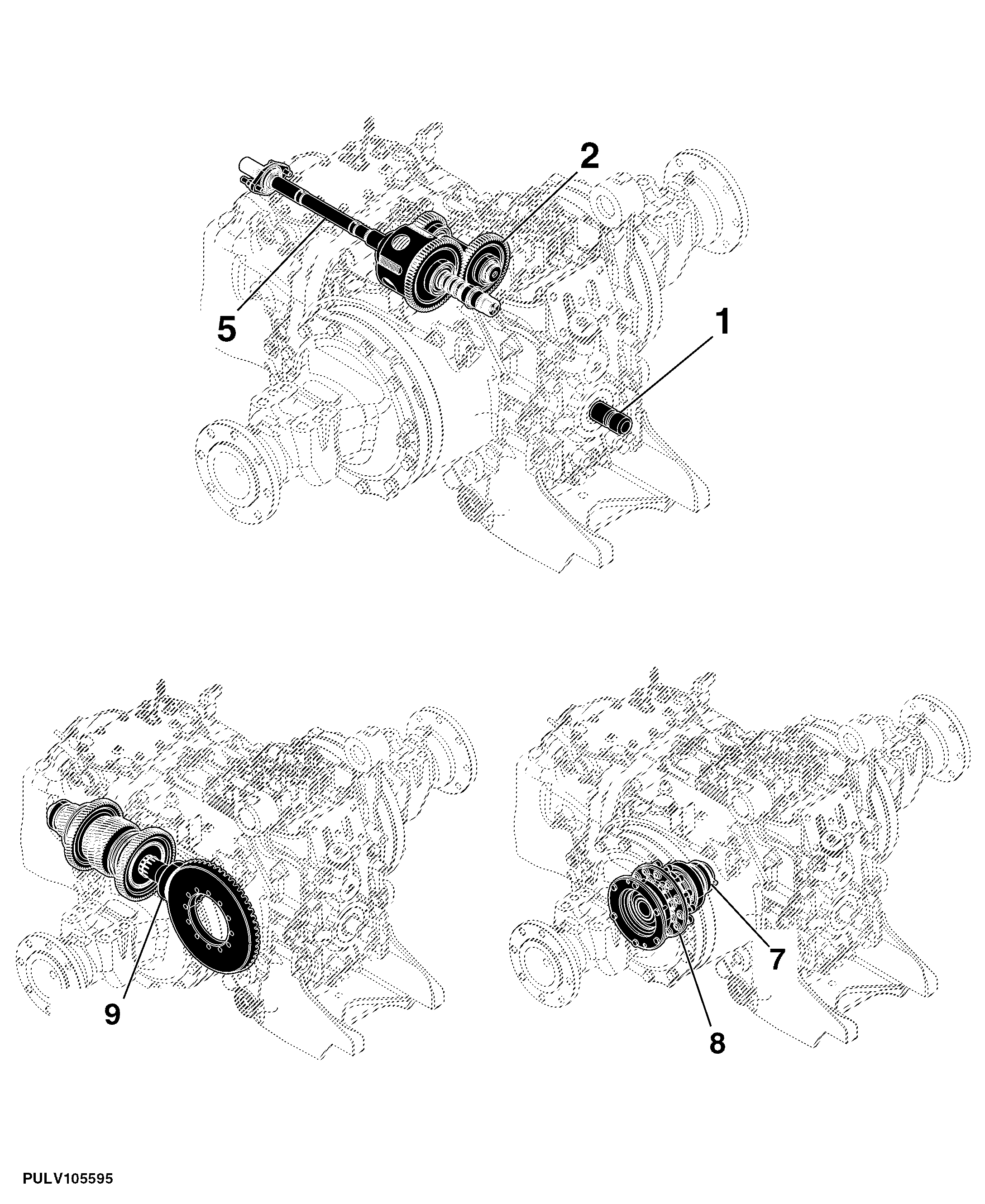

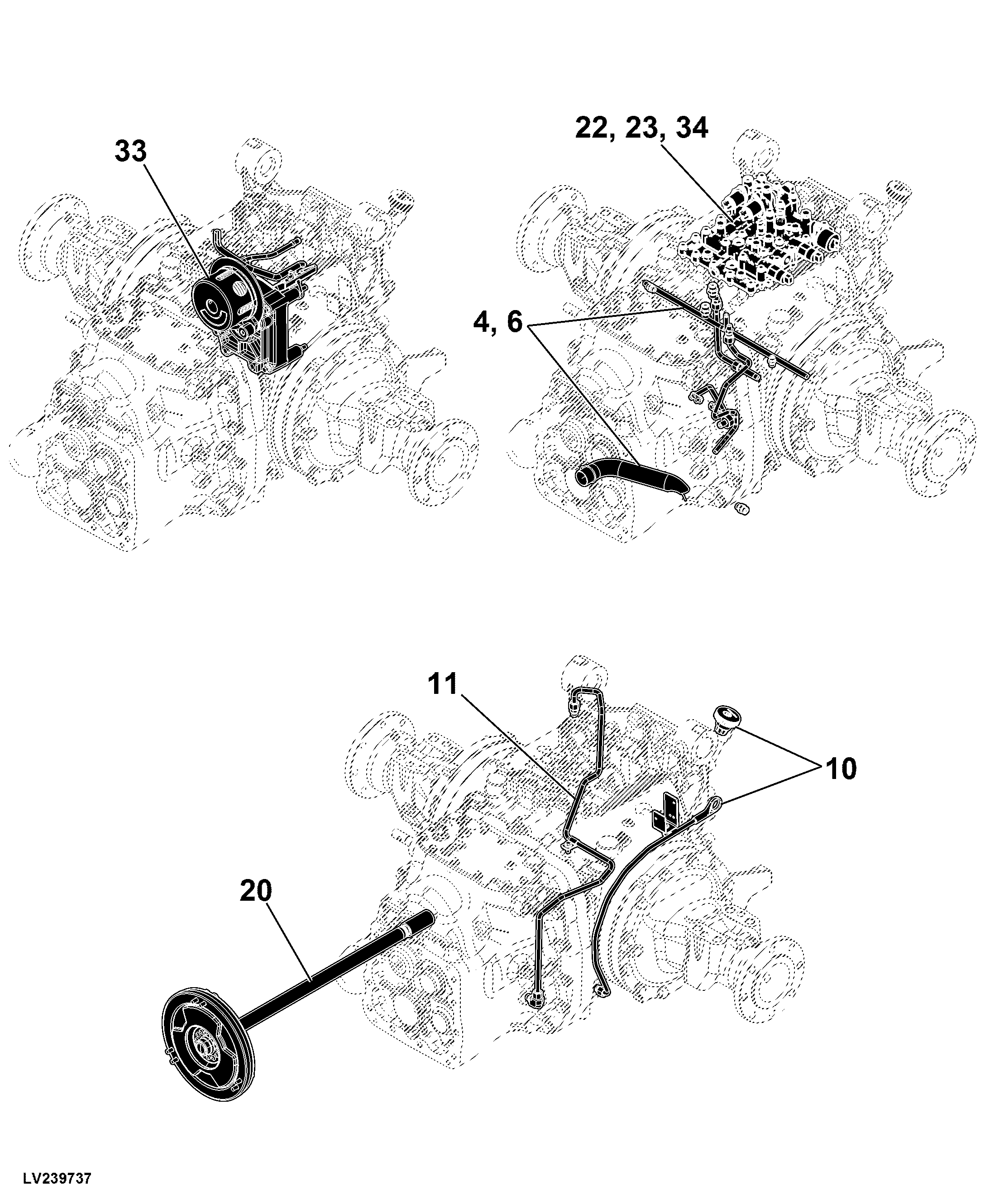

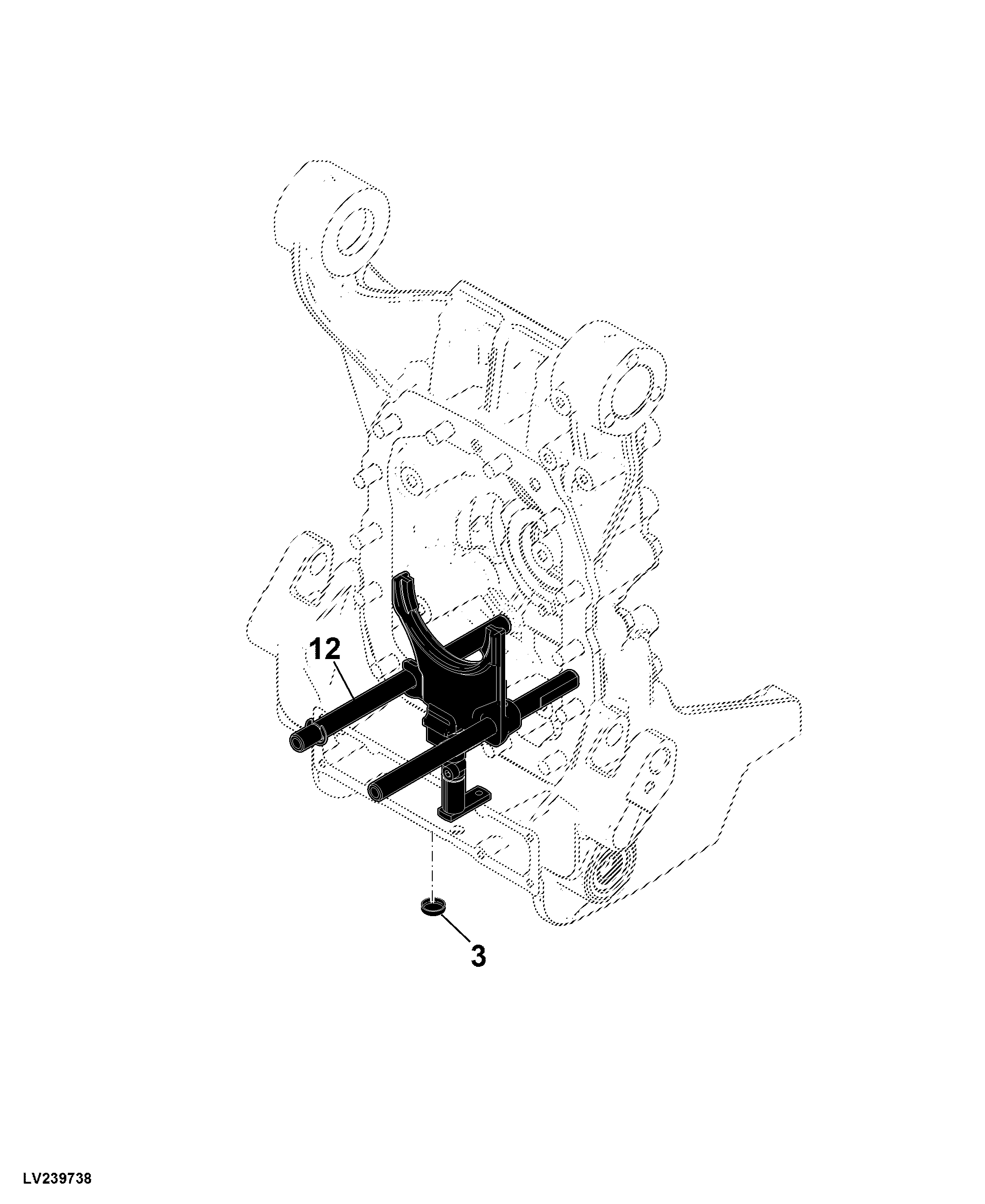

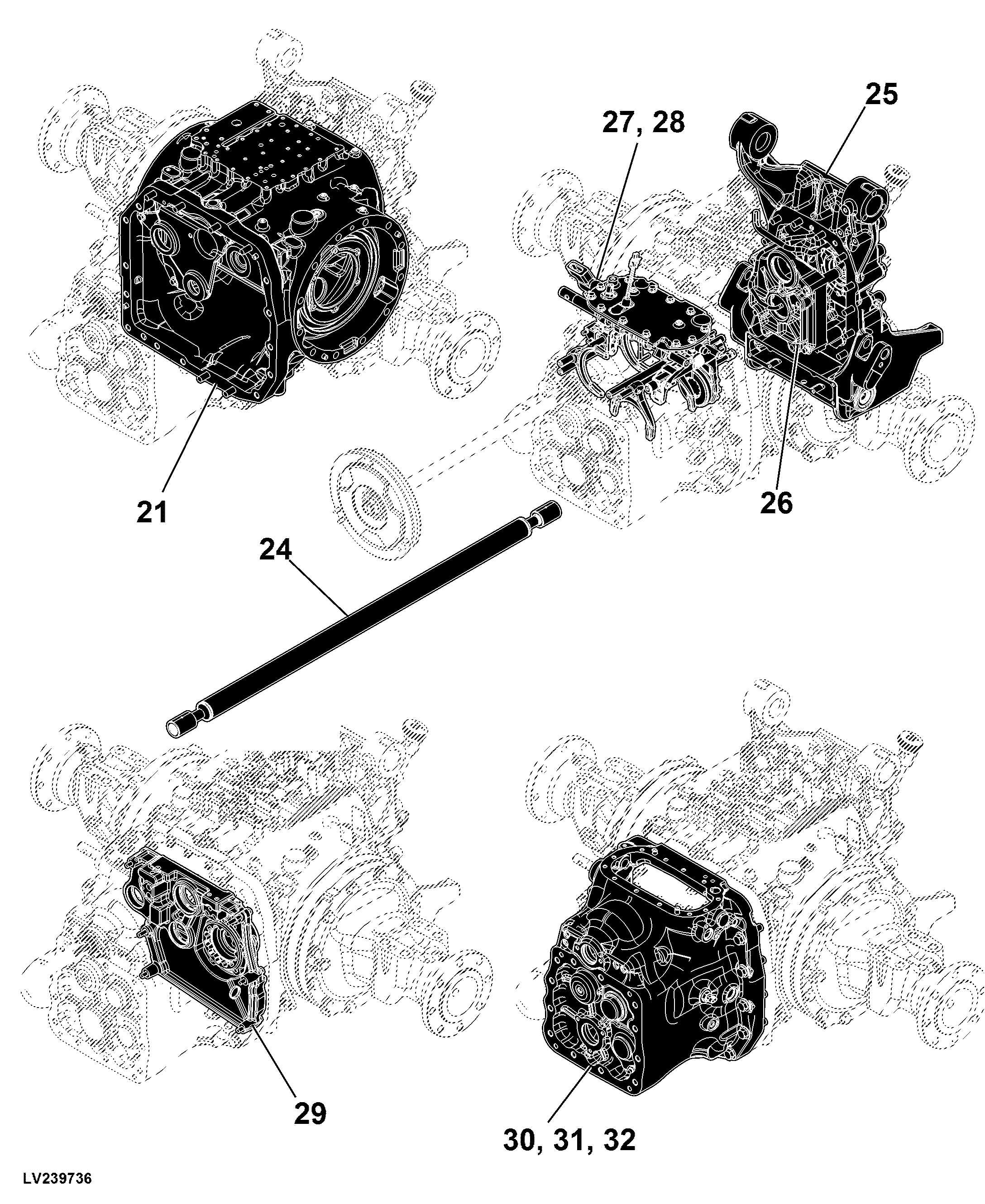

50 Power Train, SyncShuttle™(12X4) Transmission
