Handle and H4 Belt Line Light, RH Traffic

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

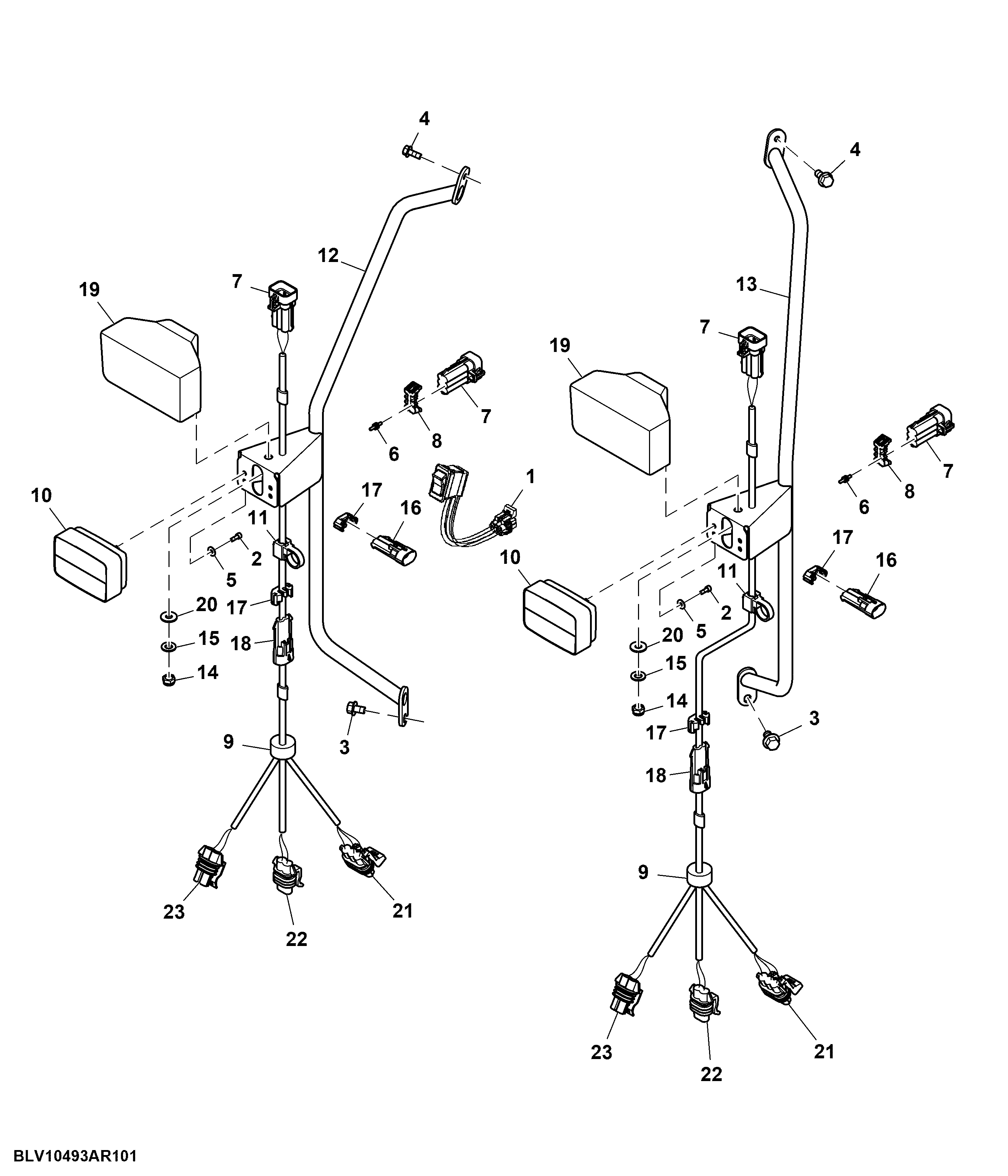

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE70360	1	Toggle/Rocker Switch	-
2	19M8774	4	Screw	M5 X 15
3	19M7783	2	Screw	M10 X 16
4	19M7866	2	Screw	M8 X 20
5	24M7138	4	Washer	5.300 X 15 X 1 mm
6	57M7259	2	Elec. Connector Seal	-
7	57M7263	2	Elec. Connector Housing	-
8	57M7291	2	Electrical Connector Assy	-
9	SJ33048	2	Wiring Harness	SUB FOR AL159321
10	AL75642	2	Side Light	-
11	CB01483609	2	Tie Band	-
12	RE263531	1	Handle	RH
13	RE263532	1	Handle	LH
14	14M7167	2	Lock Nut	M10
15	24M7028	2	Washer	10.500 X 20 X 2 mm
16	57M7256	2	Elec. Connector Housing	-
17	57M7289	4	Elec.Connect Locking Device	-
18	57M7985	2	Electrical Connector Assy	-
19	AL77589	2	Headlight	-
20	L110367	2	Washer	-
21	57M7255	2	Elec. Connector Housing	Clearence Light X108F
21	57M7317	1	Elec. Connector Accessory	-
21	R104846	3	Elec. Connector Terminal	Cavity A, B, C
21	57M7258	3	Elec. Connector Seal	Cavity A, B, C
22	57M7254	2	Elec. Connector Housing	Low Beam X116F
22	R104846	2	Elec. Connector Terminal	Cavity A, B
22	57M7258	2	Elec. Connector Seal	Cavity A, B
23	57M7328	2	Elec. Connector Housing	High Beam X155F
23	R104846	2	Elec. Connector Terminal	Cavity A, B
23	57M7258	2	Elec. Connector Seal	Cavity A, B

Handle and H4 Belt Line Light, RH Traffic

Нет текстового описания
