Fuel Tank, Narrow Cab, High Capacity, W/ Ground

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7400	1	Lock Nut	M10
2	19M7502	5	Cap Screw	M5 X 25
3	19M7774	2	Screw	M6 X 12
4	19M7775	4	Screw	M6 X 16
5	19M7784	4	Screw	M10 X 20
6	19M7786	2	Screw	M10 X 30
7	19M7810	1	Screw	M10 X 80
8	19M7835	1	Screw	M10 X 35
9	19M7865	3	Screw	M8 X 16
10	24H1291	2	Washer	21/64" X 1-15/32" X 7/64"
11	24M7100	1	Washer	6.600 X 22 X 2 mm
12	AE43629	2	Hose Clamp	-
13	AH97280	2	Clip	-
14	H143834	1	Nut	-
15	H216169	1	Breather	-
16	H217849	1	Fitting	-
17	R239750	1	Handle	Inner
18	R239751	1	Bracket	Inner, Rear
19	R239752	1	Bracket	Inner, Front
20	R239974	1	Hose	LGTH = 175 mm, Fuel Vent
21	R247308	1	Hose	LGTH = 165 mm, Cross-Over
22	R284061	1	Bracket	Outer, Rear
23	R524513	2	Hose Clamp	-
24	R56101	2	Clip	-
25	SJ21625	1	Fuel Sender	-
26	SJ21645	1	Fuel Tank	SUB FOR SJ22542
27	A44705	1	Bushing	-
28	AR21837	3	Clamp	-
29	L112337	1	Sealing Washer	-
30	L2646N	1	Pipe Plug	-
31	L80418	1	Insert	-
32	N30405	1	Adapter Fitting	-
33	R560528	1	Grommet	-
34	R166590	1	Washer	-
35	R235299	2	Screw	-
36	R237815	1	Vent	-
37	RE255766	1	Link Chain	Links = 24
38	SJ12051	1	Fitting	-
39	SJ21661	1	Wiring Harness	-
40	SU23067	1	Fitting	-
41	SU33327	1	Filler Cap	ORDER AL213202
42	SU43473	1	Strap	Lower
43	SU43475	1	Strap	Upper
44	24M7453	1	Washer	5.500 X 15 X 1 mm
45	14M7572	1	Lock Nut	M5
46	SU21573	1	Fuel Tank	-
47	SU21689	1	Guard	-
48	SU33172	1	Support	-
49	RE258807	2	Tie Band	-
50	-	1	Part 50	CTL 633 MM, MF TY22551
51	AL213202	1	Filler Cap	-

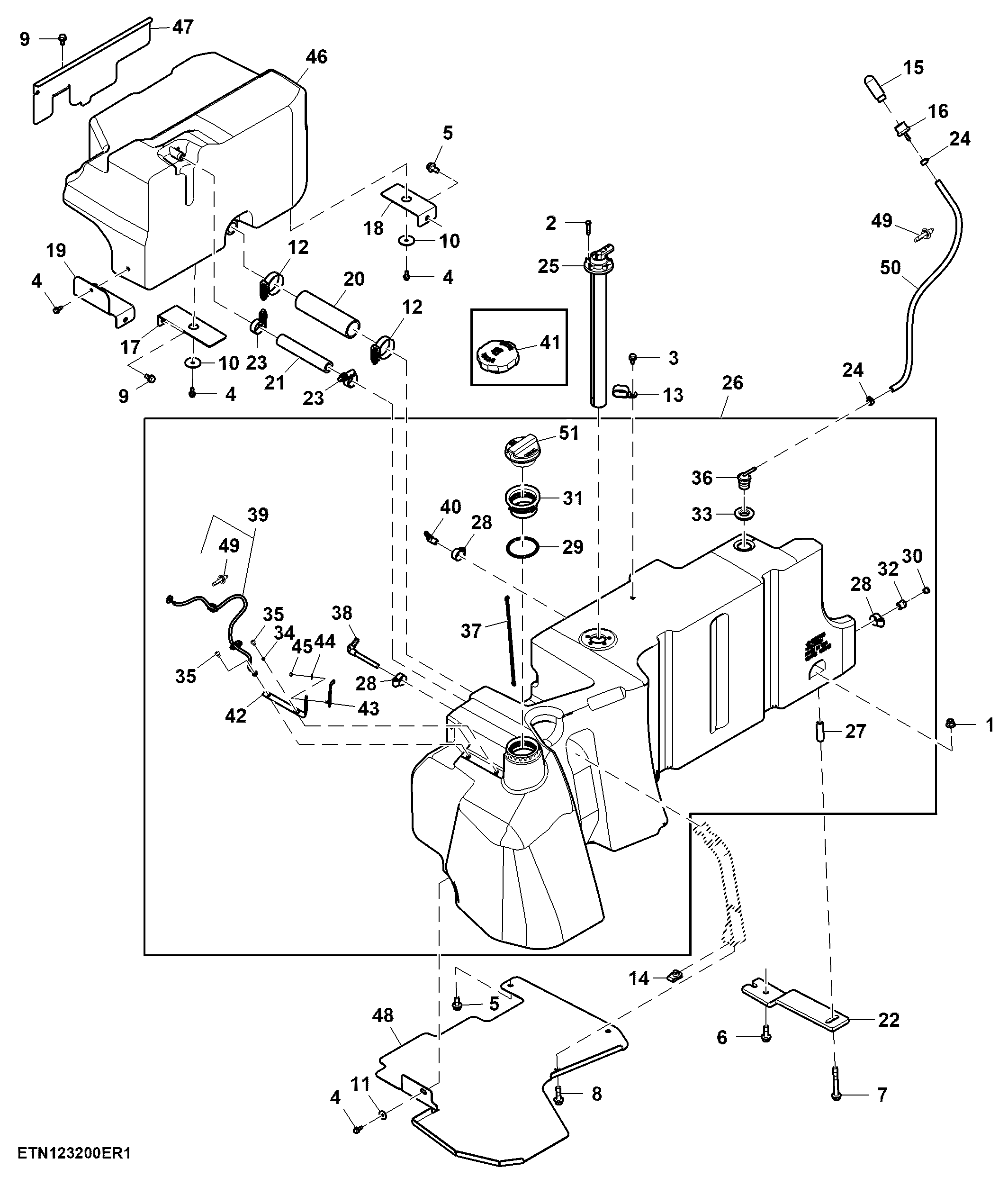

Fuel Tank, Narrow Cab, High Capacity, W/ Ground
