Front Console Wiring Harness, 2.5 m Cab, PowrReverser™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19569	1	Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Shuttle Control Switch
3	57M8156	1	Elec. Connector Housing	Front Console
4	57M10717	1	Elec. Connector Housing	Front Console
5	57M8070	1	Elec. Connector Housing	Front Console
6	57M7261	2	Elec. Connector Housing	Brake Switch
7	57M7260	2	Elec. Connector Housing	Instrument Cluster
8	57M7262	2	Elec. Connector Housing	Instrument Cluster
9	RE46735	1	Electrical Connector Assy	Front Wiper Switch
10	57M9956	1	Elec. Connector Housing	Exhaust Filter Regen. Switch
11	14M7303	1	Flange Nut	M6
12	57M10299	1	Elec. Connector Housing	Key / Light Switches
13	L39317	1	Elec. Connector Terminal	Flasher Relay
14	57M7256	2	Elec. Connector Housing	Start Relay
15	37M7089	2	Screw	M6 X 12
16	57M8815	2	Elec. Connector Housing	Hazard Switch; SUB FOR T28583
17	57M8873	3	Elec. Connector Terminal	-
18	57M8866	1	Elec. Connector Terminal	-
19	57M11134	1	Elec. Connector Housing	Can Terminator
20	57M9776	1	Elec. Connector Housing	Can Terminator
21	Z61311	4	Elec. Connector Housing	-
22	57M7840	1	Elec. Connector Housing	-
23	SU24630	1	Bracket	-
24	AL32891	1	Flasher	-
25	57M8756	2	Elec. Connector Accessory	Diode Module
26	57M7985	1	Electrical Connector Assy	Audible Alarm
27	57M7170	2	Elec. Connector Housing	PTO Lamp
28	AL76702	4	Relay	-
29	19M7865	2	Screw	M8 X 16
30	RE262484	1	Diode	-
31	19M7774	1	Screw	M6 X 12
32	SJ22631	1	Wiring Harness	-

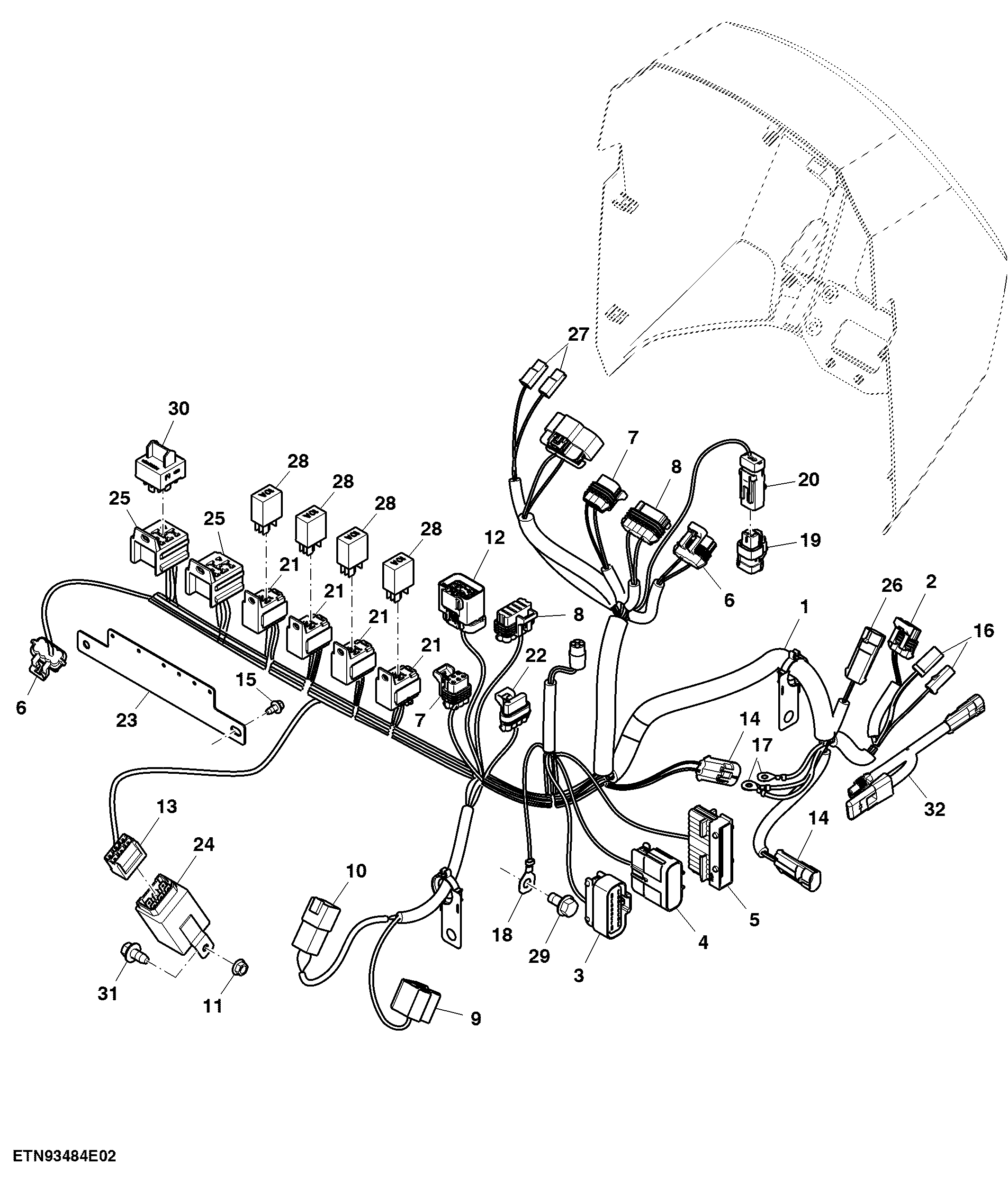

Front Console Wiring Harness, 2.5 m Cab, PowrReverser™
