Открытый узел

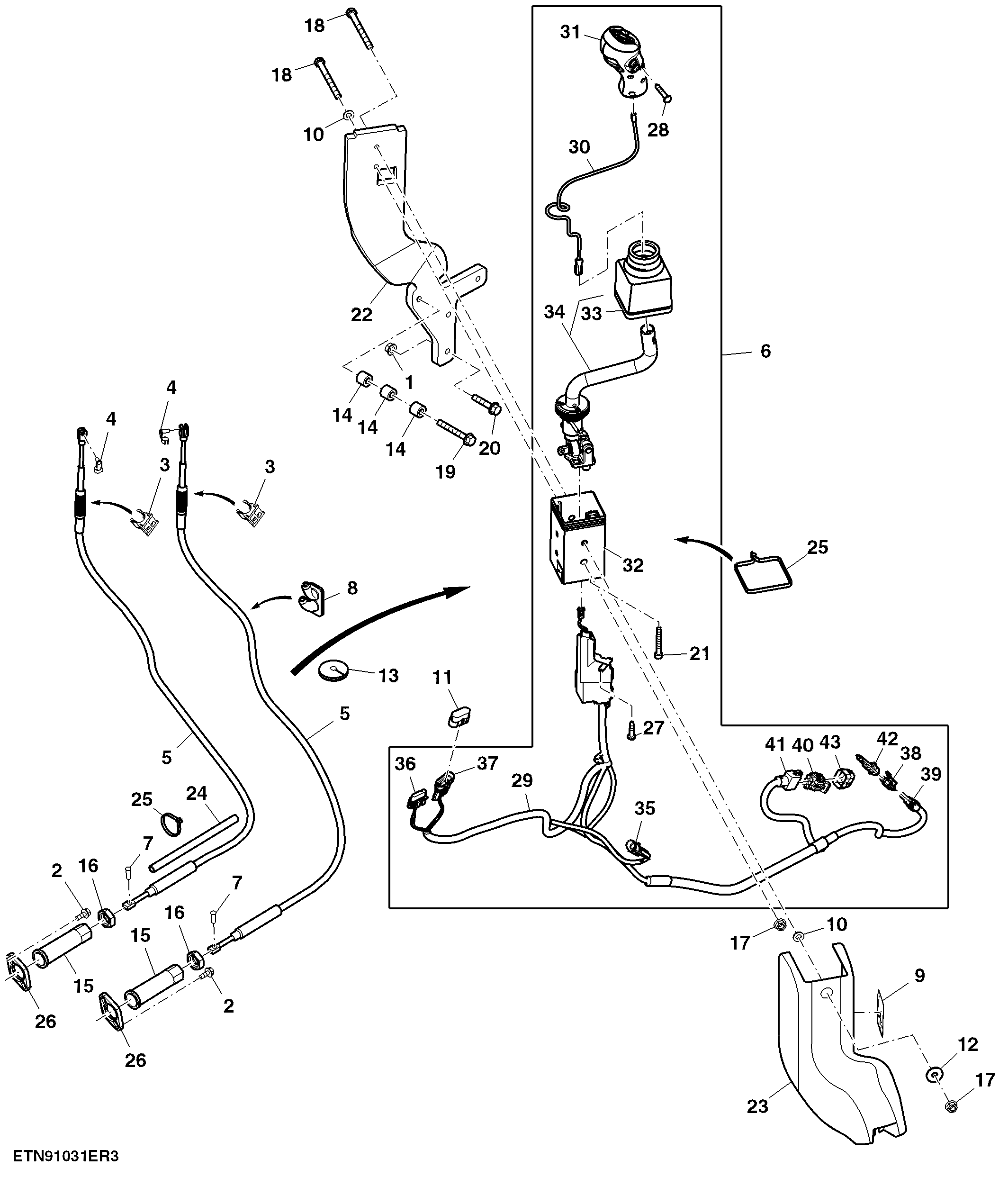

Control Levers, Dual Mid SCV, High/ Low, Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	3	Flange Nut	M8
2	19M7775	4	Screw	M6 X 16
3	L208072	2	Retainer	-
4	L209039	2	Pin	-
5	SJ15949	2	Push Pull Cable	-
6	SJ15952	1	Multi-Functional Controller	-
7	SU26328	2	Pin	-
8	SU303970	1	Boot	-
9	W31909	1	Instruction Plate	-
10	24M7055	2	Washer	8.400 X 16 X 1.600 mm
11	L116272	1	Elec. Connector Accessory	-
12	24M7207	1	Washer	8.400 X 24 X 2 mm
13	R112645	1	Grommet	-
14	R244801	3	Spacer	-
15	SU26057	2	Sleeve	-
16	14M7158	2	Nut	M16
17	14M7396	2	Lock Nut	M8
18	19M7398	2	Cap Screw	M8 X 90
19	19M7801	1	Screw	M8 X 60
20	19M7798	3	Screw	M8 X 40
21	19M9730	1	Screw	M6 X 45
22	SU32032	1	Bracket	-
23	SU32033	1	Cover	-
24	-	1	Part 24	CTL 2100 mm, MF TY22566
25	R105388	3	Tie Band	-
26	SU26058	2	Flange	-
27	37M7095	2	Screw	-
28	37M7389	4	Screw	-
29	AL208272	1	Wiring Harness	-
30	AL208296	1	Wiring Harness	-
31	AL212354	1	Handle	-
32	L208076	1	Housing	-
33	L208624	1	Boot	-
34	SJ15948	1	Control Lever	-
35	57M7256	1	Elec. Connector Housing	-
36	57M7247	1	Elec. Connector Housing	-
37	57M7244	1	Elec. Connector Housing	-
38	57M7328	1	Elec. Connector Housing	-
39	57M8218	1	Elec. Connector Accessory	-
40	57M7260	1	Elec. Connector Housing	-
41	57M9424	1	Elec.Connect Locking Device	-
42	57M7365	1	Elec. Connector Housing	-
43	L114840	1	Cap	-

Control Levers, Dual Mid SCV, High/ Low, Cab

Нет текстового описания
