Большое обновление пильных узлов

Смотреть

Открытый узел

22 Engine W/Front PTO 3029HPY65-DZ102596 Metric (000200 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	61AB Exhaust Filter / Diesel Particulate Filter	-
-	-	1	62BA Bracket	-
-	-	1	63FF Low Pressure Fuel Lines	-
-	-	1	65X6 Turbocharger	-
-	-	1	67A8 Engine Sensors	-
-	-	1	84EL Engine Wiring Harness	-
-	-	1	9869 Lift Strap	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	5985 Oil Filter	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Gasket Kit	-
-	-	1	9901 Nozzle kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Seat Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Short Block Hardware Kit (1/2)	-
-	-	1	9901 Short Block Hardware Kit (2/2)	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	35JM Fuel Filter	-
-	-	1	1275 Oil Filler Cover	-
-	-	1	1353 Crankshaft Pulley and Damper	-
-	-	1	14BQ Flywheel Housing	-
-	-	1	15BE Flywheel	-
-	-	1	16NZ Fuel Injection Pump	-
-	-	1	17EY Air Intake	-
-	-	1	19ER Oil Pan	-
-	-	1	2059 Water Pump ( - XXXXXX)	-
-	-	1	2080 Water Pump (XXXXXX - )	-
-	-	1	2186 Thermostat Cover	-
-	-	1	2225 Thermostat	-
-	-	1	28BS Exhaust Manifold	-
-	-	1	2912 Ventilating System	-
-	-	1	30BT Starter Motor	-
-	-	1	11AC Valve Cover	-
-	-	1	3636 Front Plate	-
-	-	1	3726 Fuel Transfer Pump	-
-	-	1	40AH Engine Oil Dipstick	-
-	-	1	4362 Starting Aid	-
-	-	1	44AL Timing Gear Cover	-
-	-	1	46BA Cylinder Block	-
-	-	1	4726 Crankshaft and Bearings	-
-	-	1	4863 Connecting Rods and Pistons	-
-	-	1	4924 Valve Actuating Mechanism	-
-	-	1	5038 Oil Pump	-
-	-	1	5151 Cylinder Head with Valves	-
-	-	1	5249 Gear Driven Auxiliary Drive	-
-	-	1	5417 Air Intake Hose	-

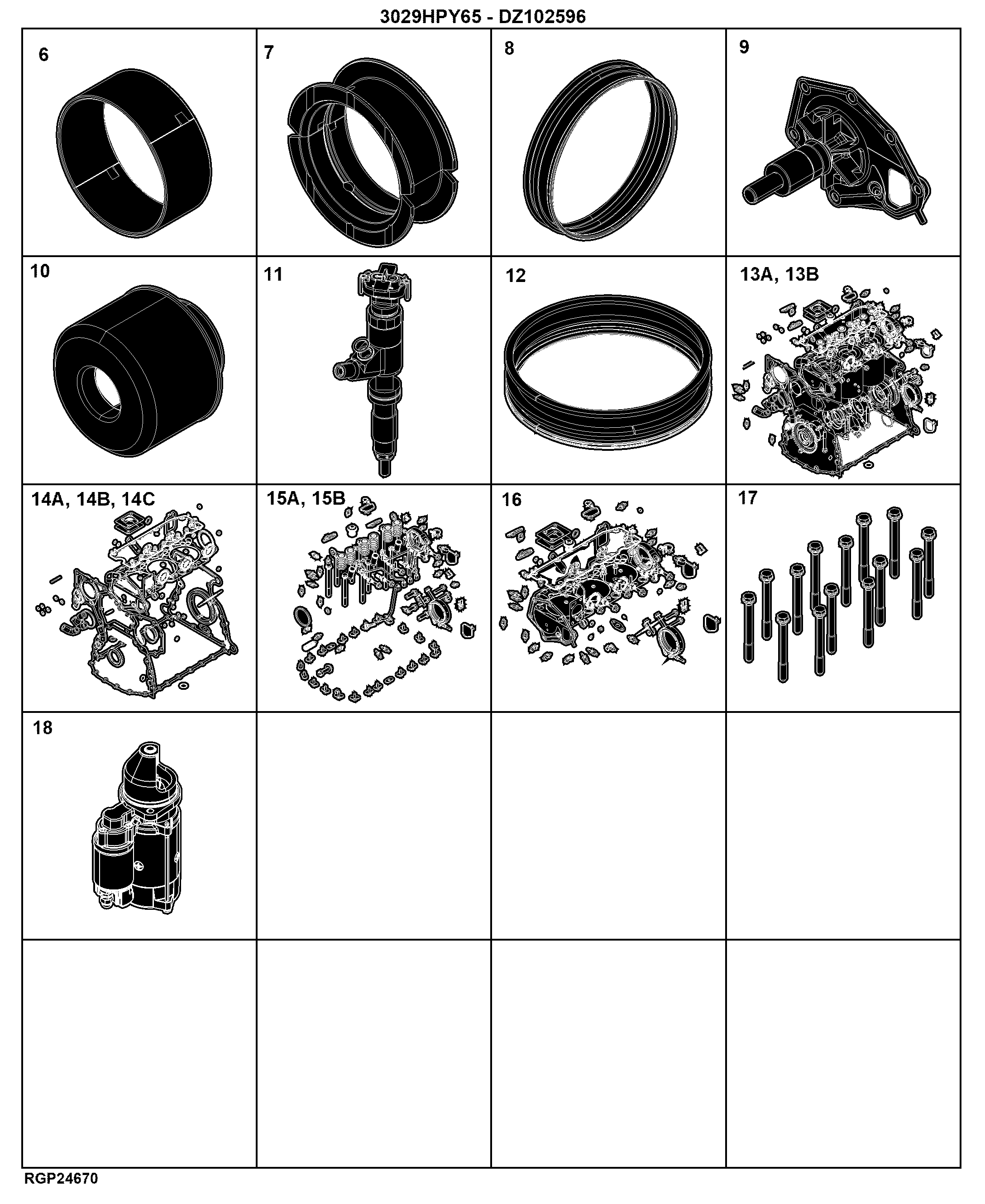

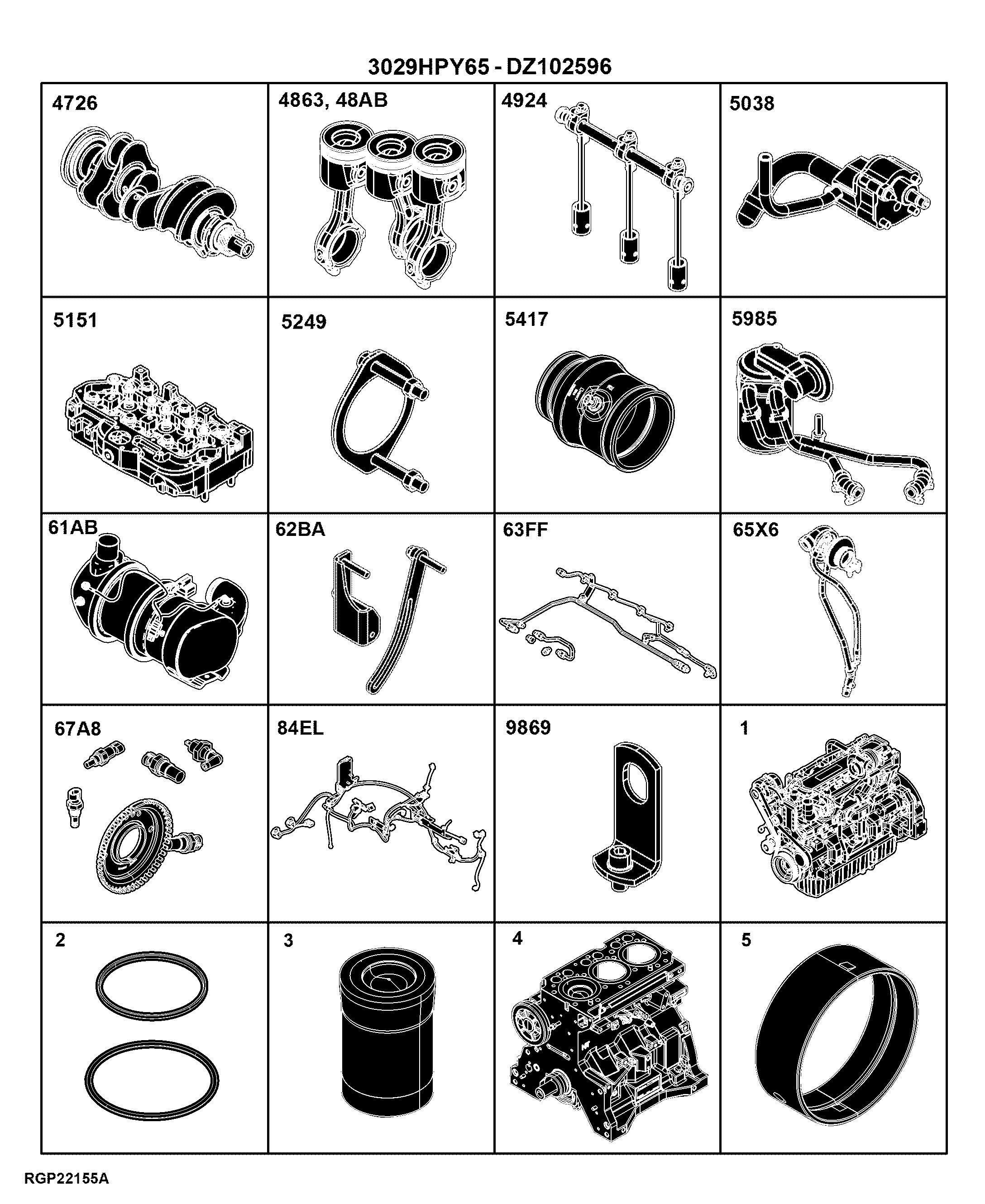

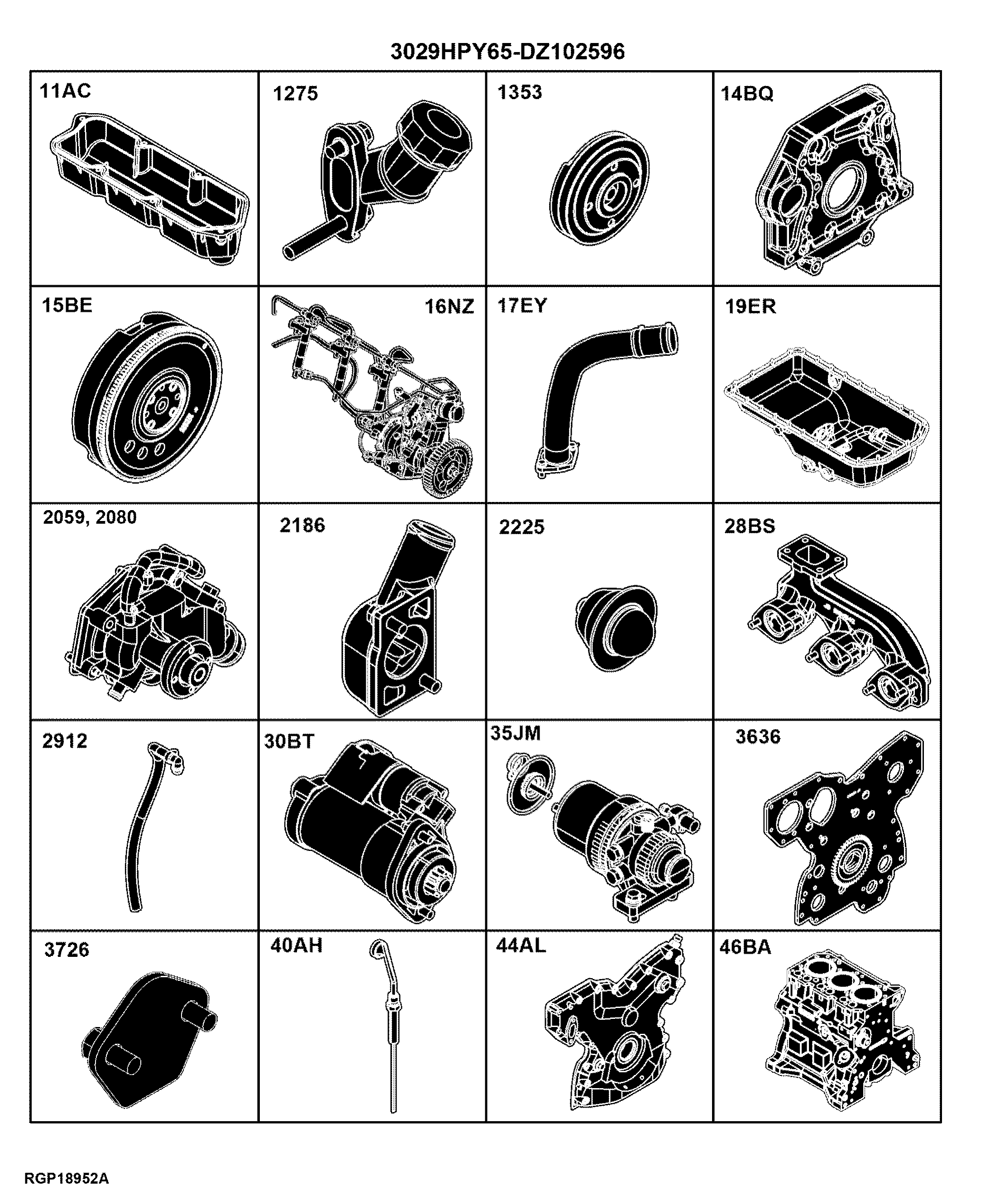

22 Engine W/Front PTO 3029HPY65-DZ102596 Metric (000200 - )

Нет текстового описания
