Roof Wiring Harness, Cab (2/3)

Roof Wiring Harness, Cab (2/3)

Roof Wiring Harness, Cab (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

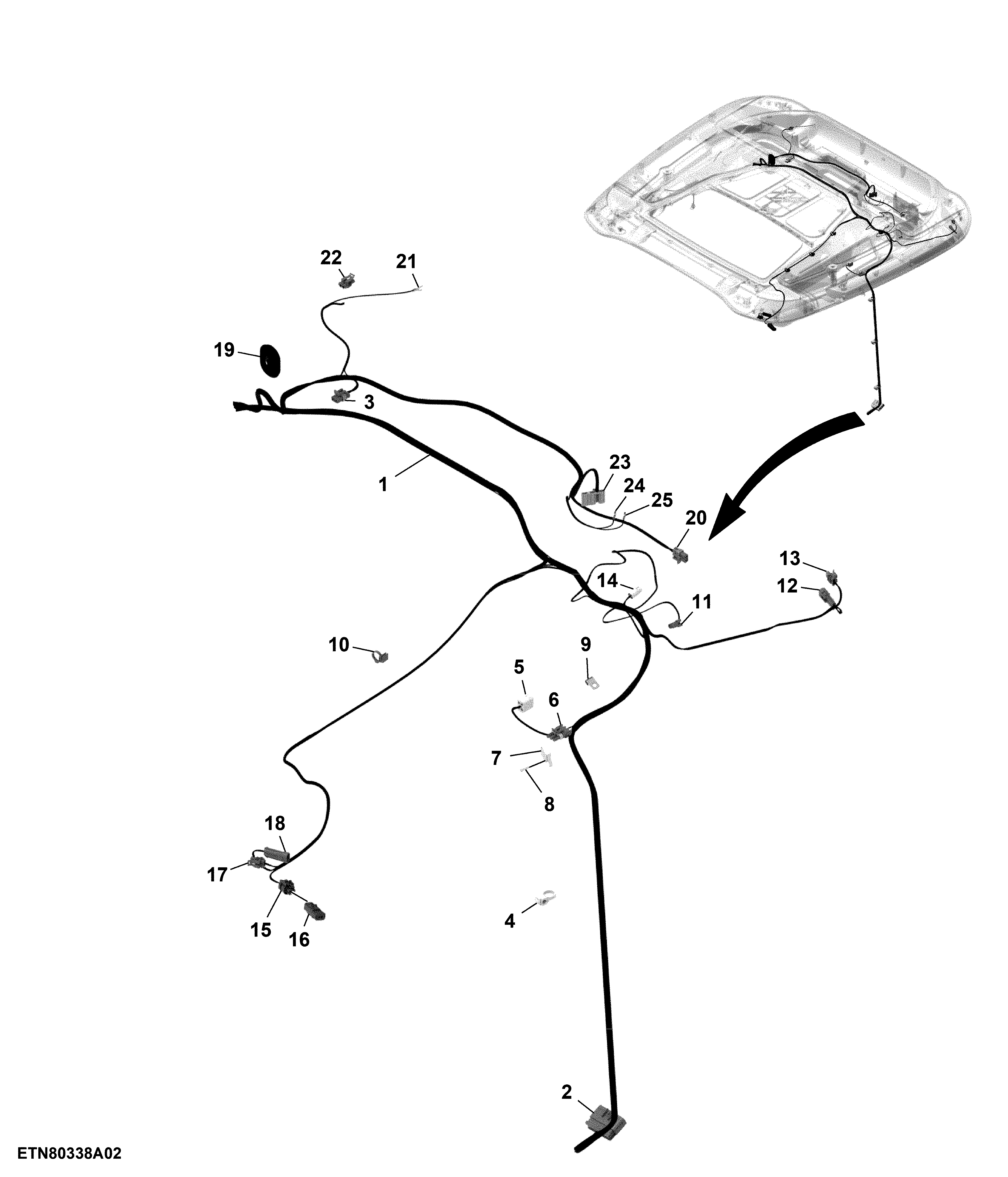

Roof Wiring Harness, Cab (2/3)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ13208	1	Wiring Harness	Roof
2	57M8280	1	Elec. Connector Housing	Cab Harness 1
2	57M8306	2	Elec. Connector Terminal	Cavity C, H
2	57M8307	8	Elec. Connector Terminal	Cavity B, D, E, J, M, P, R, S
2	57M8308	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
2	57M8322	2	Elec. Connector Terminal	Cavity C, H
2	57M8323	8	Elec. Connector Terminal	Cavity B, D, E, J, M, P, R, S
2	57M8324	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
3	57M7306	1	Elec.Connect Locking Device	-
3	57M9216	2	Elec. Connector Seal	Cavity A, B
3	57M7491	2	Elec. Connector Terminal	Cavity A, B
3	57M7309	1	Elec. Connector Housing	LH, Blower 21
4	CB01483609	3	Tie Band	-
5	57M8761	1	Elec. Connector Housing	Dome Lamp 3
5	57M7825	1	Elec. Connector Terminal	Cavity 2
5	57M10980	2	Elec. Connector Terminal	Cavity 3, 4
6	RE12364	1	Electrical Connector Assy	LH, Door Switch 4
6	57M9219	2	Elec. Connector Seal	Cavity A, B
6	R78057	2	Elec. Connector Terminal	Cavity A, B
7	RE48234	1	Wiring Harness	-
8	37M7056	2	Screw	-
9	H75541	1	Clamp	-
10	57M9229	4	Clip	-
11	57M8174	1	Elec. Connector Housing	LH, Speaker 5
11	57M7724	1	Electrical Connector Assy	-
11	57M8293	2	Elec. Connector Terminal	Cavity A, B
12	57M7256	1	Elec. Connector Housing	LH, Rear Hazard Lamp 6
12	57M7289	1	Elec.Connect Locking Device	-
12	R104919	2	Elec. Connector Terminal	Cavity A, B
12	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M7254	1	Elec. Connector Housing	LH, Rear Work Lamp 7
13	57M7258	2	Elec. Connector Seal	Cavity A, B
13	57M7289	1	Elec.Connect Locking Device	-
13	R104846	2	Elec. Connector Terminal	Cavity A, B
14	L38802	1	Elec. Connector Terminal	Rear Wiper Motor 8
14	57M11173	2	Elec. Connector Terminal	Cavity 1, 2
15	57M9772	1	Elec. Connector Housing	Beacon Lamp 10
15	57M9809	2	Elec. Connector Terminal	Cavity 1, 2
16	57M9776	1	Elec. Connector Housing	Dust Cap 10A
17	57M7254	1	Elec. Connector Housing	LH, Front work lamp 13
17	57M7289	1	Elec.Connect Locking Device	-
17	R104846	2	Elec. Connector Terminal	Cavity A, B
17	57M7258	2	Elec. Connector Seal	Cavity A, B
18	57M9215	2	Elec. Connector Seal	Cavity A, B
18	R104919	2	Elec. Connector Terminal	Cavity A, B
18	57M7289	1	Elec.Connect Locking Device	-
18	57M7256	1	Elec. Connector Housing	LH, Front Hazard Lamp 12
19	L102007	1	Grommet	Grommet
20	57M7309	1	Elec. Connector Housing	RH, Blower 14
20	57M7306	1	Elec.Connect Locking Device	-
20	R104846	2	Elec. Connector Terminal	Cavity A, B
21	57M7054	1	Elec. Connector Terminal	Evaporator Ground 15
22	57M7254	1	Elec. Connector Housing	A/C Pressure Switch 16
22	57M7289	1	Elec.Connect Locking Device	-
22	57M9216	2	Elec. Connector Seal	Cavity A, B
22	57M7491	2	Elec. Connector Terminal	Cavity A, B
23	57M7457	1	Elec. Connector Housing	Resistor 18
23	57M9200	3	Elec. Connector Terminal	Cavity 1 - 3
23	57M9461	1	Elec. Connector Terminal	Cavity 4
24	57M9199	1	Elec. Connector Terminal	Deicing SW 19
25	57M9199	1	Elec. Connector Terminal	Deicing SW 20
