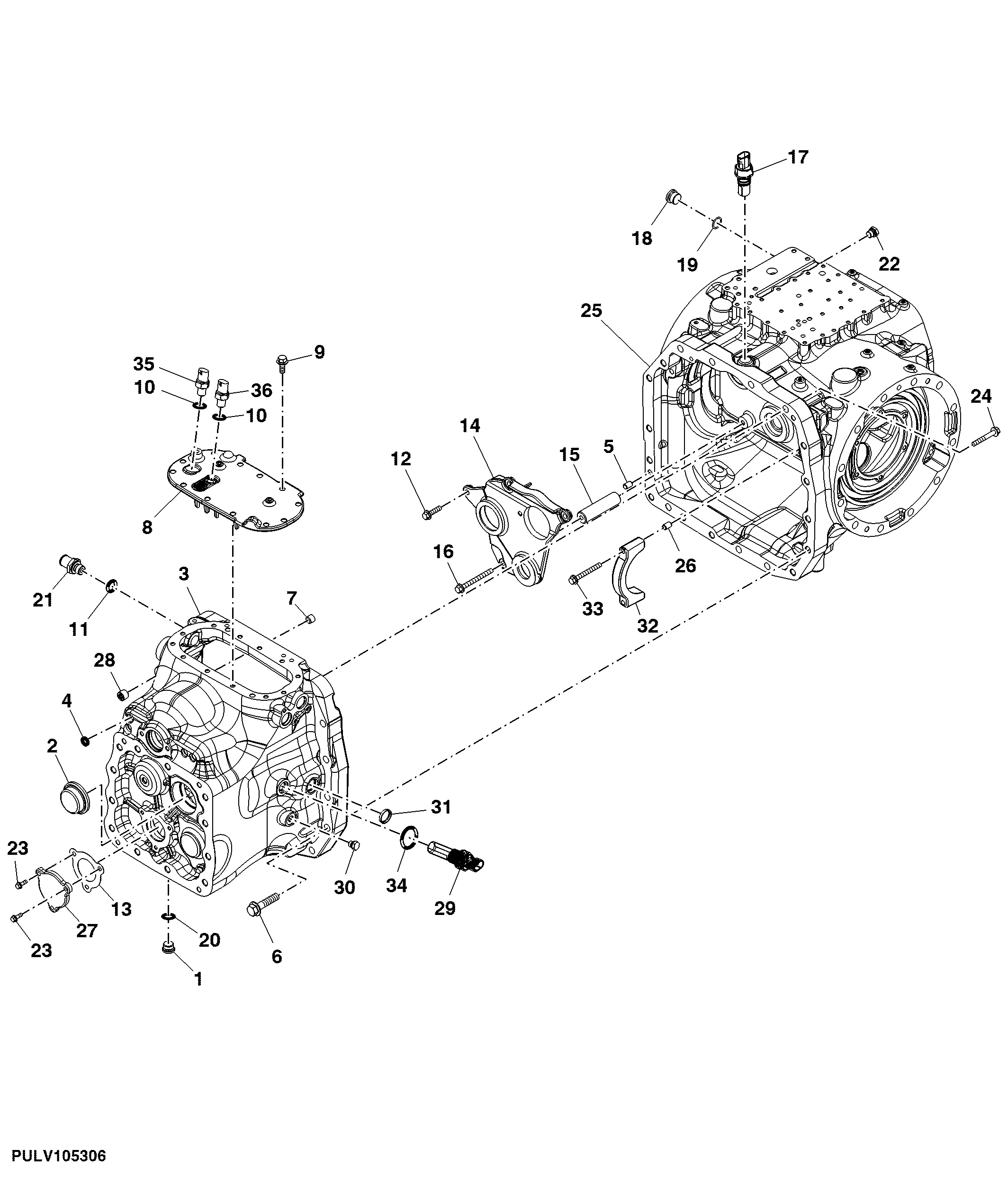

Power Train Housing, (SR/PR and PR HI-LOW)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R98012	1	Fitting Plug	-
2	R260631	1	Plug	-
3	SJ13660	1	Housing	-
3	SJ13082	1	Housing	SUB FOR R272329
4	30M7007	4	Plug	-
5	44M7154	10	Dowel Pin	-
6	19M7826	18	Screw	M16 X 70
7	R287414	1	Orifice	-
8	SU31863	1	Cover	SUB FOR SU26183
8	SU31856	1	Cover	SUB FOR SU22548
9	19M7785	12	Screw	M10 X 25
10	R26448	2	O-Ring	-
11	51M7041	1	O-Ring	11.300 X 2.200 mm
12	19M9106	3	Screw	M10 X 40
13	R262353	1	Gasket	-
14	R274014	1	Support	-
15	R262621	1	Spacer	-
16	R202761	1	Screw	-
17	RE280822	1	Sensor	Top Shaft Speed Sensor
18	15M7078	1	Drain Plug	-
19	51M7047	1	O-Ring	23.600 X 2.900 mm
20	P47889	1	O-Ring	-
21	SU290135	1	Fitting	-
22	RE46716	1	Fitting	-
23	19M7867	3	Screw	M8 X 25
24	19M9019	6	Screw	M10 X 70
25	RE272362	1	Housing	(WITH POWRREVERSER PLUS TRANSMISSION) (INCLUDES R242560, R258373 AND 19M9892)
25	SJ10879	1	Housing	(WITH POWRREVERSER PLUS TRANSMISSION) (INCLUDES R242560, R258373 AND 19M9892)
25	RE272363	1	Housing	(WITH SYNCREVERSER-POWRREVERSER TRANSMISSION) (INCLUDES R242560, R258373 AND 19M9892)
25	SJ10880	1	Housing	(WITH SYNCREVERSER-POWRREVERSER TRANSMISSION) (INCLUDES R242560, R258373 AND 19M9892)
26	R242560	4	Bushing	-
27	R261287	1	Cover	-
28	R287414	1	Orifice	-
29	RE280823	1	Sensor	-
30	AL78502	1	Guide	-
31	R261136	1	Plug	-
32	R258373	1	Bearing Cap	-
33	19M9892	2	Screw	M10 X 85
34	51M7044	1	O-Ring	17.300 X 2.200 mm
35	RE12411	1	Switch	(WITH POWRREVERSER PLUS TRANSMISSION) (WITH SYNCREVERSER-POWRREVERSER TRANSMISSION) (WITH CREEPER TRANSMISSION)
35	MIA881067	1	Switch	-
36	AM117780	1	Switch	(WITH CREEPER TRANSMISSION)

Power Train Housing, (SR/PR and PR HI-LOW)
