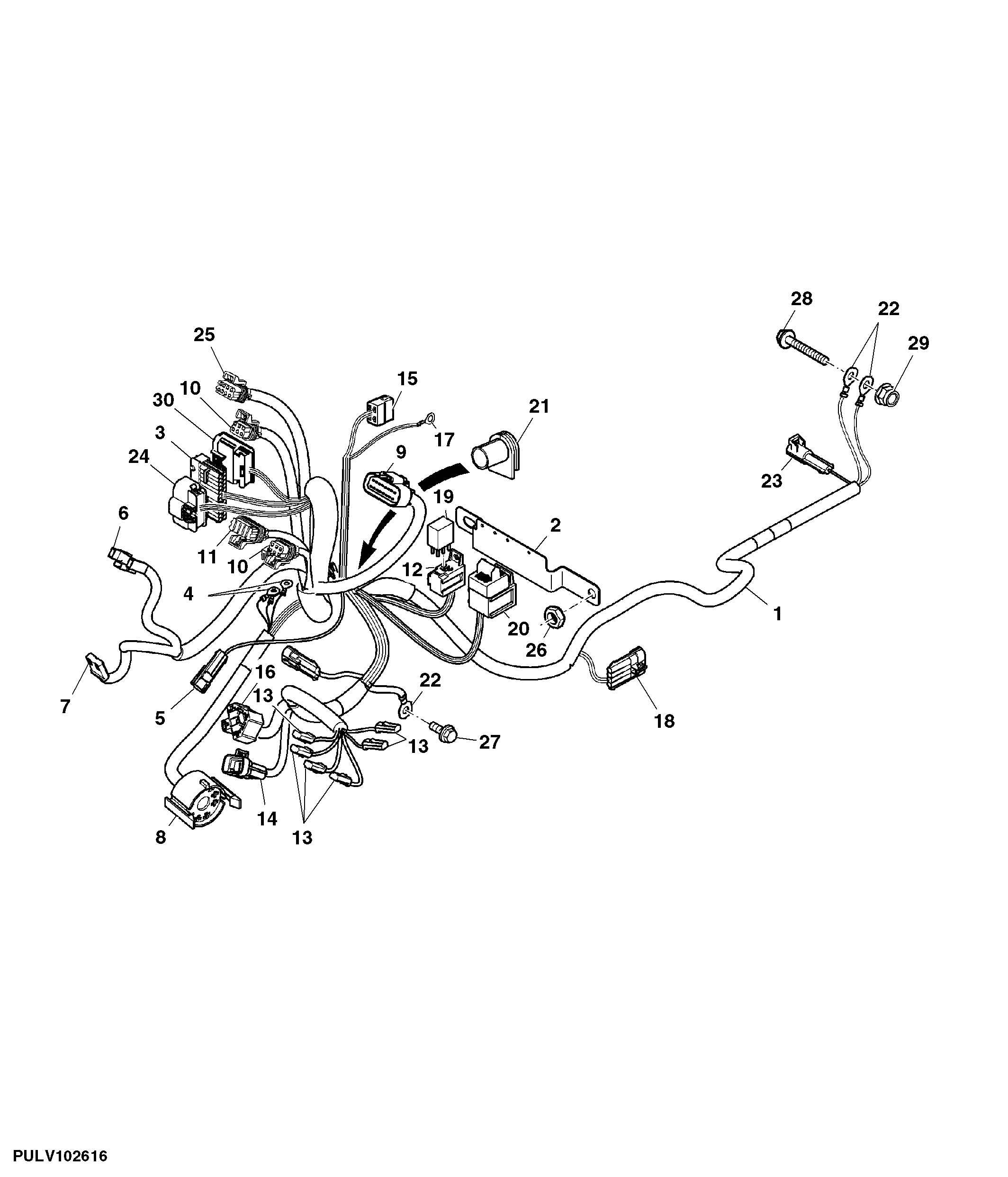

Front Console Wiring Harness, Syncshuttle Cab (TSS) ( - 346999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ299160	1	Wiring Harness	-
2	R255312	1	Bracket	-
3	57M8070	1	Elec. Connector Housing	-
4	57M8873	3	Elec. Connector Terminal	-
5	57M7256	2	Elec. Connector Housing	-
6	57M7183	1	Elec. Connector Accessory	-
7	R77480	1	Electrical Connector Assy	-
8	RE46736	1	Electrical Connector Assy	-
9	57M8484	1	Elec. Connector Housing	-
10	57M7260	2	Elec. Connector Housing	-
11	57M7262	1	Elec. Connector Housing	-
12	Z61311	1	Elec. Connector Housing	-
13	57M8815	6	Elec. Connector Housing	SUB FOR T28583
14	57M7263	1	Elec. Connector Housing	-
15	57M8761	1	Elec. Connector Housing	-
16	RE46735	1	Electrical Connector Assy	-
17	57M8872	1	Elec. Connector Terminal	-
18	57M7839	1	Electrical Connector Assy	-
19	57M9880	1	Relay	SUB FOR 57M8853
20	RE262484	1	Diode	SUB FOR RE153894
21	R112653	1	Grommet	-
22	57M8866	3	Elec. Connector Terminal	-
23	57M7293	1	Elec. Connector Housing	-
24	57M8156	1	Elec. Connector Housing	-
25	57M7261	1	Elec. Connector Housing	-
26	14M7152	2	Nut	M10
27	19M7865	1	Screw	M8 X 16
28	19M7913	1	Screw	M8 X 90
29	14M7396	1	Lock Nut	M8
30	57M10717	1	Elec. Connector Housing	-

Front Console Wiring Harness, Syncshuttle Cab (TSS) ( - 346999)

Нет текстового описания
