Открытый узел

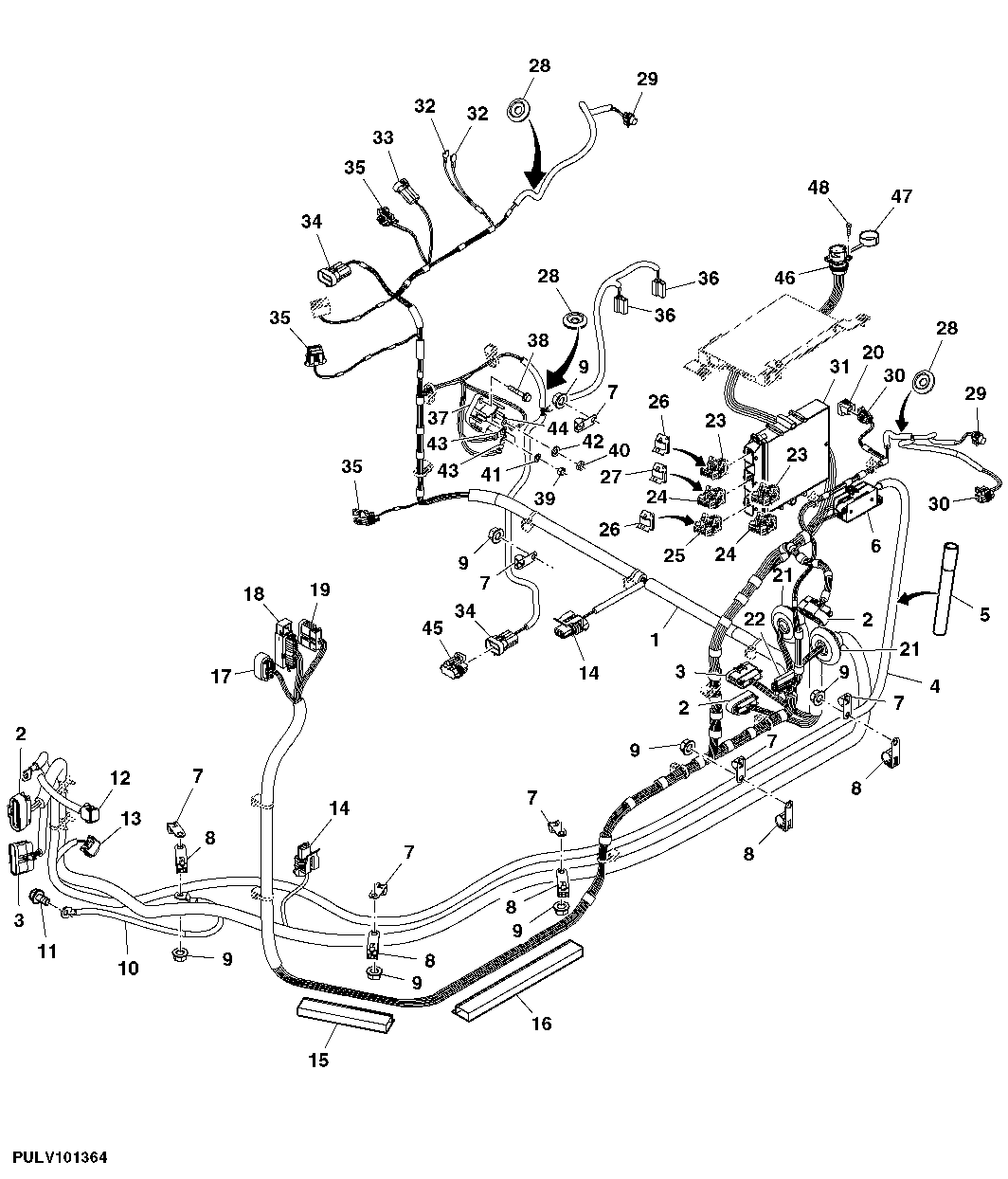

CAB WIRING HARNESS, POWRREVERSER PTE, (PR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ12692	1	Wiring Harness	SUB FOR SJ302330
2	57M8279	3	Elec. Connector Housing	-
3	57M8280	2	Elec. Connector Housing	-
4	RE263829	1	Battery Cable	-
5	R281023	1	Hose	-
6	RE48875	1	Junction Block	-
7	57M8856	7	Elec. Connector Accessory	-
8	R107991	5	Clamp	-
9	14M7298	7	Flange Nut	M8
10	MIA10189	1	Ground Cable	-
11	19M7865	1	Screw	M8 X 16
12	57M8746	1	Elec. Connector Housing	-
13	57M7953	1	Electrical Connector Assy	-
14	57M7328	2	Elec. Connector Housing	-
15	R267934	1	Channel	-
16	R267935	1	Channel	-
17	57M8484	1	Elec. Connector Housing	-
18	57M8944	1	Elec. Connector Housing	-
19	57M8281	1	Elec. Connector Housing	-
20	RE207311	1	Electronic Control Unit	(SUB FOR RE183146)
21	R213135	2	Grommet	-
22	57M9406	1	Elec. Connector Accessory	(B) (SUB FOR 57M8193)
23	57M8519	2	Elec. Connector Housing	-
24	57M8527	2	Elec. Connector Housing	-
25	57M8523	1	Elec. Connector Housing	(SUB FOR 57M8523)
26	57M8528	3	Electrical Connector Cap	-
27	57M8529	2	Electrical Connector Cap	-
28	Z53033	3	Grommet	-
29	57M7349	2	Elec. Connector Accessory	-
30	57M7260	2	Elec. Connector Housing	-
31	SJ290320	1	Electronic Control Unit	-
32	U46662	2	Elec. Connector Terminal	-
33	57M7263	1	Elec. Connector Housing	-
34	57M7264	2	Elec. Connector Housing	-
35	57M7255	3	Elec. Connector Housing	-
36	R77476	2	Electrical Connector Assy	-
37	RE186986	1	Junction Block	-
38	37M7061	1	Screw	M5 X 20
39	14M7297	2	Nut	M5
40	14M7194	1	Nut	M6
41	24M7087	2	Washer	5.500 X 10 X 1 mm
42	24M7088	1	Washer	6.600 X 12 X 1.600 mm
43	57M7547	2	Elec. Connector Terminal	-
44	57M7556	1	Elec. Connector Terminal	-
45	57M7261	1	Elec. Connector Housing	-
46	57M7919	1	Elec. Connector Housing	-
47	L156796	1	Plug	-
48	37M7095	4	Screw	-

CAB WIRING HARNESS, POWRREVERSER PTE, (PR)

Нет текстового описания
