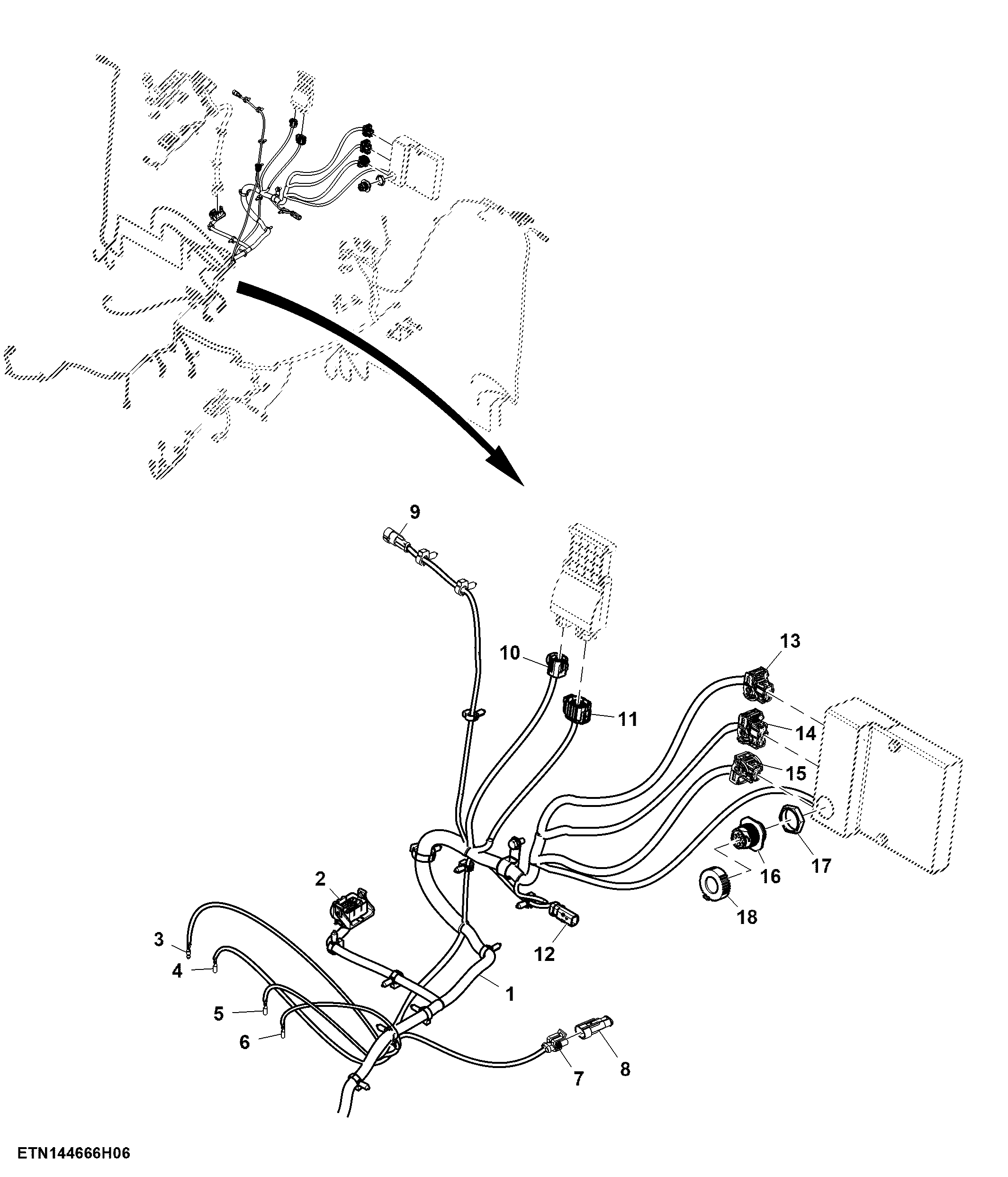

Rear Wiring Harness, PowrReverser™ (4 / 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ25993	1	Wiring Harness	Rear
2	57M10369	1	Elec. Connector Housing	Rear to RH Console Interconnect, XXR_4
2	57M7401	2	Elec. Connector Cavity Plug	Cavity 29, 36
2	57M7403	11	Elec. Connector Cavity Plug	Cavity 24, 25, 26, 27, 28, 30, 31, 32, 33, 34, 35
2	57M8241	6	Elec. Connector Terminal	Cavity 5, 6, 7, 9, 11, 12
2	57M7400	4	Elec. Connector Seal	Cavity 1, 8, 15, 22
2	57M8425	19	Elec. Connector Terminal	Cavity2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 21, 23
2	57M9532	4	Elec. Connector Terminal	Cavity 1, 8, 15, 22
2	57M7402	13	Elec. Connector Cable Seal	Cavity 2, 3, 4, 10, 13, 14, 16, 17, 18, 19, 20, 21, 23
3	57M11708	1	Elec. Connector Terminal	Right Front Fender Lamp, XE6_4
4	57M11707	1	Elec. Connector Terminal	Right Front Fender Lamp, XE6_3
5	57M11707	1	Elec. Connector Terminal	Right Front Fender Lamp, XE6_2
6	57M11707	1	Elec. Connector Terminal	Right Front Fender Lamp, XE6_1
7	57M7401	2	Elec. Connector Cavity Plug	-
7	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
7	57M8571	2	Elec. Connector Terminal	Cavity 1 - 2
7	57M7937	1	Electrical Connector Assy	Trailer Brake Solenoid, XY8
8	57M14424	1	Elec. Connector Housing	-
9	57M14424	1	Elec. Connector Housing	Work Lamp, XE5
9	57M9059	2	Elec. Connector Terminal	Cavity 1 - 2
9	57M7938	2	Elec. Connector Terminal	Cavity 1 - 2
10	57M12319	1	Elec. Connector Housing	EQRL Controller, XA2_1
10	57M12708	1	Elec. Connector Accessory	-
10	57M8135	6	Elec. Connector Terminal	Cavity 1 - 6
10	57M8568	6	Elec. Connector Seal	Cavity 1 - 6
11	57M8420	5	Elec. Connector Seal	Cavity 12 - 16
11	57M10081	11	Elec. Connector Cable Seal	Cavity 1 - 11
11	57M12787	1	Elec. Connector Accessory	-
11	57M10021	1	Elec. Connector Housing	EQRL Controller, XA2_2
11	57M8135	11	Elec. Connector Terminal	Cavity 1 - 11
12	57M9776	1	Elec. Connector Housing	CAN Terminator, XR1
12	57M11134	1	Elec. Connector Housing	-
12	57M9813	2	Elec. Connector Terminal	Cavity 1 - 2
13	57M10609	1	Elec. Connector Housing	Flex Box Controller, XA5_1
13	57M10604	1	Elec. Connector Housing	-
13	57M10514	1	Elec. Connector Terminal	Cavity A3
13	57M10330	9	Elec. Connector Terminal	Cavity A4, B1, B2, B3, B4, C3, D4, E1, E2
13	57M10331	3	Elec. Connector Terminal	Cavity G4, H1, H2
13	57M10333	14	Elec. Connector Cavity Plug	Cavity A1, A2, C1, C2, C4, D1, D2, D3, E3, E4, F1, F2, F3, F4
13	57M10334	5	Elec. Connector Cavity Plug	Cavity G1, G2, G3, H3, H4
14	57M10330	13	Elec. Connector Terminal	Cavity A3, B3, C4, E2, E3, F2, F4, H4, J2, J4, K1, K2, K3
14	57M10334	1	Elec. Connector Cavity Plug	Cavity L3
14	57M10333	16	Elec. Connector Cavity Plug	Cavity A2, A4, B2, B4, C1, C2, C3, D1, D3, E1, G2, G3, H1, H3, J1, J3
14	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M3, M4
14	57M10514	11	Elec. Connector Terminal	Cavity A1, B1, D2, D4, E4, F1, F3, G1, G4, H2, K4
14	57M10615	1	Elec. Connector Housing	Flex Box Controller, XA5_2
15	57M10606	1	Elec. Connector Housing	Flex Box Controller, XA5_3
15	57M10604	1	Elec. Connector Housing	-
15	57M10330	7	Elec. Connector Terminal	Cavity A3, A4, B3, B4, C2,C4, D4
15	57M10514	2	Elec. Connector Terminal	Cavity E1, E4
15	57M10333	14	Elec. Connector Cavity Plug	Cavity A1, A2, B1, B2, C1, C3, D1, D2, E2, E3, F1, F2, F3, F4
15	57M10334	8	Elec. Connector Cavity Plug	Cavity G1, G2, G3, G4, H1, H2, H3, H4
16	57M9183	1	Elec. Connector Housing	Service Advisor Connector, XP1
16	57M8164	4	Elec. Connector Terminal	Caviity A - D
16	R78069	5	Elec. Connector Cavity Plug	Cavity E - J
17	57M9182	1	Nut	-
18	57M9358	1	Elec. Connector Accessory	-
