Front Console Wiring Harness, PowrReverser™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7690	3	Fuse	15 A
2	57M12319	1	Elec. Connector Housing	Hazard Switch
3	57M7255	1	Elec. Connector Housing	Power Shuttle Pot
4	57M7985	1	Electrical Connector Assy	Roll Mode Switch
5	57M7840	1	Elec. Connector Housing	FNR Switch
6	57M7260	1	Elec. Connector Housing	Clutch Pot
7	57M7260	1	Elec. Connector Housing	Instrument Cluster
8	57M12332	1	Elec. Connector Accessory	Load Center 1, Fuse Box
9	57M12332	1	Elec. Connector Accessory	Load Center 2, Relay Box
10	57M7688	3	Fuse	5 A
11	57M7261	1	Elec. Connector Housing	Brake Pedal Switch
12	57M7261	1	Elec. Connector Housing	Instrument Cluster
13	RE180265	1	Diode	-
14	57M7170	1	Elec. Connector Housing	Key Switch
15	57M7170	1	Elec. Connector Housing	Horn Switch
16	57M7170	1	Elec. Connector Housing	Horn Switch
17	57M10016	1	Elec. Connector Housing	Light Switch
18	57M9956	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch
19	57M8484	1	Elec. Connector Housing	Instrument Cluster
20	57M7262	1	Elec. Connector Housing	Instrument Cluster
21	L39317	1	Elec. Connector Terminal	Electronic Flasher
22	57M10993	1	Elec. Connector Housing	Trailer Power Relay
23	57M10497	1	Elec. Connector Housing	Audible Alarm
24	57M8616	1	Elec. Connector Housing	Console to Engine Interconnect
25	57M10369	1	Elec. Connector Housing	Console to Rear Interconnect
26	57M7689	8	Fuse	10 A
27	19M7865	1	Screw	M8 X 16
28	57M7254	1	Elec. Connector Housing	Brake Oil Presence Switch
29	57M12322	2	Elec. Connector Terminal	Ground
30	57M13563	7	Elec. Connector Accessory	-
31	57M14424	1	Elec. Connector Housing	-
32	57M10275	1	Elec. Connector Accessory	-
33	RE262484	1	Diode	-
34	57M11952	1	Elec. Connector Accessory	-
35	SU289691	2	Half Clamp	-
36	19M7775	5	Screw	M6 X 16
37	SJ25992	1	Wiring Harness	Console Wiring Harness
38	SJ19202	1	Wiring Harness	Alarm
39	21M6070	5	Screw	M5 X 16
40	RE68327	1	Relay	-
41	14M7272	2	Nut	M6
42	RE224163	1	Alarm System	-
43	SJ15809	7	Relay	-
44	57M12322	1	Elec. Connector Terminal	Fuel Tank Ground
45	SJ28897	1	Pressure Switch	Brake
46	19M7560	2	Cap Screw	M6 X 16
47	AL202581	1	Relay Module	Warning Flasher
48	SJ29825	1	Relay	Start Relay With Diode
49	57M8996	2	Elec. Connector Terminal	-
50	57M12152	2	Elec. Connector Accessory	-
51	19M7864	1	Screw	M8 X 12
52	R286317	1	Bracket	Fuse Box Mounting
53	R286316	1	Bracket	Fuse Box Mounting
54	SJ17000	1	Bracket	-
55	57M8623	1	Fuse	25 A
56	L78202	1	Elec. Connector Housing	-
57	57M12318	2	Elec. Connector Terminal	-
58	57M8903	10	Clip	-
59	57M8163	1	Fuse	30 A
60	57M7691	5	Fuse	20 A

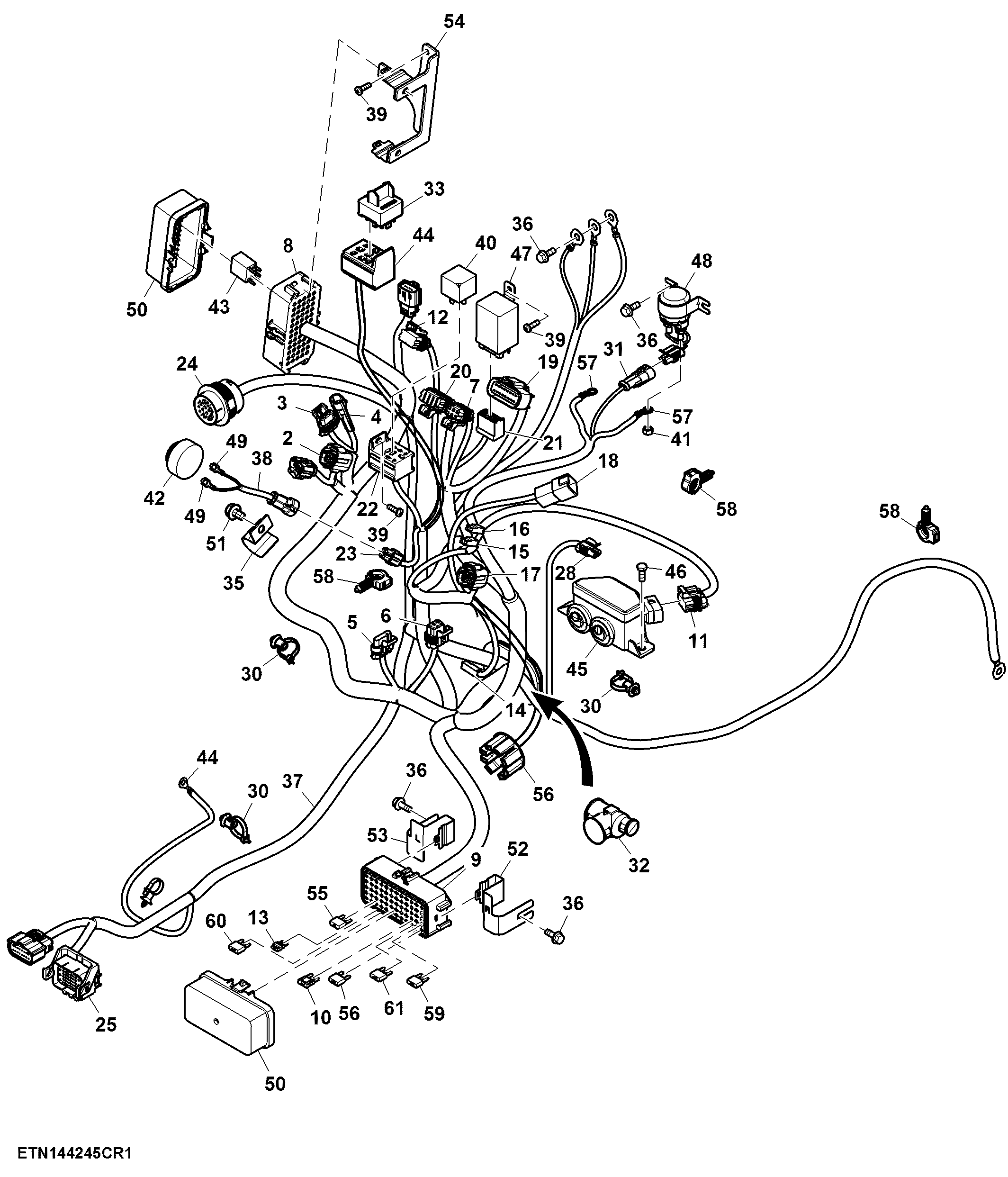

Front Console Wiring Harness, PowrReverser™
