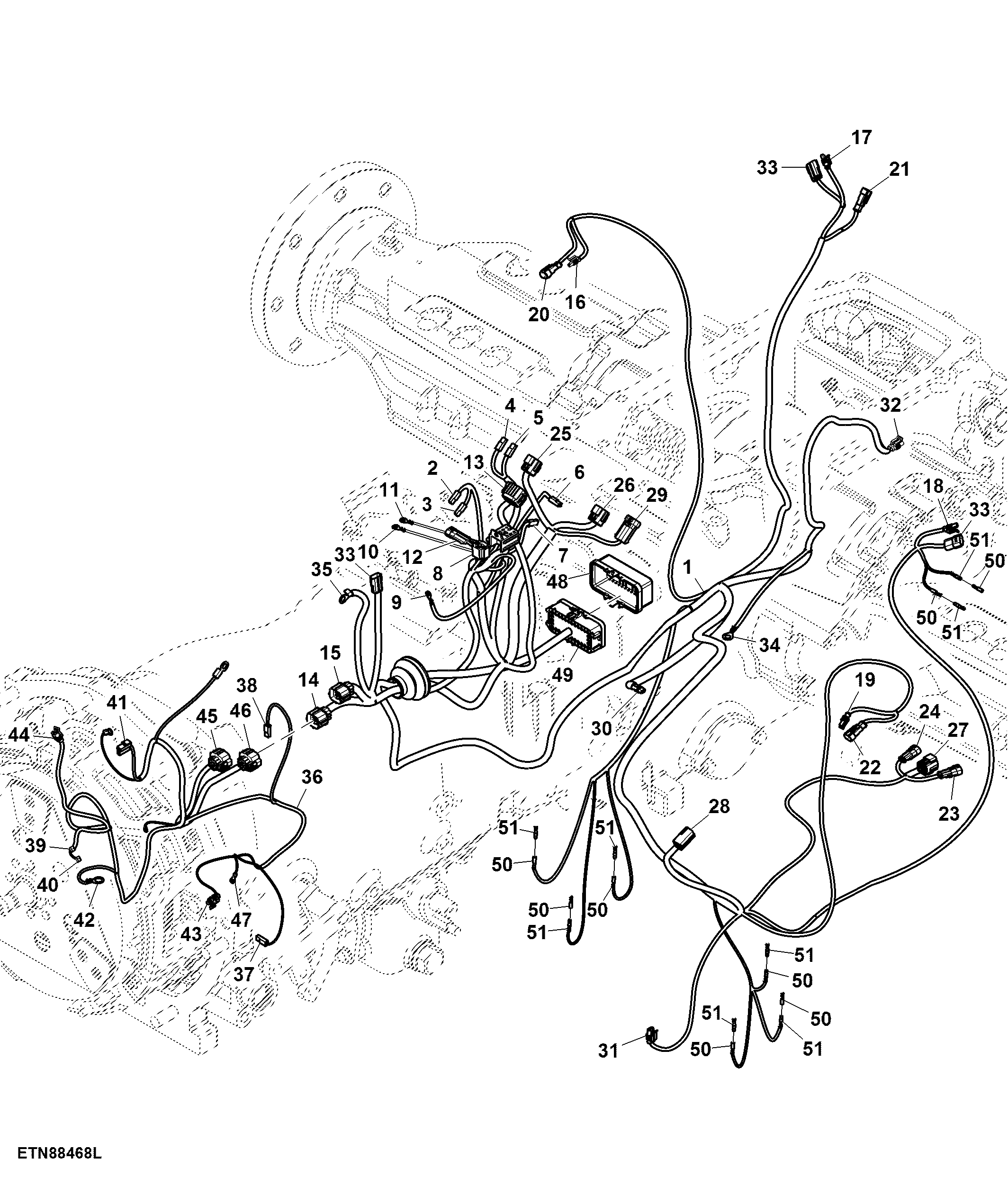

Front and Rear Wiring Harness Connectors (103897 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ34942	1	Wiring Harness	Rear
2	57M7170	1	Elec. Connector Housing	Left Brake Switch
3	57M7170	1	Elec. Connector Housing	Left Brake Switch
4	57M7170	1	Elec. Connector Housing	Horn Switch
5	57M7170	1	Elec. Connector Housing	Horn Switch
6	57M7170	1	Elec. Connector Housing	Body Earthing
7	57M7170	1	Elec. Connector Housing	Key Switch
8	57M10002	1	Elec. Connector Housing	Flasher
9	57M10067	1	Elec. Connector Terminal	Ground
10	57M10067	1	Elec. Connector Terminal	Start Relay
11	57M10067	1	Elec. Connector Terminal	Start Relay
12	57M7256	1	Elec. Connector Housing	Start Relay
13	57M10021	1	Elec. Connector Housing	Instrument
14	57M10990	1	Elec. Connector Housing	Wiring Harness Front 1
15	57M10990	1	Elec. Connector Housing	Wiring Harness Front 2
16	57M10020	1	Elec. Connector Housing	Right Front Lamp
17	57M10020	1	Elec. Connector Housing	Right Rear Fender
18	57M10020	1	Elec. Connector Housing	Left Rear Fender
19	57M10020	1	Elec. Connector Housing	Blinker Left Front
20	57M10350	1	Elec. Connector Housing	Blinker Right Front
21	57M10350	1	Elec. Connector Housing	Rear Fender Flood Light, RH
22	57M10350	1	Elec. Connector Housing	Blinker Left Front
23	57M10350	1	Elec. Connector Housing	Trailer Connector 1
24	57M10350	1	Elec. Connector Housing	Traillor Flood Light
25	57M11162	1	Elec. Connector Housing	Hazard Switch
26	57M11162	1	Elec. Connector Housing	Light Switch
27	57M11162	1	Elec. Connector Housing	Trailler Connector 2
28	57M10017	1	Elec. Connector Housing	PTO Switch
29	57M7263	1	Elec. Connector Housing	Turn Signal
30	57M10504	1	Elec. Connector Housing	Neutral Switch
31	57M10992	1	Elec. Connector Housing	Park Switch
32	57M7937	1	Electrical Connector Assy	-
33	57M10019	1	Elec. Connector Housing	-
34	57M10074	1	Elec. Connector Terminal	Ground
35	57M12314	1	Elec. Connector Terminal	MaxiFuse Box
36	SJ14544	1	Wiring Harness	Front
37	57M7170	1	Elec. Connector Housing	Engine Oil Pressure Switch
38	57M7170	1	Elec. Connector Housing	Coolent Temperature Switch
39	57M7170	1	Elec. Connector Housing	Horn Switch
40	57M7170	1	Elec. Connector Housing	Horn Switch
41	57M10494	1	Elec. Connector Housing	Alternator
42	57M10075	1	Elec. Connector Terminal	Ground
43	57M10992	1	Elec. Connector Housing	Engine MPU
44	57M10992	1	Elec. Connector Housing	Air Filter Restriction
45	57M10987	1	Elec. Connector Housing	Wiring Harness Rear 2
46	57M10987	1	Elec. Connector Housing	Wiring Harness Rear 1
47	57M7053	1	Elec. Connector Terminal	Fuel Shut Off
48	57M10283	1	Elec. Connector Accessory	Fuse Box Cover
49	57M10991	1	Elec. Connector Housing	-
50	57M11707	8	Elec. Connector Terminal	-
51	57M11708	8	Elec. Connector Terminal	-

Front and Rear Wiring Harness Connectors (103897 - )
