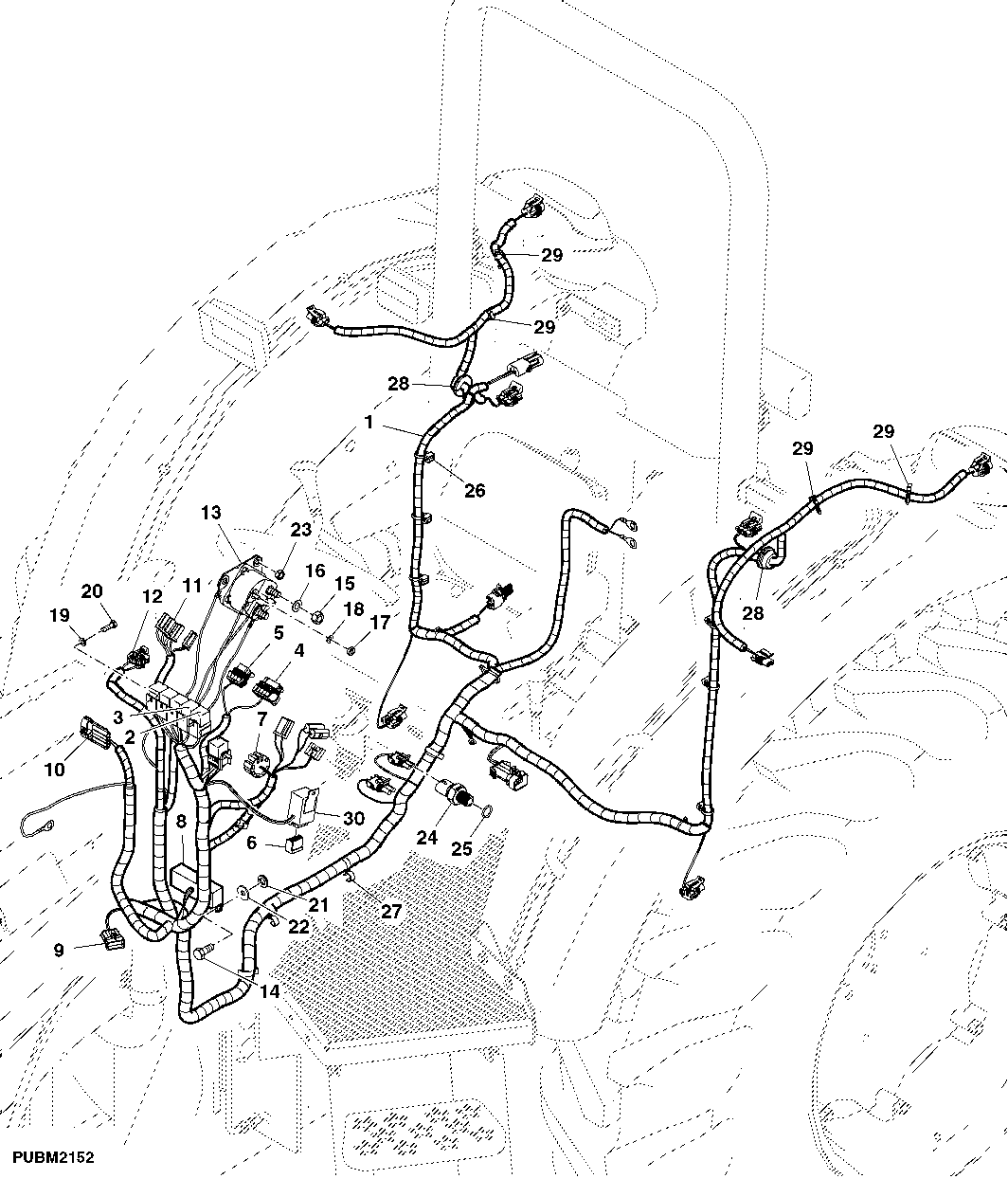

PLATFORM WIRING HARNESS (2/2) ( - 001392)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ15853	1	Wiring Harness	(With Injection pump Stanadyne and Fuel transfer pump)
1	SJ11085	1	Wiring Harness	(With Injection pump Stanadyne)
2	RE68327	1	Relay	Turn Left Relay
3	RE68327	1	Relay	Turn Right Relay
4	57M7262	1	Elec. Connector Housing	Instrument Panel
4	57M7281	1	Elec.Connect Locking Device	-
5	57M7260	1	Elec. Connector Housing	Insrtument Panel
5	57M7291	1	Electrical Connector Assy	-
6	L39317	1	Elec. Connector Terminal	Flasher Relay
7	L78202	1	Elec. Connector Housing	Key Switch
8	57M8056	1	Relay Module	Fuse Block
9	RE42196	1	Electrical Connector Assy	W / H Switch
9	57M7281	1	Elec.Connect Locking Device	-
10	57M7839	1	Electrical Connector Assy	W / H Hood
10	57M7469	1	Electrical Connector Assy	-
11	57M8815	1	Elec. Connector Housing	Light Switch
12	57M7261	1	Elec. Connector Housing	Brake SW
12	57M7296	1	Elec. Connector Accessory	-
13	RE164448	1	Starter Relay	-
14	19M6614	2	Cap Screw	M6 X 12
15	14H785	2	Nut	5/16"
16	12M7032	2	Lock Washer	8.400 mm
17	14H631	2	Nut	0.190"
18	12M7060	2	Washer	5.300 mm
19	24M7087	2	Washer	5.500 X 10 X 1 mm
20	19M7372	4	Cap Screw	M5 X 16
21	12M7006	4	Lock Washer	6 mm
22	24M7139	2	Washer	6.400 X 18 X 1.600 mm
23	14M7027	2	NUT	M6
24	RE12411	1	Switch	14 V , Neutral Start
25	R26448	1	O-Ring	-
26	L153804	1	Clip	SUB FORL101519
27	R215302	5	Clip	-
28	CQ26267	2	Grommet	-
29	H141394	4	Clip	-
30	AL202032	1	Flasher	SUB FOR AL32891

PLATFORM WIRING HARNESS (2/2) ( - 001392)
