Cab Wiring Harness, SyncShuttle™, Optional (6/6)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ23782	1	Wiring Harness	Rear
2	SJ23778	1	Wiring Harness	Console
3	03M7183	1	Bolt	M8 X 16
4	14M7166	1	Lock Nut	M8
5	14M7298	21	Flange Nut	M8
6	R281023	1	Hose	LGTH = 195 mm
7	37M7059	4	Screw	M5 X 12
8	CB01483609	8	Tie Band	-
9	57M7919	1	Elec. Connector Housing	Service Advisor
10	57M9432	11	Clamp	-
11	R107991	13	Clamp	-
12	R233410	2	Grommet	-
13	RE217864	1	Cap	-
14	57M7254	1	Elec. Connector Housing	Horn
14	57M7289	1	Elec.Connect Locking Device	-
14	R104846	2	Elec. Connector Terminal	Cavity A, B
14	57M7258	2	Elec. Connector Seal	Cavity A, B
15	Z53033	3	Grommet	-
16	57M8902	10	Clip	-
17	57M8824	4	Elec. Connector Accessory	-
18	57M9437	1	Clamp	-
19	57M8903	2	Clip	-
20	SU37693	1	Bracket	-
21	19M7775	2	Screw	M6 X 16
22	SJ28409	1	Wiring Harness	Cab Battery
23	SJ12326	2	Jumper	-
24	57M7256	2	Elec. Connector Housing	ROPS Lamp, 01
24	57M7258	4	Elec. Connector Seal	Cavity A, B
24	R104919	4	Elec. Connector Terminal	Cavity A, B
25	57M7289	2	Elec.Connect Locking Device	-
26	57M7257	2	Elec. Connector Housing	Harness, 02
26	R104919	4	Elec. Connector Terminal	Cavity B, C
26	57M7258	4	Elec. Connector Seal	Cavity B, C
27	57M7290	2	Elec. Connector Accessory	-
28	RE49727	1	Horn	-

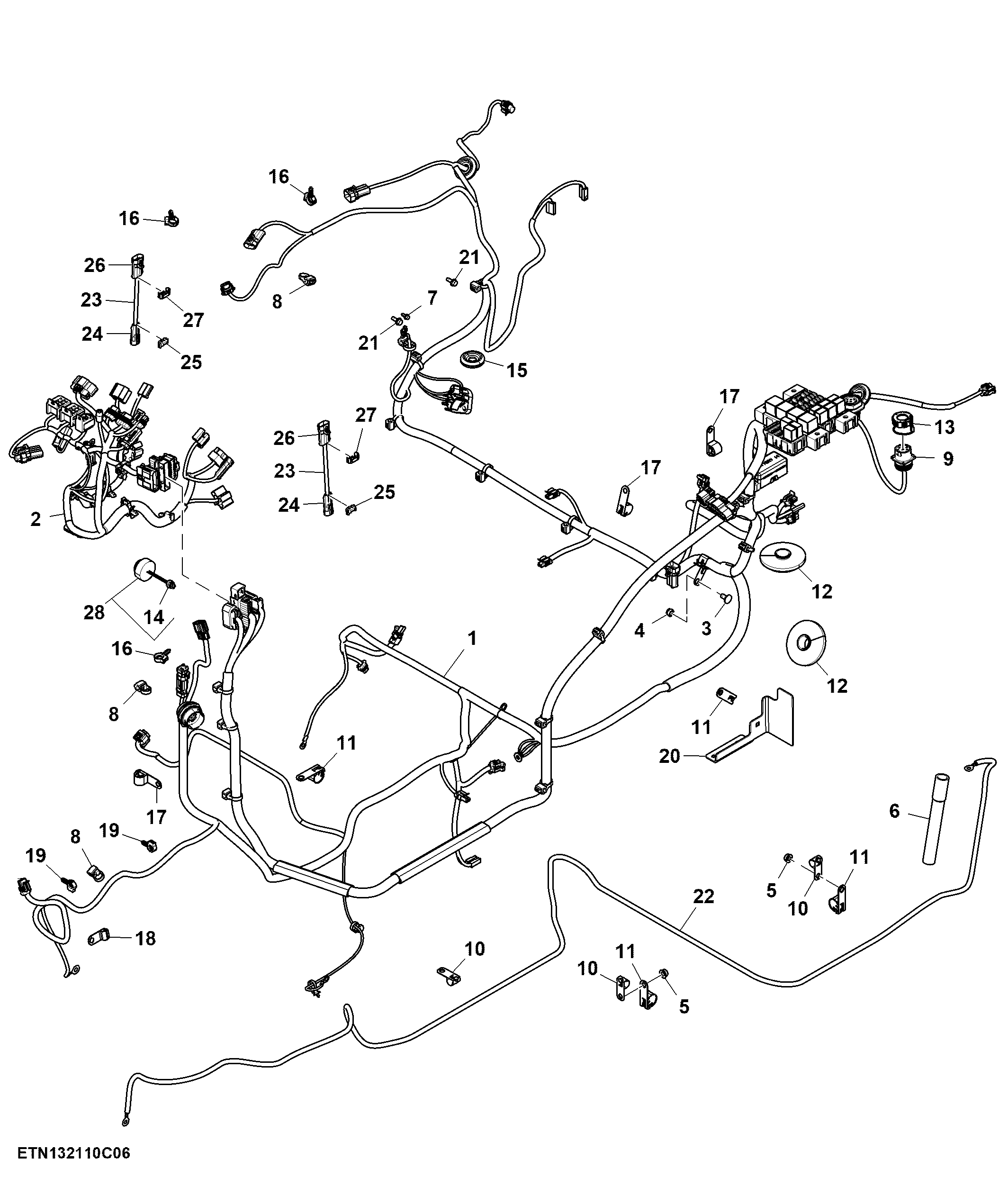

Cab Wiring Harness, SyncShuttle™, Optional (6/6)
