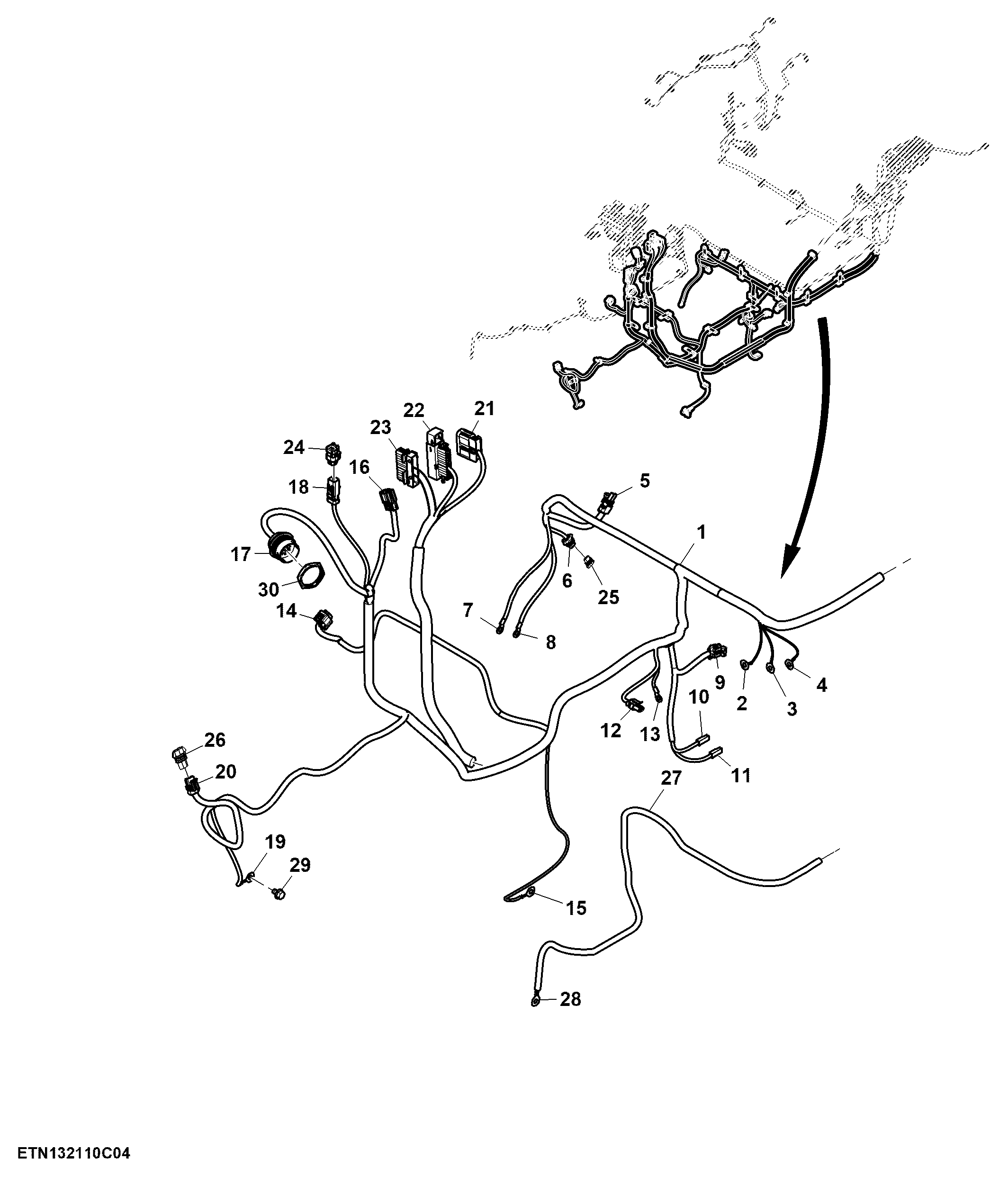

Cab Wiring Harness, SyncShuttle™, Optional (4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ23782	1	Wiring Harness	Rear
2	57M8821	1	Elec. Connector Terminal	Cab Ground 1, 27A
3	57M8865	1	Elec. Connector Terminal	Cab Ground 2, 27B
4	57M9535	1	Elec. Connector Terminal	Cab Ground 3, 27C
5	RE12363	1	Electrical Connector Assy	Neutral Start Switch, 28
5	57M7251	2	Elec. Connector Terminal	Cavity A, B
5	57M9219	2	Elec. Connector Seal	Cavity A, B
6	57M7254	1	Elec. Connector Housing	Loader Joystick, 29
6	57M7289	1	Elec.Connect Locking Device	-
6	R104846	2	Elec. Connector Terminal	Cavity A, B
6	57M9215	2	Elec. Connector Seal	Cavity A, B
7	57M8821	1	Elec. Connector Terminal	Transmission Ground 1, 30A
8	57M8865	1	Elec. Connector Terminal	Transmission Ground 2, 30B
9	57M7255	1	Elec. Connector Housing	Wheel Speed Sensor, 31
9	57M7290	1	Elec. Connector Accessory	-
9	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
9	57M9215	3	Elec. Connector Seal	Cavity A, B, C
10	57M8815	1	Elec. Connector Housing	MFWD (A), 32A
10	57M9199	1	Elec. Connector Terminal	Cavity A
11	57M8815	1	Elec. Connector Housing	MFWD (C), 32B
11	57M9199	1	Elec. Connector Terminal	Cavity A
12	57M10497	1	Elec. Connector Housing	Fuel Level Sender, 33
12	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
12	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
13	57M9535	1	Elec. Connector Terminal	Fuel Tank Chassis Ground, 34
14	57M7953	1	Electrical Connector Assy	Foot Throttle, 35
14	57M11548	3	Elec. Connector Terminal	Cavity 1, 2, 4
14	57M7955	3	Elec. Connector Seal	Cavity 1, 2, 4
15	57M8868	1	Elec. Connector Terminal	Fuel Tank Ground, 36
16	57M14095	1	Elec. Connector Housing	Hood Harness, 37
17	57M8616	1	Elec. Connector Housing	Engine Harness, 38
17	57M9061	1	Elec.Connect Locking Device	-
17	57M8035	1	Nut	-
17	57M11394	1	Elec. Connector Accessory	-
17	57M8260	3	Elec. Connector Terminal	Cavity 1, 2, 3
17	N282069	16	Elec. Connector Terminal	Cavity 5, 6, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 25, 26, 28
18	57M9776	1	Elec. Connector Housing	Chassis CAN Terminator, 39
18	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
19	57M8865	1	Elec. Connector Terminal	Single Point Ground, 40
20	57M7309	1	Elec. Connector Housing	A/C Compressor Clutch, 41
20	57M7306	1	Elec.Connect Locking Device	-
20	57M7297	2	Elec. Connector Terminal	Cavity A, B
20	57M9219	2	Elec. Connector Seal	Cavity A, B
21	57M8281	1	Elec. Connector Housing	Front Console 3, 24
21	57M11996	1	Elec. Connector Accessory	-
21	57M8308	4	Elec. Connector Terminal	Cavity A, H, J, S
21	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
21	57M9539	6	Elec. Connector Terminal	Cavity B, D, F, K, P, R
21	57M9223	6	Elec. Connector Seal	Cavity B, D, F, K, P, R
21	57M8301	2	Elec. Connector Terminal	Cavity L, N
21	57M8321	2	Elec. Connector Terminal	Cavity L, N
22	57M8515	11	Elec. Connector Seal	Cavity 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 14
22	57M8621	11	Elec. Connector Terminal	Cavity 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 14
22	57M7399	1	Elec. Connector Seal	Cavity 1
22	57M7259	1	Elec. Connector Seal	-
22	57M8943	1	Elec.Connect Locking Device	-
22	57M8944	1	Elec. Connector Housing	Front Console 2, 25
22	57M8942	1	Elec. Connector Terminal	Cavity 1
23	57M7399	2	Elec. Connector Seal	Cavity 4, 21
23	57M9158	2	Elec. Connector Terminal	Cavity 4, 21
23	57M8515	16	Elec. Connector Seal	Cavity 1, 2, 3, 5, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 20, 23
23	57M8732	16	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 20, 23
23	57M8943	1	Elec.Connect Locking Device	-
23	57M8070	1	Elec. Connector Housing	Front Console 1, 26
24	57M9772	1	Elec. Connector Housing	Dust Cap
25	57M7256	1	Elec. Connector Housing	Dust Cap, 29A
25	57M7289	1	Elec.Connect Locking Device	-
26	57M7304	1	Elec. Connector Housing	Dust Cap, 41A
26	57M7306	1	Elec.Connect Locking Device	-
27	SJ28409	1	Wiring Harness	Cab Battery
28	57M8866	1	Elec. Connector Terminal	Cab Harness Power, X02
29	19M7864	1	Screw	M8 X 12
30	57M8035	1	Nut	-

Cab Wiring Harness, SyncShuttle™, Optional (4/6)
