Открытый узел

Cab Wiring Harness, SyncShuttle™, Optional (1/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ23778	1	Wiring Harness	Console
2	57M7183	1	Elec. Connector Accessory	Turn Signal Switch, 18
3	57M7289	1	Elec.Connect Locking Device	-
3	R104919	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
3	57M7985	1	Electrical Connector Assy	Roll Mode Switch, 19
4	57M7896	1	Electrical Connector Assy	High / Low Headlight Switch, 21
4	57M7511	3	Elec. Connector Terminal	Cavity T, W, Y
5	57M8758	1	Elec. Connector Housing	Light Switch, 17
5	57M8757	4	Elec.Connect Locking Device	-
5	57M8759	1	Elec.Connect Locking Device	-
5	57M7429	3	Elec. Connector Terminal	Cavity 1, 4, B
5	57M7511	2	Elec. Connector Terminal	Cavity 2, 3
6	57M7289	1	Elec.Connect Locking Device	-
6	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M7495	2	Elec. Connector Terminal	Cavity A, B
6	57M7256	1	Elec. Connector Housing	Audible Alarm, 22
7	57M9196	1	Elec. Connector Terminal	Start Relay C (K18), 23A
8	57M9196	1	Elec. Connector Terminal	Start Relay D (K18), 23B
9	57M10497	1	Elec. Connector Housing	Start Relay Coil (K18), 23C
9	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
9	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
10	57M8868	1	Elec. Connector Terminal	Chassis Ground, 24
11	RE46735	1	Electrical Connector Assy	Front Wiper Switch, 27
11	57M7429	4	Elec. Connector Terminal	Cavity B, 1, 2, 3
11	57M7511	3	Elec. Connector Terminal	Cavity L, P, 4
12	57M9199	2	Elec. Connector Terminal	Cavity 1, 2
12	R77480	1	Electrical Connector Assy	Horn Switch, 26
13	L78202	1	Elec. Connector Housing	Key Switch, 25
14	57M8156	1	Elec. Connector Housing	Cab Harness 3, 03
14	57M11996	1	Elec. Connector Accessory	-
14	57M8304	4	Elec. Connector Terminal	Cavity A, H, J, S
14	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
14	57M8299	6	Elec. Connector Terminal	Cavity B, D, F, K, P, R
14	57M9223	6	Elec. Connector Seal	Cavity B, D, F, K, P, R
14	57M8300	2	Elec. Connector Terminal	Cavity L, N
14	57M8321	2	Elec. Connector Terminal	Cavity L, N
15	57M7259	1	Elec. Connector Seal	-
15	57M8515	12	Elec. Connector Seal	Cavity 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 14
15	57M8732	12	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 14
15	57M8076	1	Elec. Connector Terminal	-
15	57M8943	1	Elec.Connect Locking Device	-
15	57M8070	1	Elec. Connector Housing	Cab Harness 2, 02
16	57M8944	1	Elec. Connector Housing	Cab Harness 1, 01
16	57M8943	1	Elec.Connect Locking Device	-
16	57M8621	15	Elec. Connector Terminal	Cavity 1, 2, 3, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 20, 23
16	57M8515	15	Elec. Connector Seal	Cavity 1, 2, 3, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 20, 23
16	57M8942	3	Elec. Connector Terminal	Cavity 4, 5, 21
16	57M7399	3	Elec. Connector Seal	Cavity 4, 5, 21
17	SJ25589	1	Relay	12 V, Intermittent Duty Start
18	19M7774	2	Screw	M6 X 12
19	37M7361	1	Screw	M6 X 16
20	12M7122	1	Lock Washer	8.400 mm
21	14M7303	1	Flange Nut	M6

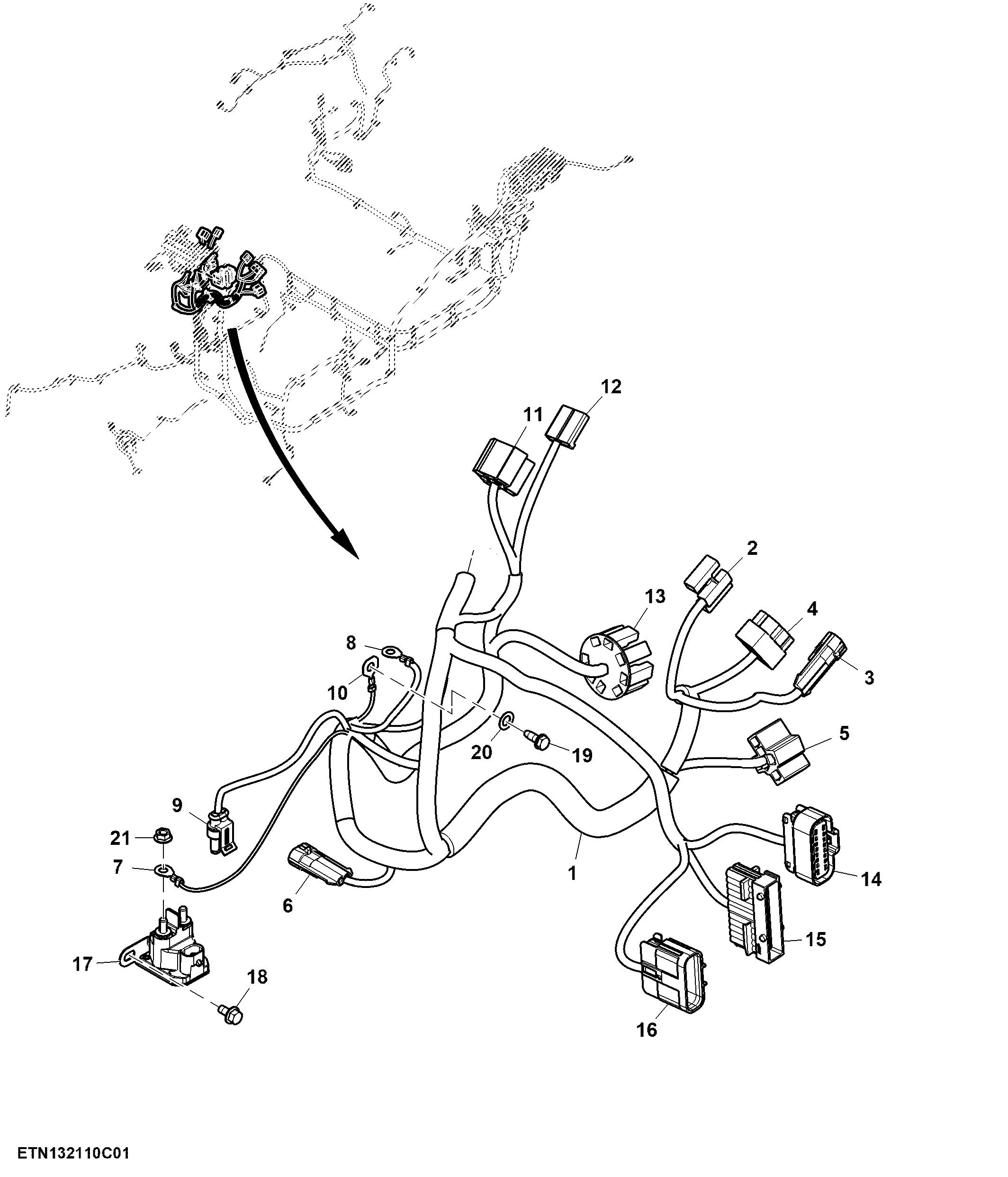

Cab Wiring Harness, SyncShuttle™, Optional (1/6)

Нет текстового описания
