Wiring Harness, 9X3 Transmission, Cab (3/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ28982	1	Wiring Harness	Rear
2	57M7255	1	Elec. Connector Housing	Hand Brake SW 18
2	57M9215	2	Elec. Connector Seal	Cavity A, B
2	57M7290	1	Elec. Connector Accessory	-
2	57M7494	2	Elec. Connector Terminal	Cavity A, B
3	57M7260	1	Elec. Connector Housing	Implement Adjustment Switch 29
3	57M7291	1	Electrical Connector Assy	-
3	R104846	6	Elec. Connector Terminal	Cavity A-F
3	57M7258	6	Elec. Connector Seal	Cavity A-F
4	57M7349	1	Elec. Connector Accessory	LT Tail/Brake Turn Lamp 28
4	57M7347	1	Elec. Connector Accessory	-
4	R104846	4	Elec. Connector Terminal	Cavity A-D
4	57M9215	4	Elec. Connector Seal	Cavity A-D
5	57M7254	1	Elec. Connector Housing	LT License Plate Lamp 27
5	57M7289	1	Elec.Connect Locking Device	-
5	R104846	2	Elec. Connector Terminal	Cavity A, B
5	57M7258	2	Elec. Connector Seal	Cavity A, B
6	57M7289	1	Elec.Connect Locking Device	-
6	57M7256	1	Elec. Connector Housing	Dust Cap 27A
7	SU39955	1	Label	-
8	Z53033	1	Grommet	-
9	57M9183	1	Elec. Connector Housing	Service Advisor 26
9	N282069	2	Elec. Connector Terminal	Cavity A, B
9	57M8164	2	Elec. Connector Terminal	Cavity C, D
10	57M9182	1	Nut	-
11	57M7919	1	Elec. Connector Housing	-
12	RE217864	1	Cap	-
13	57M8749	4	Elec. Connector Accessory	-
14	19M8649	4	Screw	M6 X 20
15	RE68327	4	Relay	-
16	57M8853	10	Relay	-
17	57M8750	1	Elec. Connector Housing	-
18	57M8756	4	Elec. Connector Accessory	-
19	57M9199	1	Elec. Connector Terminal	Cavity 1
19	57M8815	1	Elec. Connector Housing	Flood Light 24
20	57M7260	1	Elec. Connector Housing	Trailer Jumper 1 23
20	57M7291	1	Electrical Connector Assy	-
20	R104846	6	Elec. Connector Terminal	Cavity A-F
20	57M7258	6	Elec. Connector Seal	Cavity A-F
21	57M7309	1	Elec. Connector Housing	Trailer Jumper 2 22
21	57M7306	1	Elec.Connect Locking Device	-
21	57M7299	2	Elec. Connector Terminal	Cavity A, B
21	57M9216	2	Elec. Connector Seal	Cavity A, B
22	R233410	1	Grommet	-
23	SU35718	1	Bracket	-
24	57M11167	1	Elec. Connector Housing	Roof Harness 2 32
24	57M8303	2	Elec. Connector Terminal	Cavity A, B
24	57M8323	2	Elec. Connector Terminal	Cavity A, B
25	RE48875	1	Junction Block	-
26	19M7774	2	Screw	M6 X 12
27	L173742	2	Screw	-
28	14M7265	2	Lock Nut	M5
29	57M8901	1	Elec. Connector Terminal	Fused Power 3
30	57M8416	1	Elec. Connector Housing	Roof Wiper Harness 30
30	57M7469	1	Electrical Connector Assy	-
30	R104846	4	Elec. Connector Terminal	Cavity A-D
30	57M9215	4	Elec. Connector Seal	Cavity A-D
31	57M8279	1	Elec. Connector Housing	Roof Harness I 31
31	57M11955	1	Elec. Connector Accessory	-
31	57M8304	5	Elec. Connector Terminal	Cavity A, F, G, L, N
31	57M8324	5	Elec. Connector Terminal	Cavity A, F, G, L, N
31	57M8303	9	Elec. Connector Terminal	Cavity B-E, J, K, M, P, S
31	57M8323	9	Elec. Connector Terminal	Cavity B-E, J, K, M, P, S
31	57M8302	1	Elec. Connector Terminal	Cavity H
31	57M8322	1	Elec. Connector Terminal	Cavity H

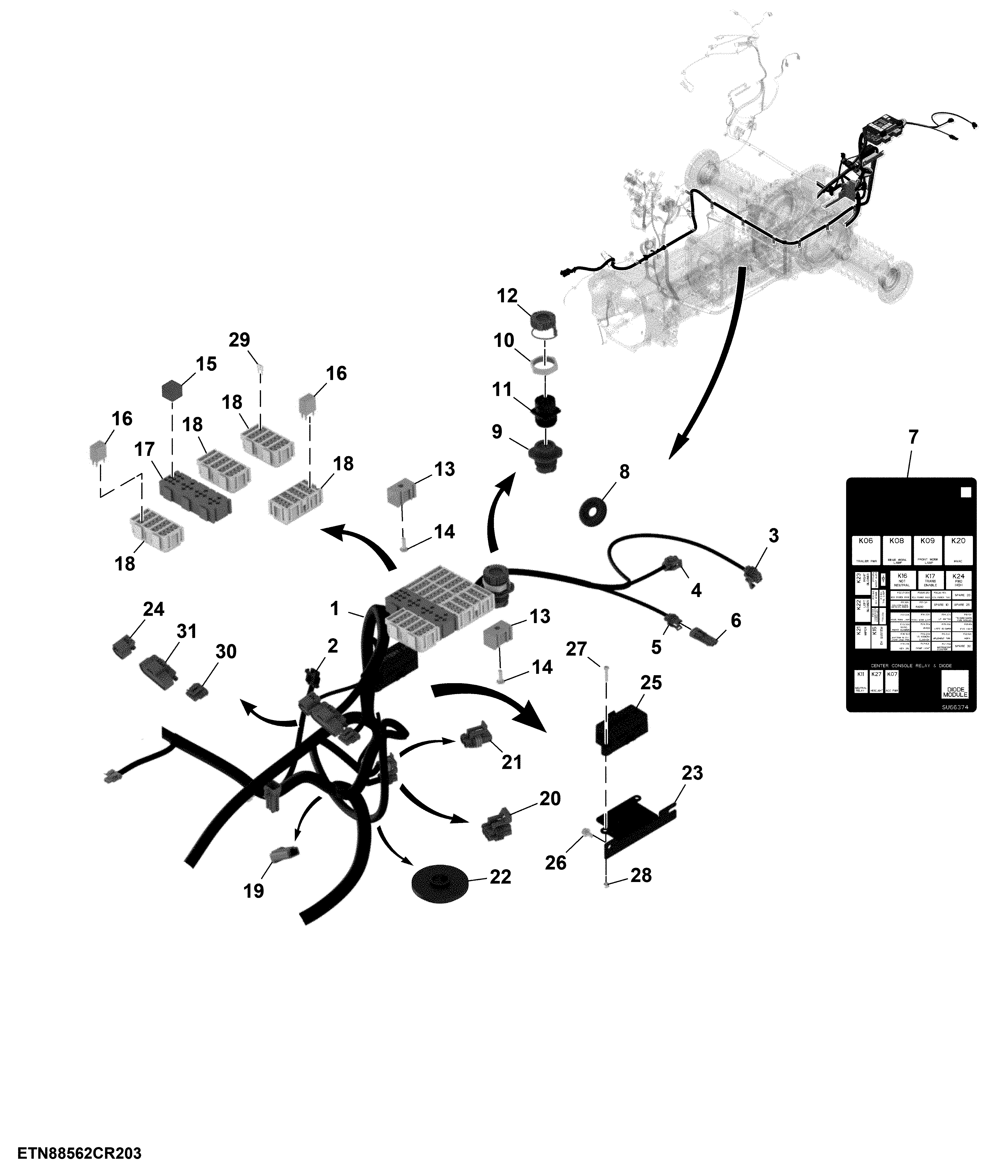

Wiring Harness, 9X3 Transmission, Cab (3/6)
