Открытый узел

Control Valve and Hydraulic Hoses, Motor Control, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10345	1	Control Valve	-
2	T77857	10	O-Ring	-
3	38H5027	5	Elbow Fitting	-
4	51M7045	5	O-Ring	19.300 X 2.200 mm
5	38H5071	1	Elbow Fitting	-
6	51M7043	3	O-Ring	15.300 X 2.200 mm
7	R105388	4	Tie Band	-
8	RE285941	2	Hydraulic Hose	Pressure Line
9	38H5003	1	Adapter Fitting	-
10	38H5069	1	Tee Fitting	-
11	T26209	1	Ring	-
12	SJ24587	1	Hydraulic Hose	Inlet Port of Power Beyond to Mid Mount
13	R44302	6	Tie Band	-
14	RE275599	1	Hydraulic Hose	Power Beyond to Mid Mount SCV
15	RE285942	1	Hydraulic Hose	Bypass Line
16	SJ28265	1	Harness Kit	-
17	R140235	1	Adapter Fitting	-
18	RE72605	1	Switch	Temperature
19	RE68327	1	Relay	-
20	RE72671	1	Switch	Rocker
21	RE72672	1	Indicator Lamp	-
22	R132094	1	Bulb	12 V
23	R132486	1	Lens	-
24	RE72674	1	Box	-
25	RE283375	1	Wiring Harness	INCLUDES (2) 57M8903, 57M10067, 57M7254 AND 57M10497
26	57M8903	1	Clip	-
27	SU290495	1	O-Ring	-
28	SU46463	3	Bushing	-
29	SU47137	1	Plate	-
30	19M7785	2	Screw	M10 X 25
31	19M7868	2	Screw	M8 X 30
32	SU48315	1	Bracket	Motor Control
33	19M7803	1	Screw	M8 X 70
34	14M7298	5	Flange Nut	M8
35	19M8318	2	Screw	M8 X 45
36	RE322903	2	Hyd. Quick-Connect Coupler	-
37	A15899	2	Plug	-
38	19M7867	2	Screw	M8 X 25
39	SU46461	1	Bracket	Power Beyond Support
40	19M8977	2	Screw	M10 X 85
41	19M8528	2	Screw	M10 X 55
42	14M7416	2	Flange Nut	M8
43	SU51662	2	Bushing	-
44	R117879	2	Bushing	-
45	14M7296	2	Flange Nut	M10
46	RE71787	1	Valve	-
47	57M10350	1	Elec. Connector Housing	To 7-Pin Trailer
48	57M10067	1	Elec. Connector Terminal	-
49	57M7254	2	Elec. Connector Housing	Hydraulic Valve
50	57M10497	1	Elec. Connector Housing	To Rear Harness
51	RE49727	1	Horn	INCLUDES 57M7254
52	57M7257	1	Elec. Connector Housing	Power Beyond Switch
53	57M7256	1	Elec. Connector Housing	Horn
54	R139983	1	Grommet	-
55	U46662	6	Elec. Connector Terminal	-
56	SJ35747	1	Adapter Fitting	-

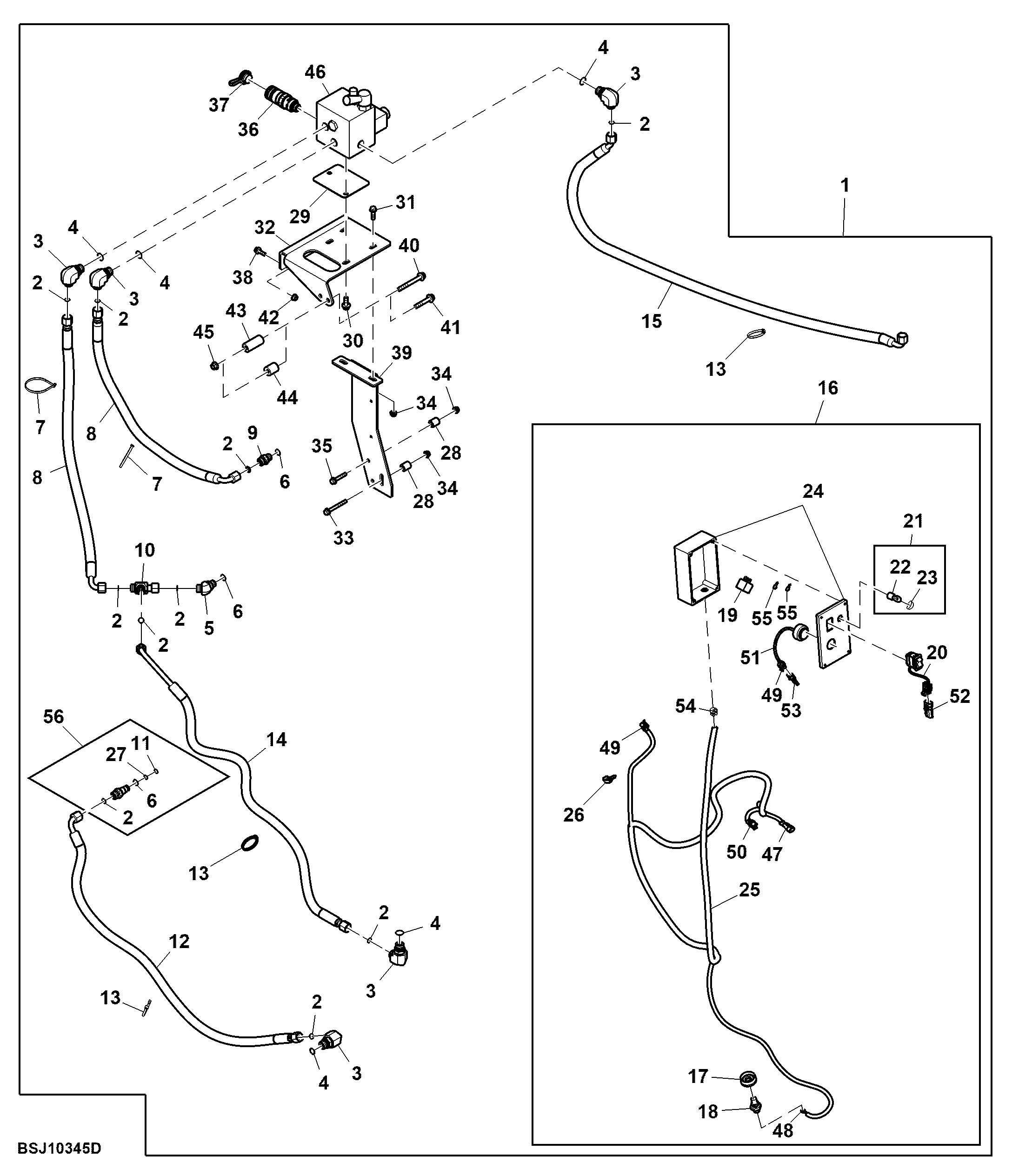

Control Valve and Hydraulic Hoses, Motor Control, Attachment
