Открытый узел

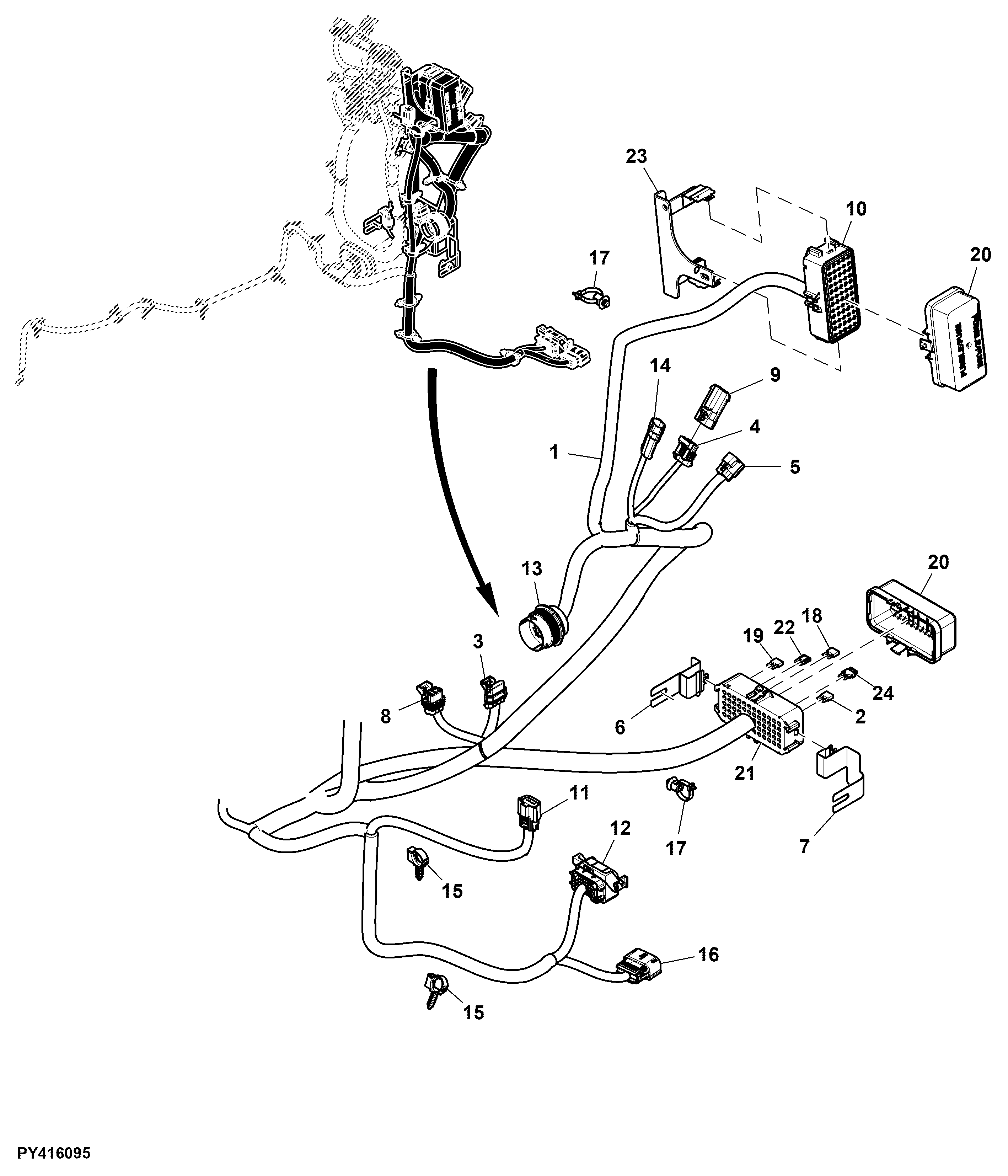

Console Wiring Harness, PowrReverser™ (2/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ38457	1	Wiring Harness	Console Harness
1	SJ26774	1	Wiring Harness	Console Harness
2	57M7691	5	Fuse	20 A
3	57M7840	1	Elec. Connector Housing	FNR Switch XS28
3	57M7469	1	Electrical Connector Assy	-
3	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
3	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
4	57M7255	1	Elec. Connector Housing	Power Shuttle Pot XB9
4	57M7290	1	Elec. Connector Accessory	-
4	57M7259	3	Elec. Connector Seal	-
4	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
4	57M9214	3	Elec. Connector Seal	Cavity A, B, C
5	57M10499	1	Elec. Connector Housing	Turn Switch XS14
5	57M9214	3	Elec. Connector Seal	Cavity A, B, C
5	57M8417	1	Elec.Connect Locking Device	-
5	57M8135	3	Elec. Connector Terminal	Cavity A, B, C
6	R286317	1	Bracket	RH
7	R286316	1	Bracket	LH
8	57M7260	1	Elec. Connector Housing	Clutch Pot XB8
8	57M7291	1	Electrical Connector Assy	-
8	57M7494	6	Elec. Connector Terminal	Cavity A-F
8	57M9214	6	Elec. Connector Seal	Cavity A-F
9	57M7257	1	Elec. Connector Housing	-
10	57M12332	1	Elec. Connector Accessory	Load Center 2 X4
10	57M8584	34	Elec. Connector Terminal	Cavity A1, A3, A4, A6, A7, A9, A10, A12, B1, B3, B4, B6, B7, B9, B10, B12, D1, D3, D4, D7, D7, D9, D10, D12, E1–E4, E6–E8, E10–E12
10	57M7400	34	Elec. Connector Seal	Cavity A1, A3, A4, A6, A7, A9, A10, A12, B1, B3, B4, B6, B7, B9, B10, B12, D1, D3, D4, D7, D7, D9, D10, D12, E1–E4, E6–E8, E10–E12
10	57M7401	26	Elec. Connector Cavity Plug	Cavity A2, A5, A8, A11, B2, B5, B8, B11, C1–C12, D2, D5, D8, D11, E5, E9
11	57M14095	1	Elec. Connector Housing	Console to Hood Interconnect XXC_4
11	57M12786	4	Elec. Connector Terminal	Cavity 1–4
12	57M7403	6	Elec. Connector Cavity Plug	Cavity 2, 4, 16, 25, 28, 32
12	57M7399	3	Elec. Connector Seal	Cavity 22, 29, 36
12	57M7401	2	Elec. Connector Cavity Plug	Cavity 1, 15
12	57M7402	10	Elec. Connector Cable Seal	Cavity 12–14, 24, 26, 27, 30, 31, 34, 35
12	57M8241	14	Elec. Connector Terminal	Cavity 3, 5–7, 9–11, 17–21, 23, 33
12	57M7400	1	Elec. Connector Seal	Cavity 8
12	57M10369	1	Elec. Connector Housing	Console to Rear Interconnect XXC_1
12	57M9532	1	Elec. Connector Terminal	Cavity 8
12	57M8425	24	Elec. Connector Terminal	Cavity 3, 5–7, 9–14, 17–21, 23, 24, 26, 27, 30, 31, 33–35
13	57M7771	6	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 27, 29
13	R78069	4	Elec. Connector Cavity Plug	Cavity 4, 8, 9, 17
13	57M8260	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M8164	15	Elec. Connector Terminal	Cavity 5, 6, 10, 11, 12, 13, 14, 15, 16, 19, 21, 22, 25, 26, 28
13	E73240	1	Nut	-
13	57M9226	1	Elec. Connector Seal	-
13	57M7765	1	Lock Washer	-
13	57M8616	1	Elec. Connector Housing	Console to Engine Interconnect XXC_3
14	57M7985	1	Electrical Connector Assy	Roll Mode Switch XS15
14	57M9712	1	Elec. Connector Accessory	-
14	57M7495	1	Elec. Connector Terminal	Cavity A
14	57M7252	1	Elec. Connector Terminal	Cavity B
14	57M9214	1	Elec. Connector Seal	Cavity A
14	57M9215	1	Elec. Connector Seal	Cavity B
15	57M8902	11	Clip	-
16	57M12786	7	Elec. Connector Terminal	Cavity 1–4, 6, 8, 9
16	57M10789	4	Elec. Connector Cable Seal	Cavity 13–16
16	57M14060	1	Elec. Connector Housing	Console Rear Interconnect XXC_2
17	57M13563	6	Elec. Connector Accessory	-
18	57M7689	10	Fuse	10 A
19	57M8163	2	Fuse	30 A
20	57M10283	2	Elec. Connector Accessory	Cover, Load Center 1
21	57M7690	7	Fuse	15 A
21	57M7401	14	Elec. Connector Cavity Plug	Cavity D9–D12, E3–E12
21	57M7400	28	Elec. Connector Seal	Cavity A11, A12, B3–B10, C1–C4, C6–C8, C12, D1–D8, E1, E2
21	57M7399	18	Elec. Connector Seal	Cavity A2–A10, B1, B2, B11, B12, C5, C9–C11,
21	57M8584	28	Elec. Connector Terminal	Cavity A11, A12, B3–B10, C1–C4, C6–C8, C12, D1–D8, E1, E2
21	57M8585	18	Elec. Connector Terminal	Cavity A2–A10, B1, B2, B11, B12, C5, C9–C11,
21	57M12152	1	Elec. Connector Accessory	-
21	57M12332	1	Elec. Connector Accessory	Load Center 1 X3
22	57M7688	3	Fuse	5 A
23	SJ17000	1	Bracket	Relay Box Mounting
24	RE180265	1	Diode	1V — 400V, 280 Series

Console Wiring Harness, PowrReverser™ (2/4)

Нет текстового описания
