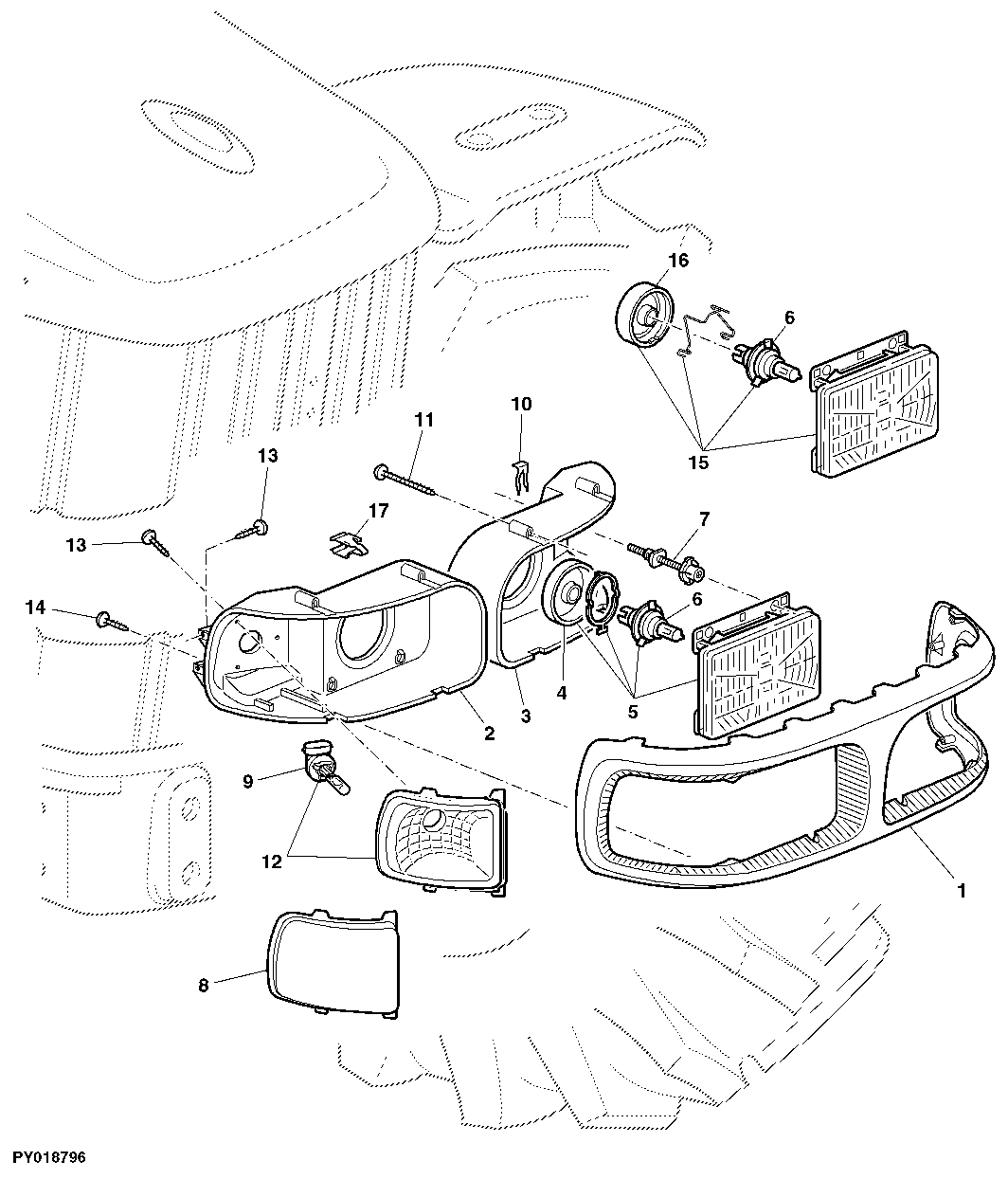

HEAD LIGHTS AND WORK LIGHTS (FRONT GRILL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L155768	1	Housing	-
2	L156158	1	Housing	RH
3	L156157	1	Housing	LH
4	L154128	2	Dust Shield	NLA; ORDER Z48280; H4
4	Z48280	1	Shield	-
5	AL152328	2	Headlight	H4
5	AL152330	2	Headlight	(FOR L.H.-TRAFFIC) H4
6	57M7166	2	Bulb	H4-12V, 60/55W
7	AZ47904	6	Adjusting Strap	-
8	L151848	1	Cover	LH
8	L151849	1	Cover	RH
9	57M7358	2	Bulb	12.8V/50W
10	L78984	6	Clip	-
11	37M7335	8	Screw	-
12	AL172568	1	Lamp	RH
12	AL172569	1	Lamp	LH
13	37M7179	1	Screw	-
14	37M7240	20	Screw	-
15	AL152329	2	Headlight	H4-FARM
15	AL152331	2	Headlight	(FOR L.H.-TRAFFIC) H4-FARM
16	L79050	1	Dust Shield	H4-FARM
17	L153768	2	Clip	-
..	AL202980	1	Light Kit	(KIT INCLUDES RH AND LH CORNER LIGHT) (KIT ALSO INCLUDES WIRING HARNESS, ROCKER SWITCH, FUSE &amp; RELAY) FI
..	AL159352	1	Floodlamp	(KIT INCLUDES RH AND LH CORNER LIGHT) (KIT ALSO INCLUDES WIRING HARNESS, ROCKER SWITCH, FUSE &amp; RELAY) FI, ORDER AL202564
..	AL202564	1	Light Kit	(KIT INCLUDES RH AND LH CORNER LIGHT) (KIT ALSO INCLUDES WIRING HARNESS, ROCKER SWITCH, FUSE &amp; RELAY) FI

HEAD LIGHTS AND WORK LIGHTS (FRONT GRILL)
